Front Fog Lamp Bulb Replacement (Encore)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

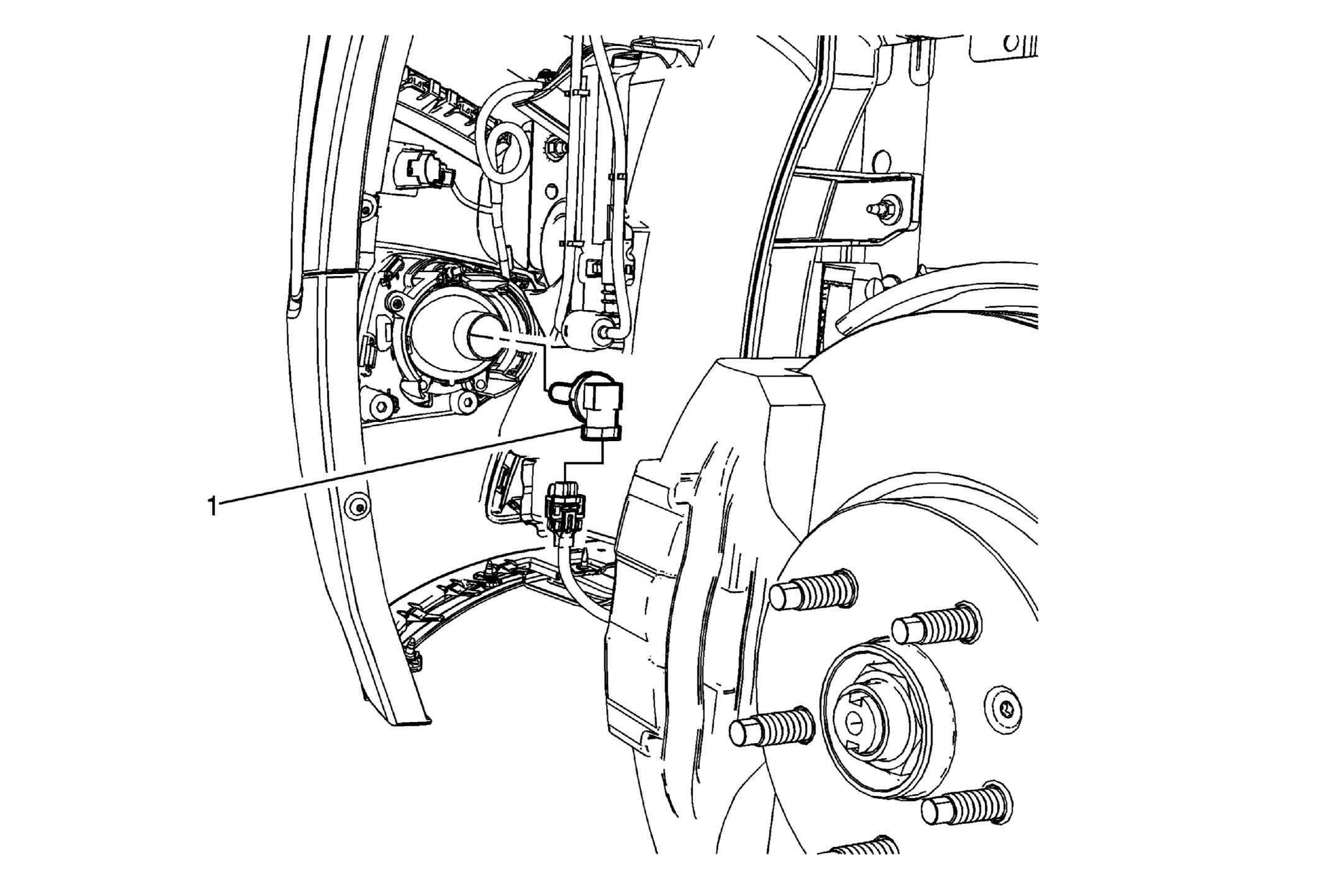

Fig 1: Front Fog Lamp Bulb (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure Remove either the left front or right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Encore) . Disconnect the electrical connector to the fog lamp bulb.
1	Front Fog Lamp Bulb Procedure Turn the fog lamp bulb socket counterclockwise and remove from the fog lamp housing.

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedure

Remove either the left front or right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Encore) .
Disconnect the electrical connector to the fog lamp bulb.

Front Fog Lamp Bulb
Procedure
Turn the fog lamp bulb socket counterclockwise and remove from the fog lamp housing.
