Camshaft Position Actuator Solenoid Valve Replacement

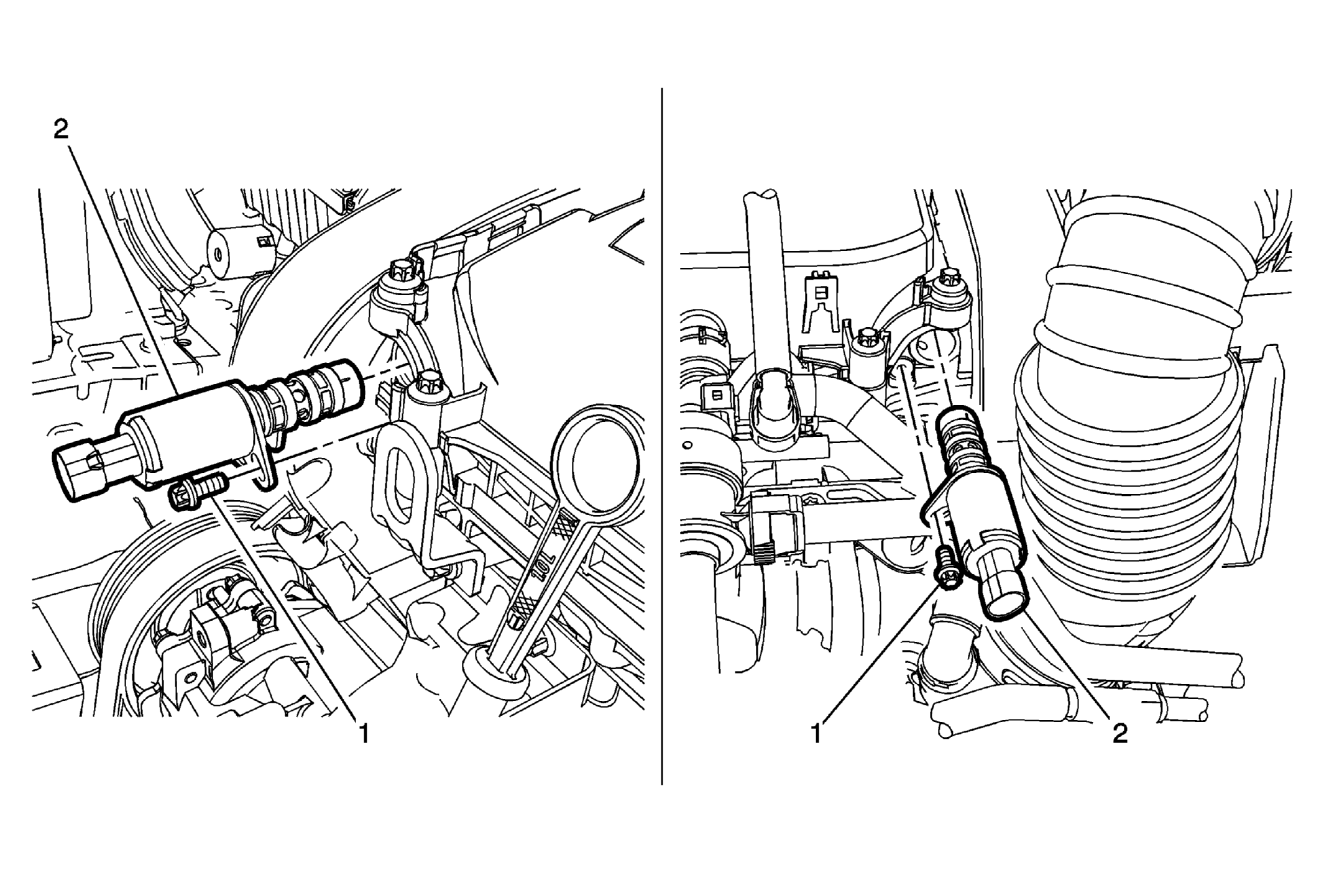

Fig 1: Camshaft Position Actuator Solenoid Valve
GM2506854Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Actuator Solenoid Valve Replacement

Callout Component Name
1 Camshaft Position Actuator Solenoid Valve Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
6 (53 lb in)
2 Camshaft Position Actuator Solenoid Valve (Qty: 2)
Procedure
Disconnect the electrical wiring harness connector from the camshaft position actuator solenoid valve.
NOTE:
  • Coat the camshaft position actuator solenoid valve seals with NEW engine oil.
  • Replace only the intake or the exhaust camshaft position actuator solenoid valve if necessary.
