Front of Engine Components (LEA)

Powertrain Component Views

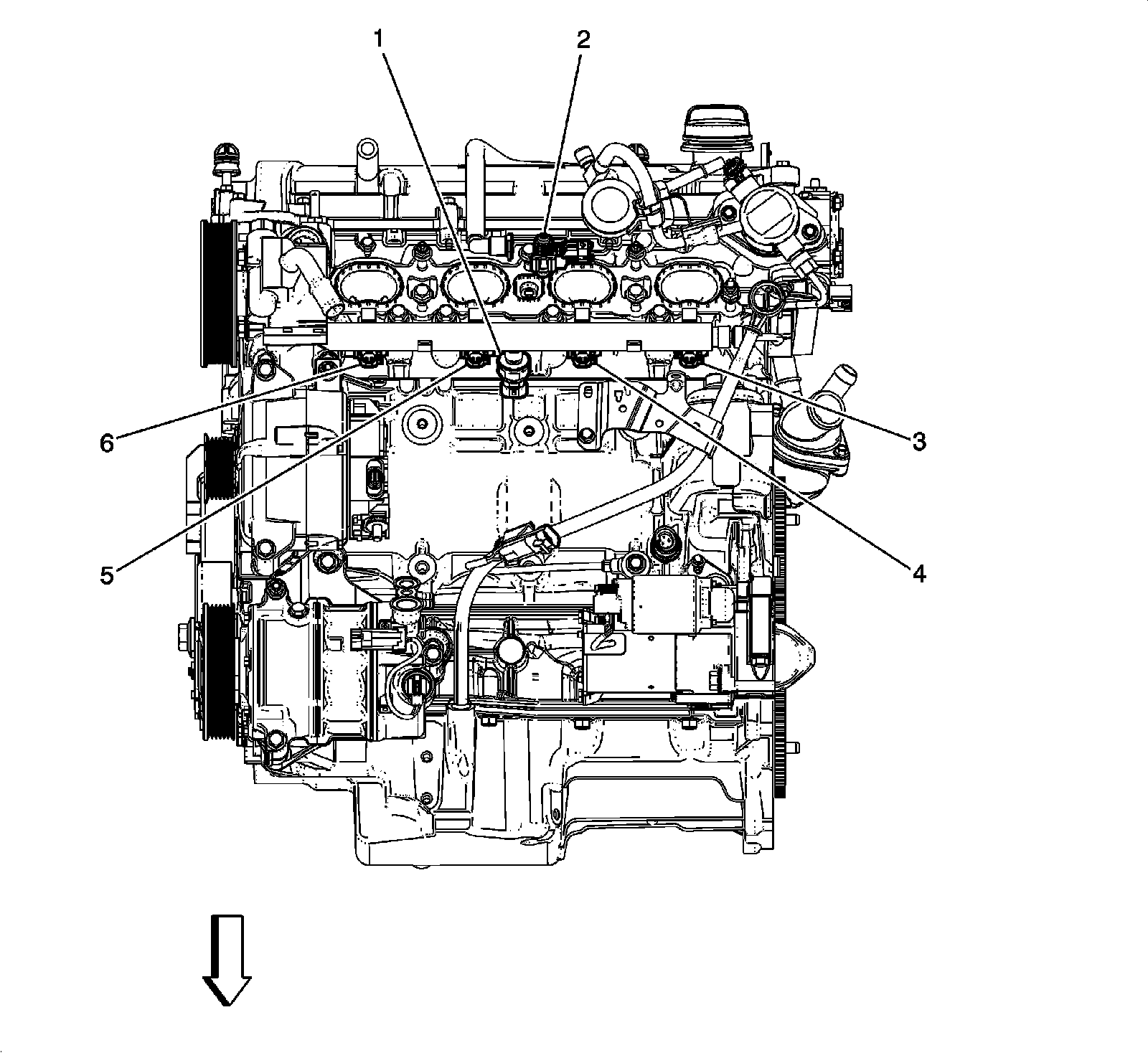

Front of Engine Components (LEA 2 of 2)

1 - B47B Fuel Rail Pressure Sensor

2 - B74 Manifold Absolute Pressure Sensor

3 - Q17D Fuel Injector 4

4 - Q17C Fuel Injector 3

5 - Q17B Fuel Injector 2

6 - Q17A Fuel Injector 1
