Engine Control Module X2 (LEA and NU6)




Component Connector End Views

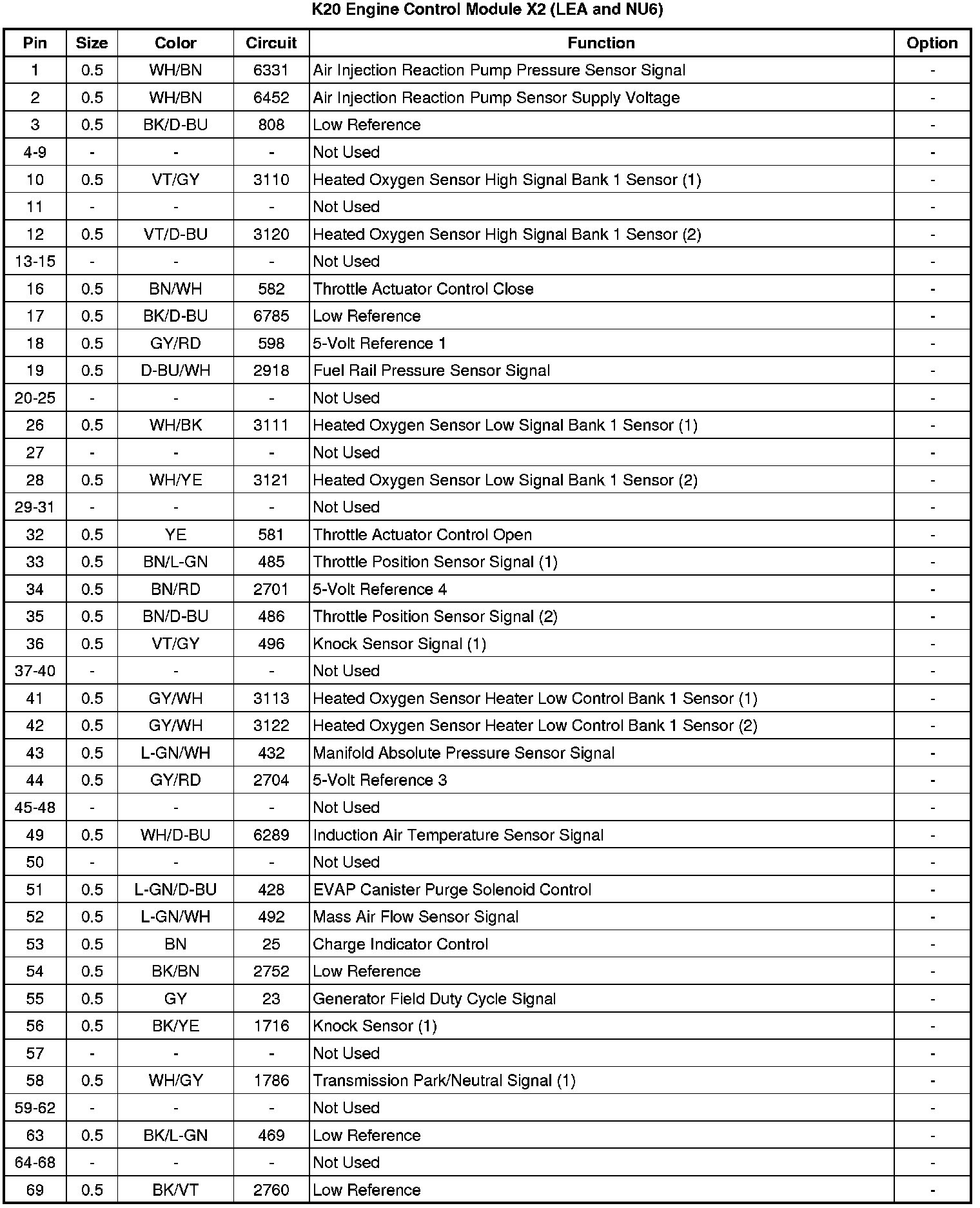

K20 Engine Control Module X2 (LEA and NU6)
