Left Rear Engine Components (LEA)

Powertrain Component Views

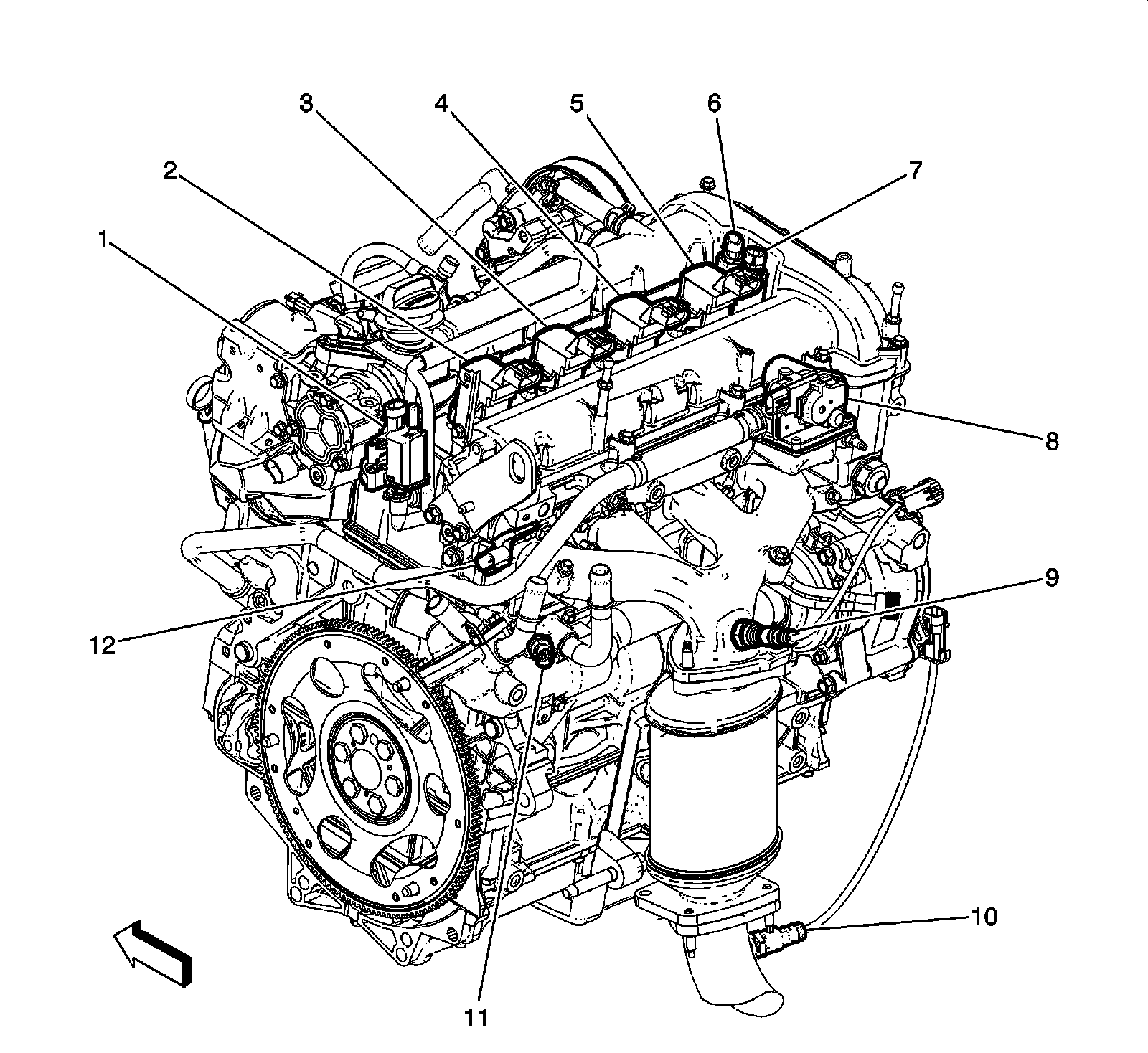

Left Rear Engine Components (LEA)





1 - Q12 Evaporative Emission Purge Solenoid Valve

2 - T8D Ignition Coil 4

3 - T8C Ignition Coil 3

4 - T8B Ignition Coil 2

5 - T8A Ignition Coil 1

6 - Q6F Camshaft Position Actuator Solenoid Valve - Intake

7 - Q6E Camshaft Position Actuator Solenoid Valve - Exhaust

8 - Q29 Secondary Air Injection Solenoid Valve (NU6)

9 - B52A Heated Oxygen Sensor 1

10 - B52B Heated Oxygen Sensor 2

11 - B34 Engine Coolant Temperature Sensor

12 - B23E Camshaft Position Sensor - Exhaust
