Front of Vehicle Components




Front of Vehicle/Engine Compartment Component Views

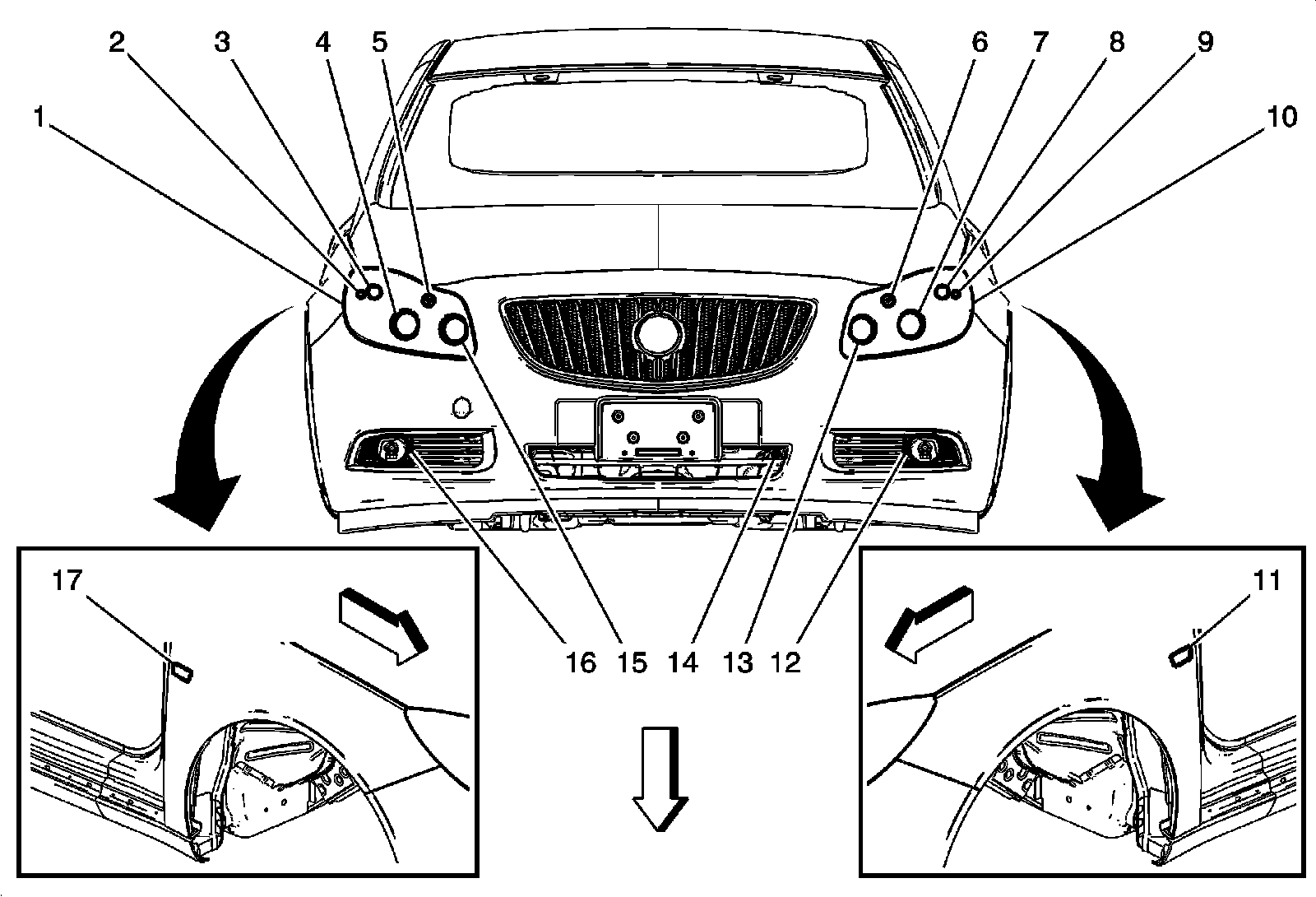

Front of Vehicle Components





1 - E13R Headlamp - Right

2 - E2RF Side Marker Lamp - Right Front (TT4)

3 - E4P Park/Turn Signal Lamp - Right (TT4)

4 - E4H Headlamp - Right Low Beam (TT4)

5 - E4RF Turn Signal Lamp - Right Front (TT4)

6 - E4LF Turn Signal Lamp - Left Front (TT4)

7 - E4G Headlamp - Left Low Beam (TT4)

8 - E4N Park/Turn Signal Lamp - Left (TT4)

9 - E2LF Side Marker Lamp - Left Front (TT4)

10 - E13L Headlamp - Left

11 - E4Y Turn Signal Repeater Lamp - Left

12 - E29LF Fog Lamp - Left Front

13 - E4E Headlamp - Left High Beam (TT4)

14 - B9 Ambient Air Temperature Sensor

15 - E4F Headlamp - Right High Beam (TT4)

16 - E29RF Fog Lamp - Right Front

17 - E4Z Turn Signal Repeater Lamp - Right
