Rear Object Sensor - Left Outer (UD5 or UD7)
Component Connector End Views

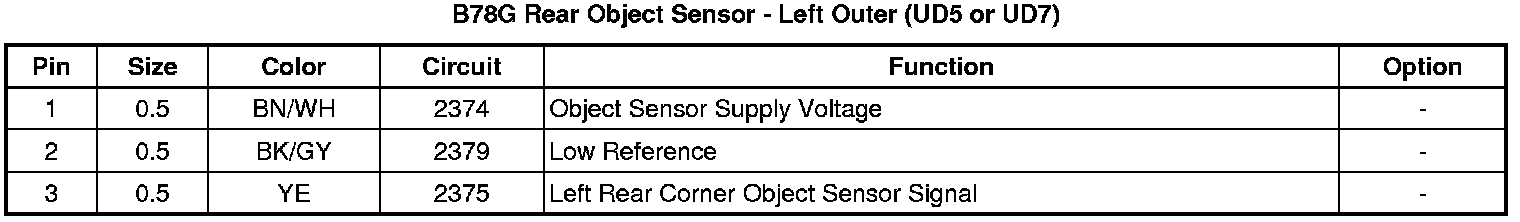

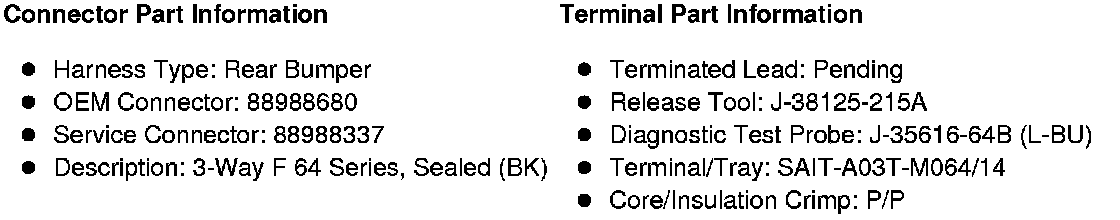

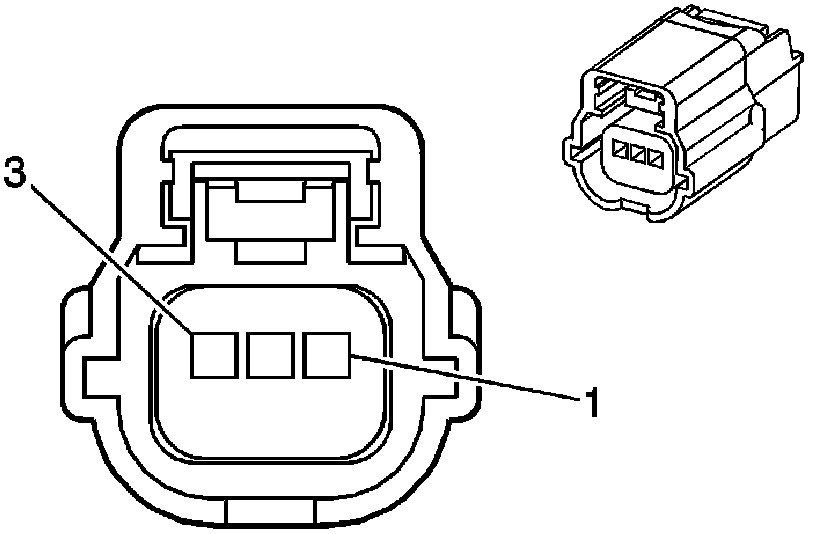

B78G Rear Object Sensor - Left Outer (UD5 or UD7)
