Electrical Diagrams




Remote Function Schematics

Garage Door Opener

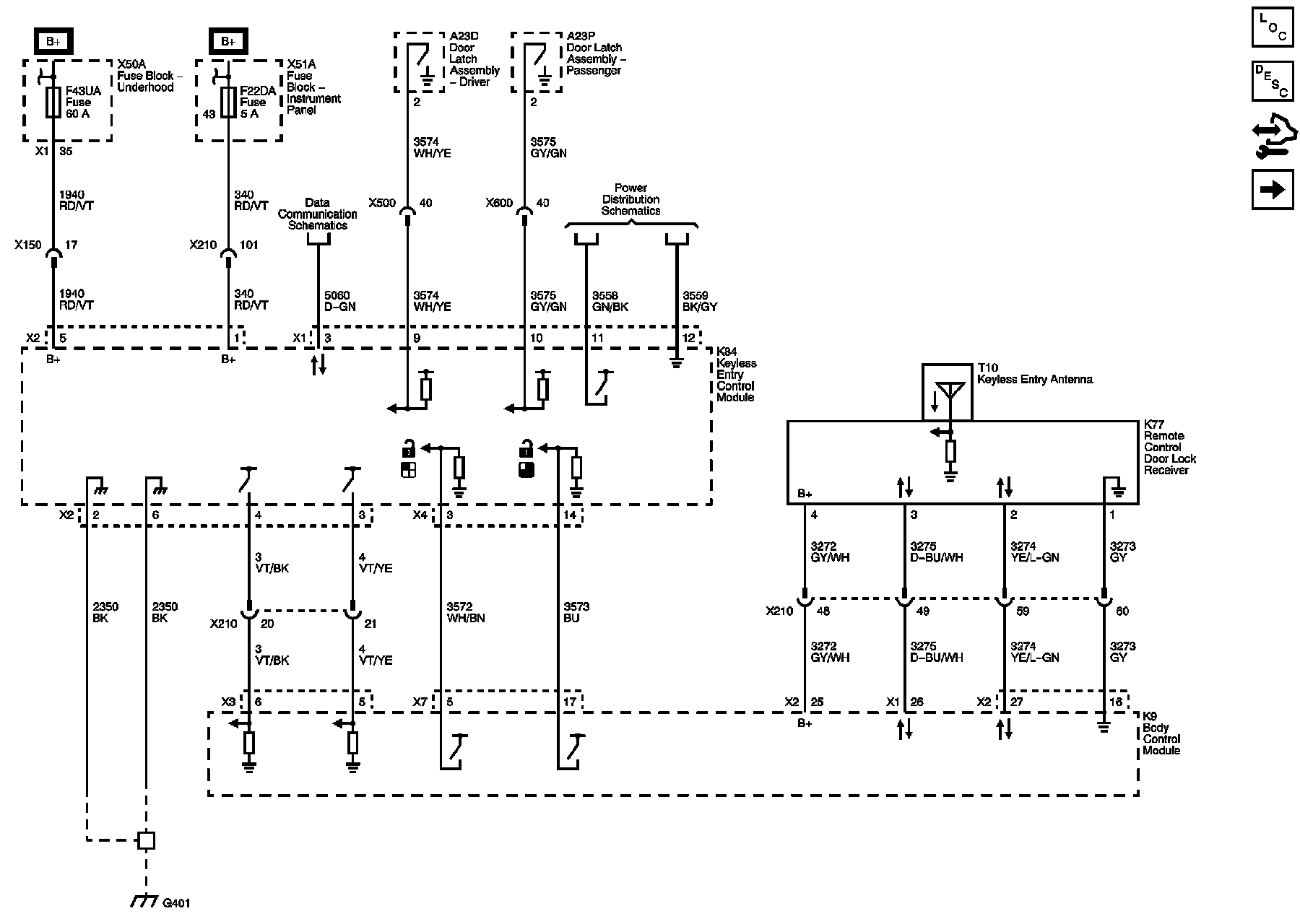

Passive Entry Power, Ground, Data Communications (ATH with BTM), and Remote Keyless Entry

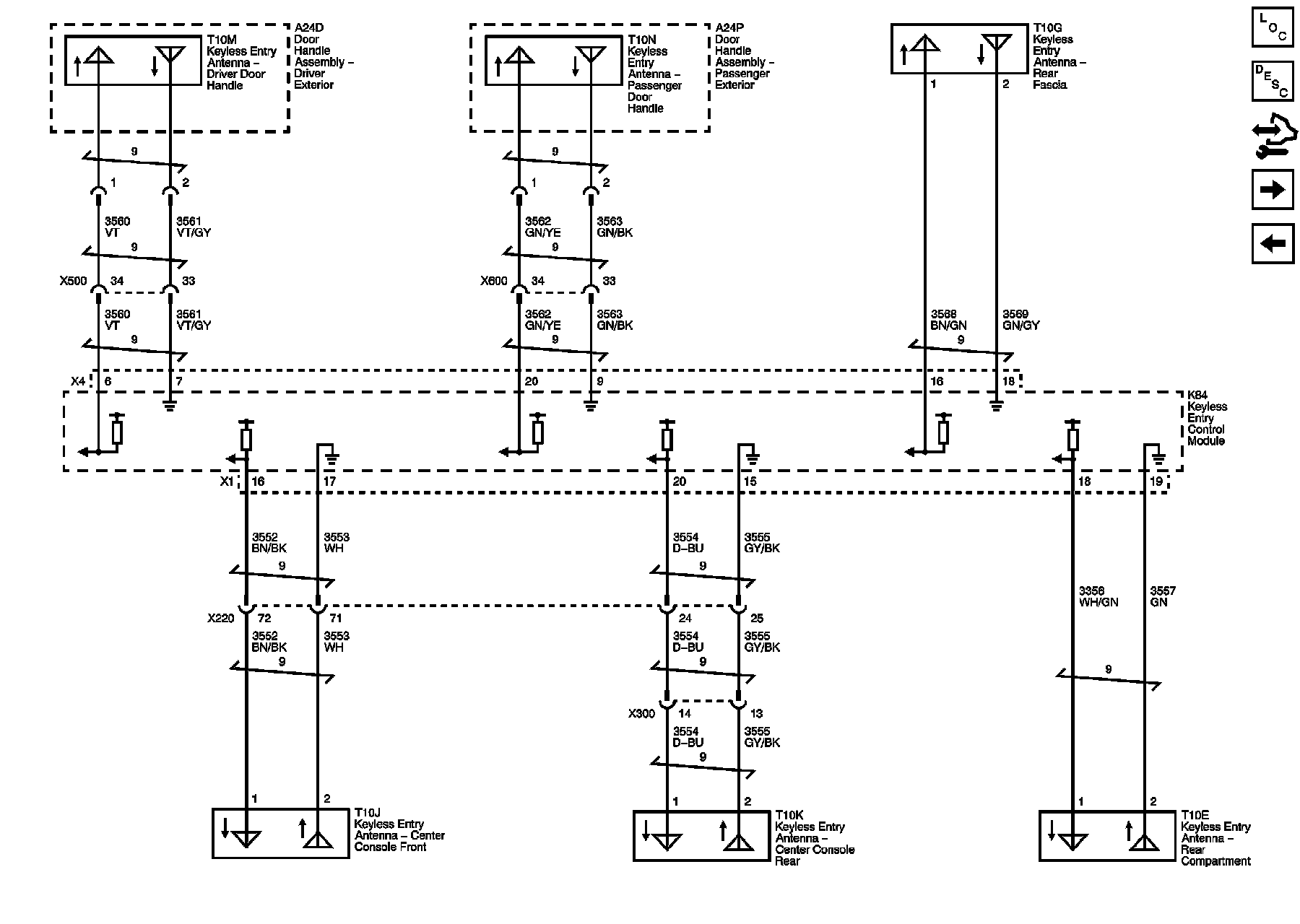

Passive Entry and Passive Start Antennas (ATH with BTM)






Keyless Entry
