Front Side Door Window Inner Sealing Strip Replacement

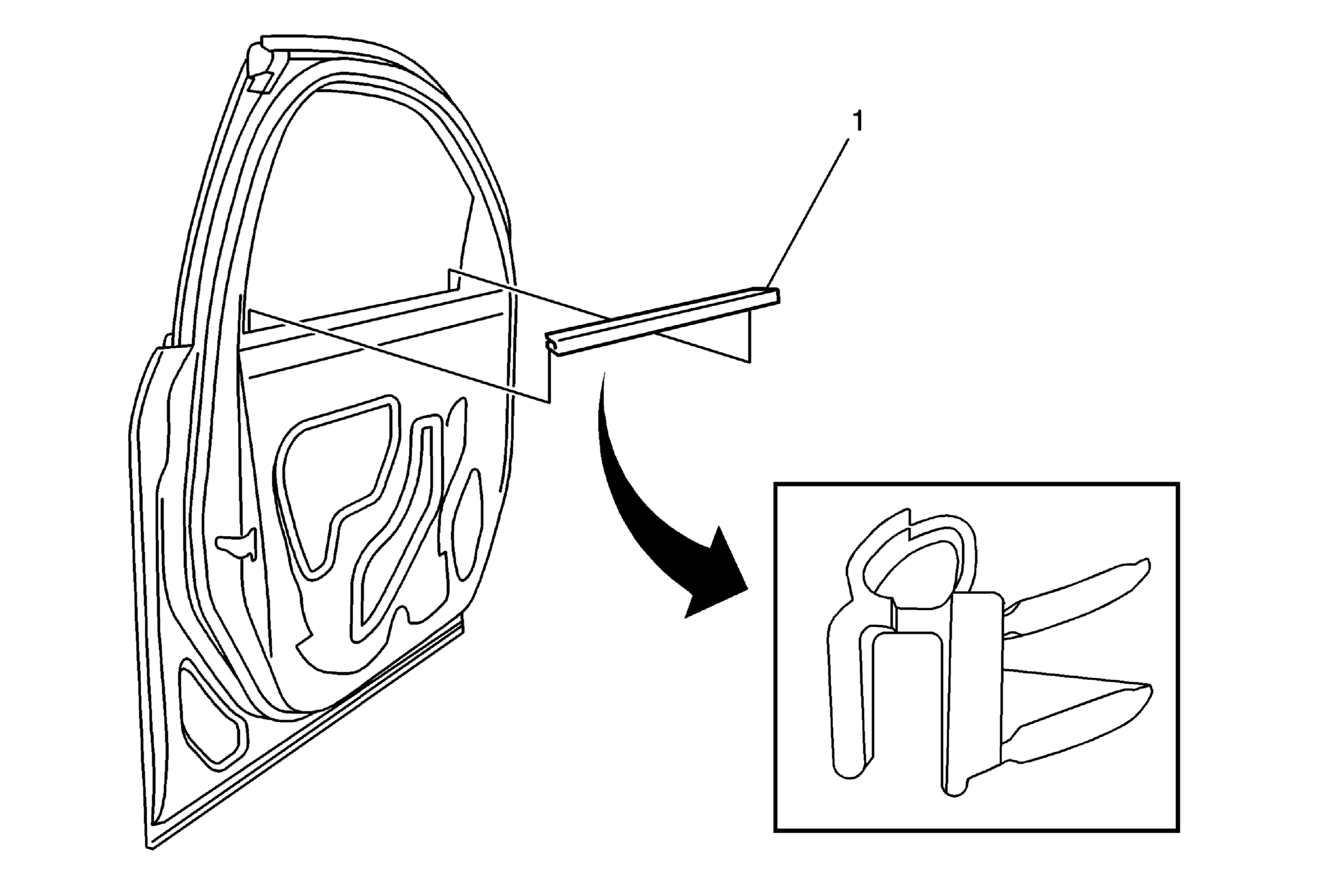

Fig 1: Front Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement Remove the front side door window frame garnish molding. Refer to Front Side Door Window Frame Garnish Molding Replacement
1	Front Side Door Window Inner Sealing Strip Procedure Pull the sealing strip up and away from the door flange to remove.

Callout

Component Name

Preliminary Procedure

Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement
Remove the front side door window frame garnish molding. Refer to Front Side Door Window Frame Garnish Molding Replacement

Front Side Door Window Inner Sealing Strip
Procedure
Pull the sealing strip up and away from the door flange to remove.
