Shift Control and Shift Lever/Selector Lever Cable Components

WARNING: This page is about a different variant/trim than selected.

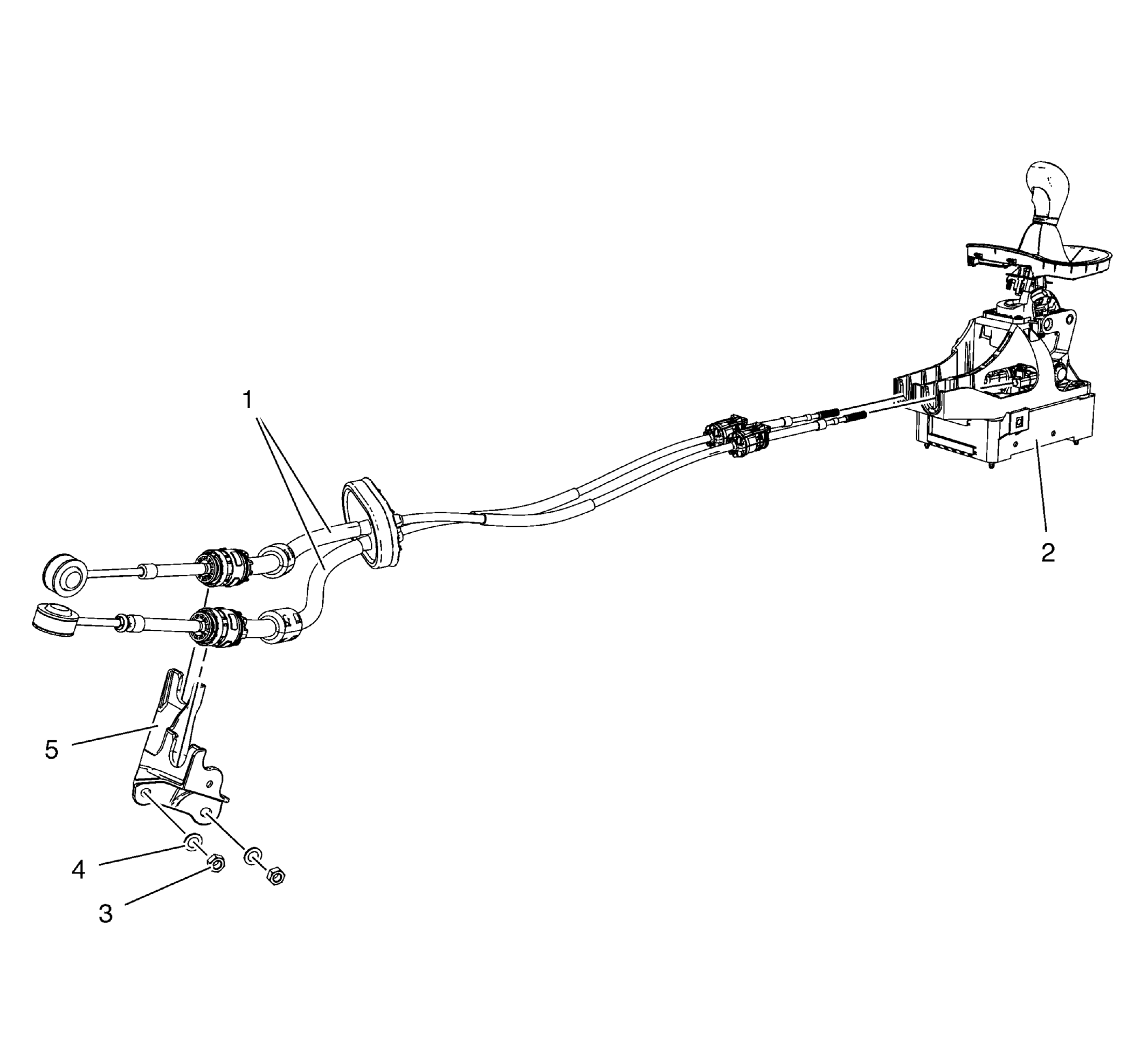

Fig 1: hift Control and Shift Lever/Selector Lever Cable Components
GM2190474Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Manual Transmission Shift Lever and Selector Lever Cable
2 Shift Control Housing
3 Manual Transmission Selector and Shift Lever Cable Bracket Nut (Qty: 2)
4 Manual Transmission Selector and Shift Lever Cable Bracket Nut Washer (Qty: 2)
5 Manual Transmission Selector and Shift Lever Cable Bracket
