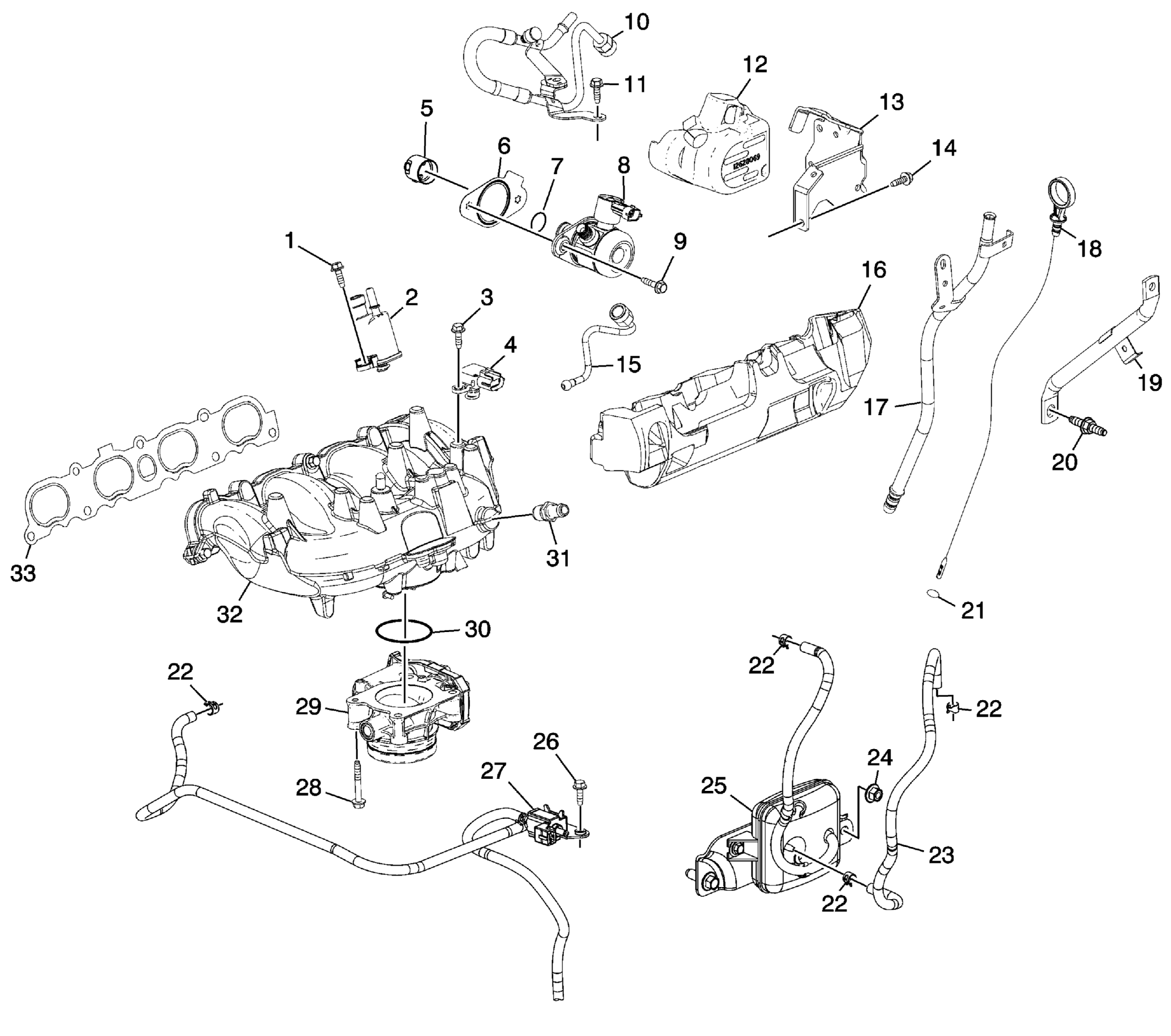

Intake Manifold and Components
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Evaporative (EVAP) Emission Purge Solenoid Valve Bolt |
| 2 | EVAP Purge Solenoid Valve |
| 3 | Manifold Absolute Pressure (MAP) Sensor Bolt |
| 4 | MAP Sensor |
| 5 | Fuel Pump Lifter |
| 6 | High Pressure Fuel Pump Gasket |
| 7 | High Pressure Fuel Pump O-Ring |
| 8 | High Pressure Fuel Pump |
| 9 | High Pressure Fuel Pump Bolt |
| 10 | Fuel Feed Line |
| 11 | Fuel Feed Line Bolt |
| 12 | High Pressure Fuel Pump Insulator |
| 13 | High Pressure Fuel Pump Cover |
| 14 | High Pressure Fuel Pump Cover Bolt |
| 15 | High Pressure Fuel Line |
| 16 | Fuel Injector Insulator |
| 17 | Oil Indicator Tube |
| 18 | Oil Indicator |
| 19 | Intake Manifold Brace |
| 20 | Intake Manifold Brace Stud |
| 21 | Oil Indicator O-Ring |
| 22 | Charger AIR Bypass Tube Clamp |
| 23 | Charger AIR Bypass Tube Assembly |
| 24 | Charger AIR Bypass Valve Tank Assembly Nut |
| 25 | Charger AIR Bypass Valve Tank Assembly, Some Models |
| 26 | Charger AIR Bypass Valve Solenoid Bolt |
| 27 | Charger AIR Bypass Valve Solenoid |
| 28 | Throttle Body Bolt |
| 29 | Throttle Body |
| 30 | Throttle Body Seal |
| 31 | Power Brake Booster Fitting |
| 32 | Intake Manifold |
| 33 | Intake Manifold Gasket |
