Air Conditioning Refrigerant Temperature Sensor Replacement

WARNING: This page is about a different car, the 2013 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

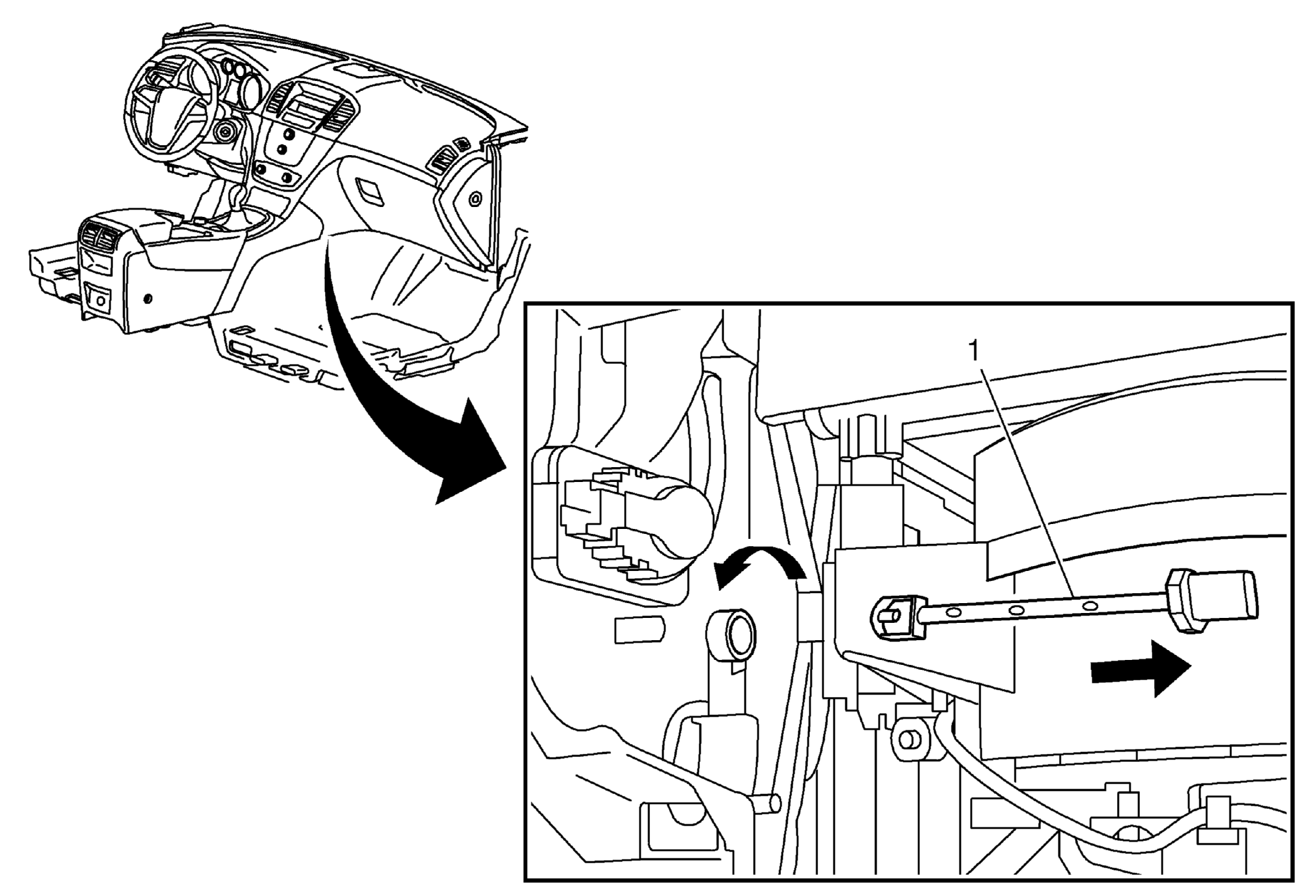

Fig 1: Air Conditioning Refrigerant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side .
1	Air Conditioning Refrigerant Temperature Sensor Procedure Disconnect the refrigerant temperature sensor electrical connector. Twist and pull the refrigerant temperature sensor from the HVAC module assembly.

Callout

Component Name

Preliminary Procedures

Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side .

Air Conditioning Refrigerant Temperature Sensor

Procedure

Disconnect the refrigerant temperature sensor electrical connector.
Twist and pull the refrigerant temperature sensor from the HVAC module assembly.
