Radio and Telephone Control Switch Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

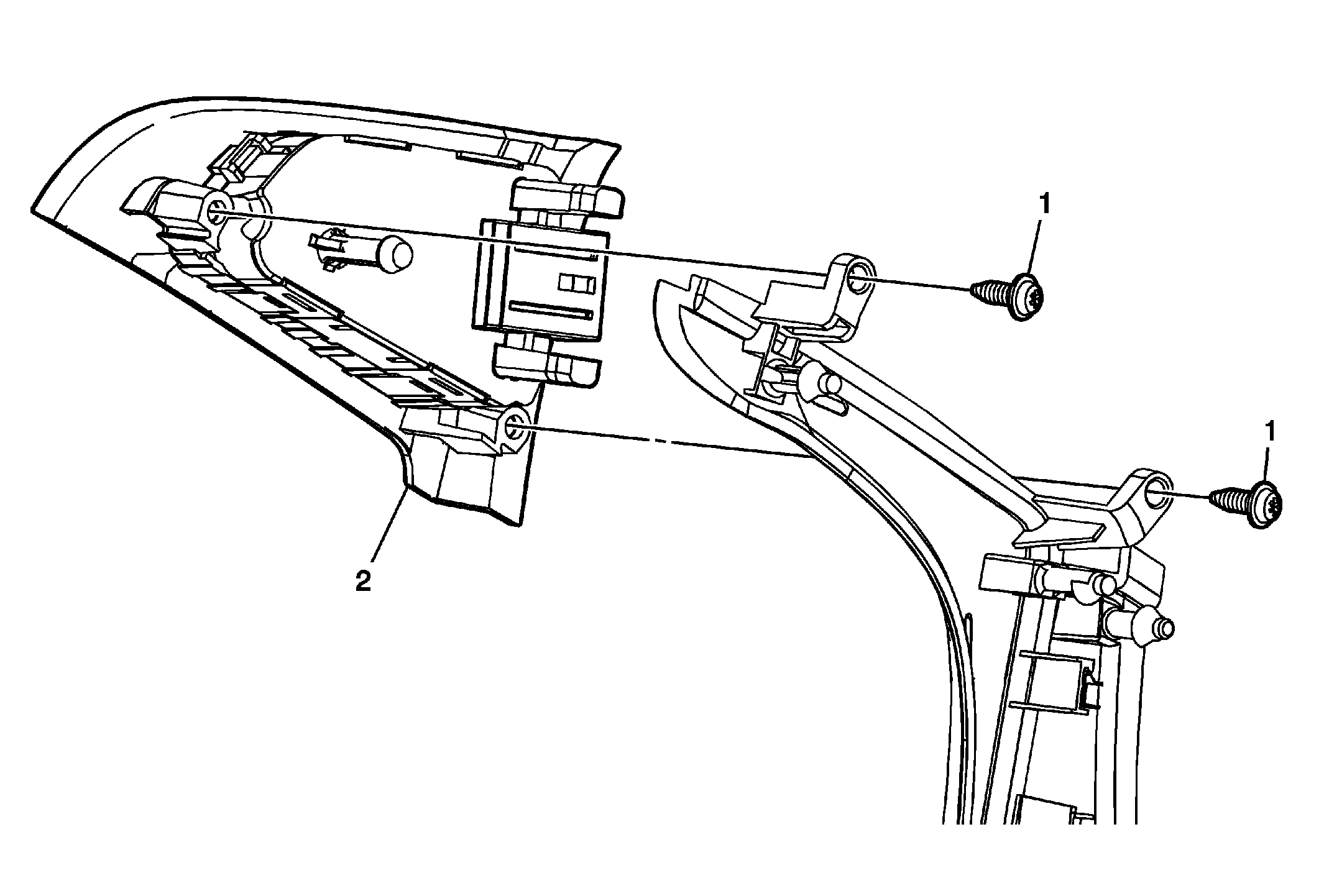

Fig 1: Radio & Telephone Control Switch
GM2219059Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the steering wheel lower cover. Refer to Steering Wheel Lower Cover Replacement .
1 Steering Wheel Lower Cover Fasteners (Qty: 2)
CAUTION: Refer to Fastener Caution .
2 Radio and Telephone Control Switch

Procedure

  1. Release all the retainers and disconnect the electrical connector.
  2. Remove the radio and telephone control switch.
