Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

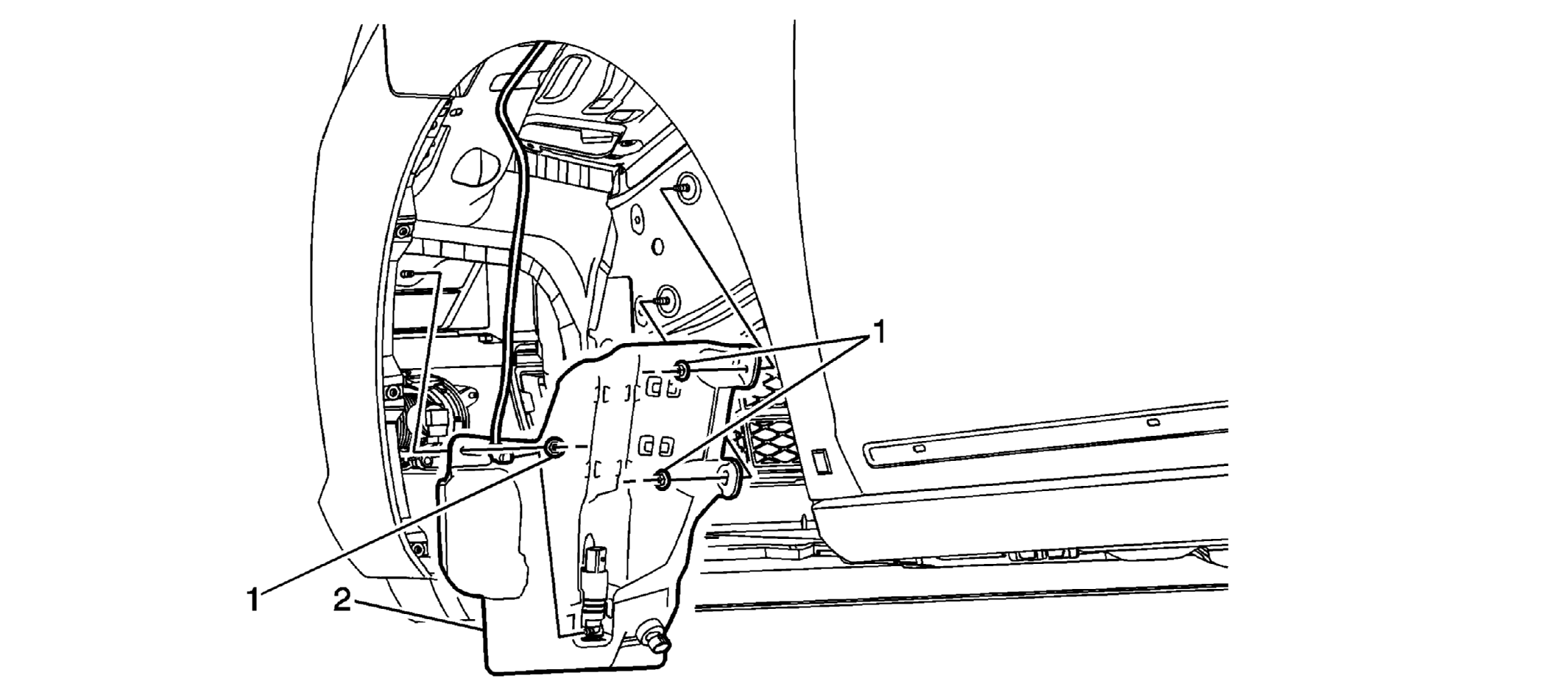

Fig 1: Windshield Washer Solvent Container

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the windshield washer solvent container fill tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement . Remove the front LH wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement . Disconnect the windshield washer pump and level sensor electrical connectors. Disconnect the electrical harness from the washer container. Disconnect the windshield washer pump hose from the pump and the washer container.
1	Windshield Washer Container Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Windshield Washer Solvent Container Assembly Procedure Lift the windshield washer container off the three studs securing the container to the vehicle. Drain the windshield washer solvent from the container into a suitable clean drain pan. Transfer parts as needed.

Callout

Component Name

Preliminary Procedures

Remove the windshield washer solvent container fill tube. Refer to Windshield Washer Solvent Container Filler Tube Replacement .
Remove the front LH wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .
Disconnect the windshield washer pump and level sensor electrical connectors.
Disconnect the electrical harness from the washer container.
Disconnect the windshield washer pump hose from the pump and the washer container.

Windshield Washer Container Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Windshield Washer Solvent Container Assembly

Procedure

Lift the windshield washer container off the three studs securing the container to the vehicle.
Drain the windshield washer solvent from the container into a suitable clean drain pan.
Transfer parts as needed.
