Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

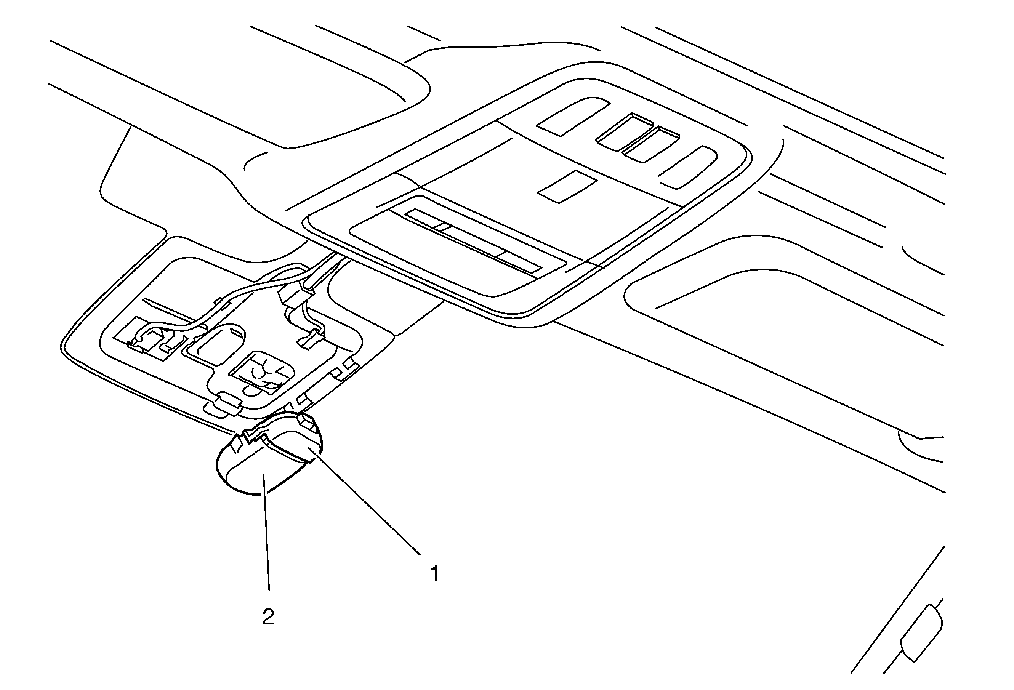

Fig 1: Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inside rearview mirror mount plate cover. Refer to Inside Rearview Mirror Mount Plate Cover Replacement
1	Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor Retainer Tip: Use a small flat-bladed tool to release the locking retainer on the windshield outside moisture and headlamp automatic control ambient light sensor and push the cap upwards.
2	Windshield Outside Moisture and Headlamp Automatic Control Ambient Light Sensor
