Headlamp Automatic Control Ambient Light Sensor Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

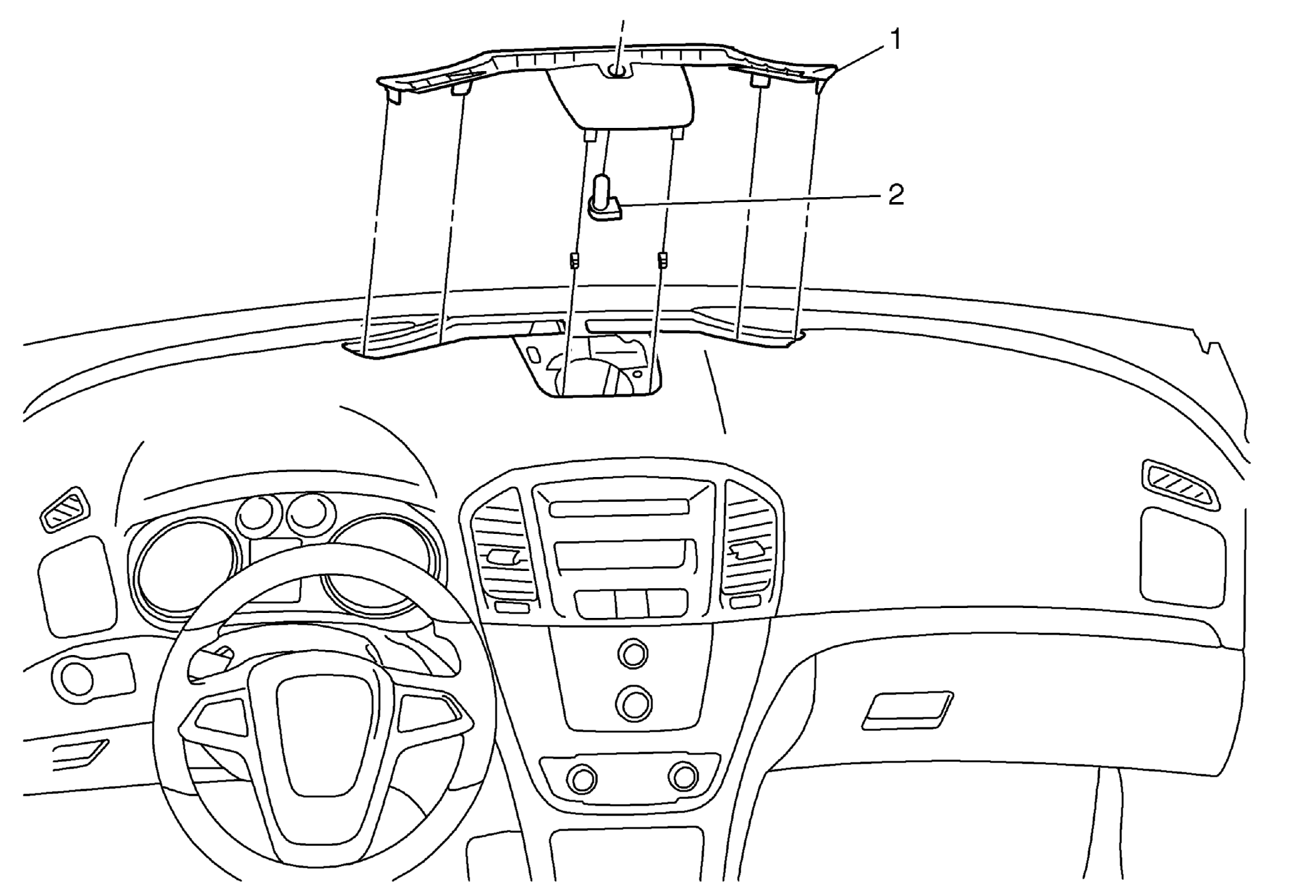

| Callout |
Component Name |
| 1 |
Windshield Defroster Nozzle Grille Retainer (Qty: 8)
Procedure:
Disconnect the electrical connections.
Tip:
Use a flat-bladed plastic trim tool to aid in the removal of the windshield defroster nozzle grille. |
| 2 |
Headlamp Automatic Control Ambient Light Sensor |
