Front Side Marker Lamp Bulb Replacement
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
Preliminary Procedure:
Open and support the hood assembly. |
| 1 |

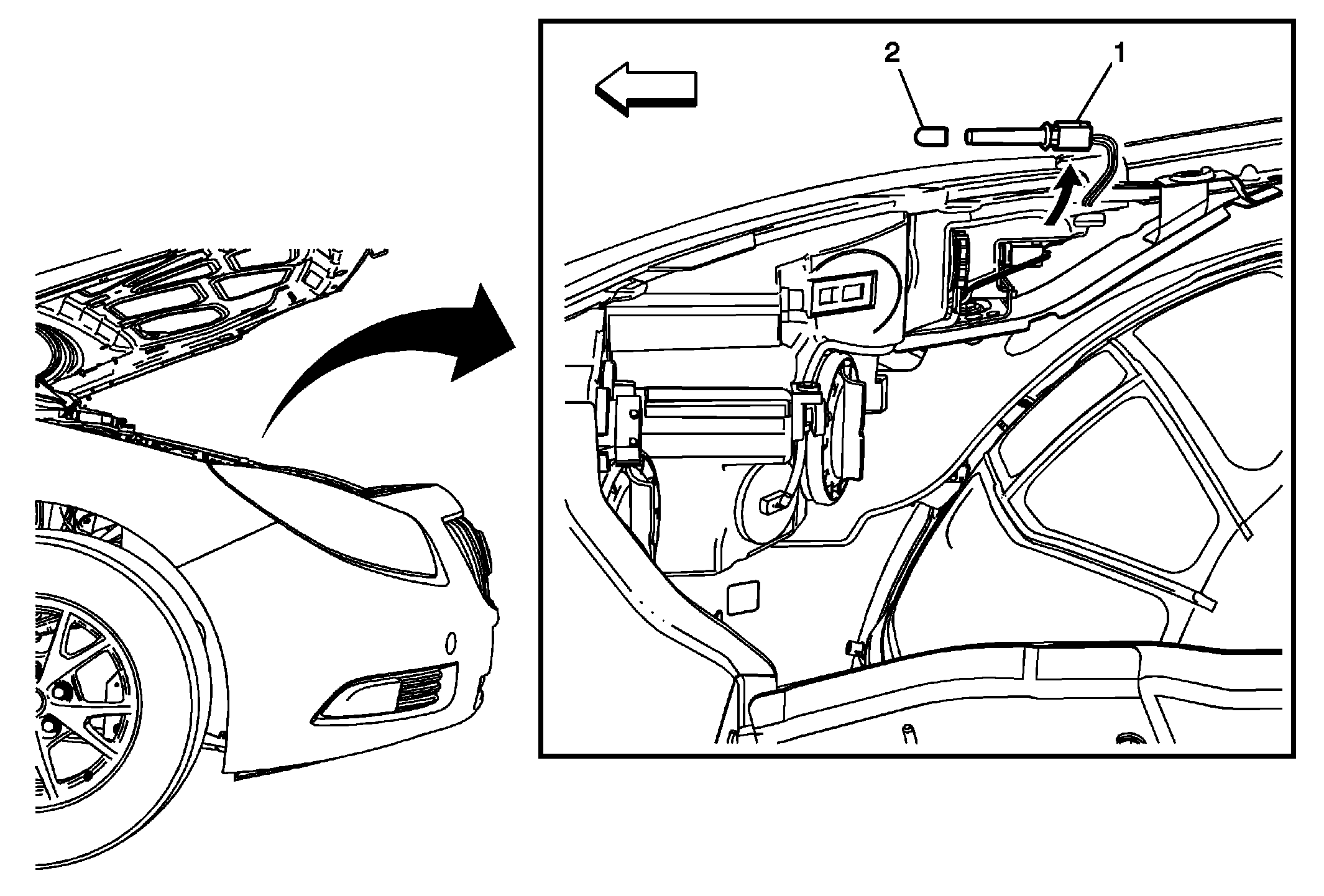

Front Side Marker Lamp Bulb Socket
Tip:
Rotate the bulb socket counter-clockwise and remove the socket from the headlamp assembly. |
| 2 |
Front Side Marker Lamp Bulb |
