Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

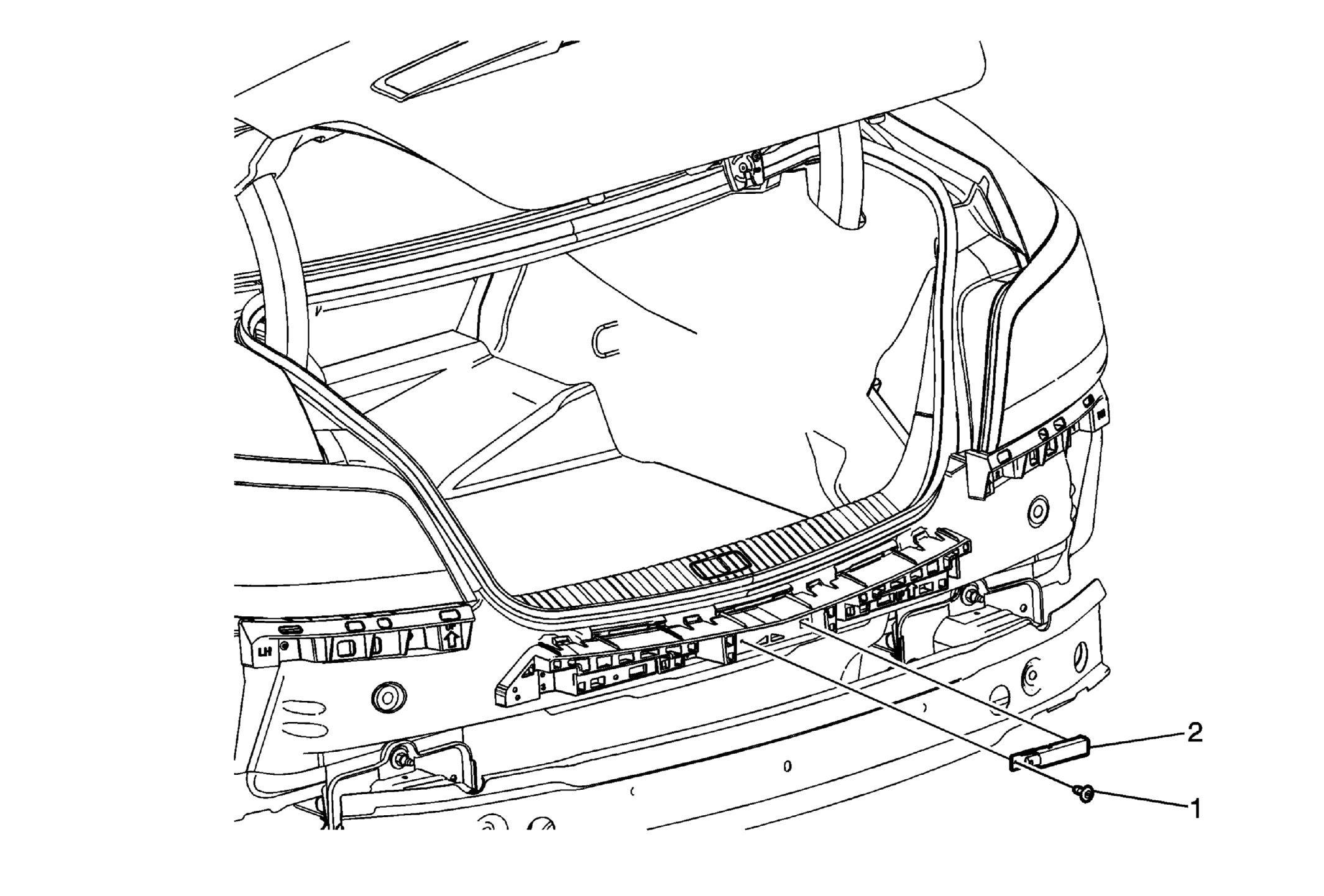

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Ignition Lock Key Transmitter Antenna Replacement - Rear Bumper Fascia

Callout	Component Name
Preliminary Procedure  Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Ignition Lock Key Transmitter Antenna Fastener
2	Ignition Lock Key Transmitter Antenna Procedure  Disconnect the electrical connector.
