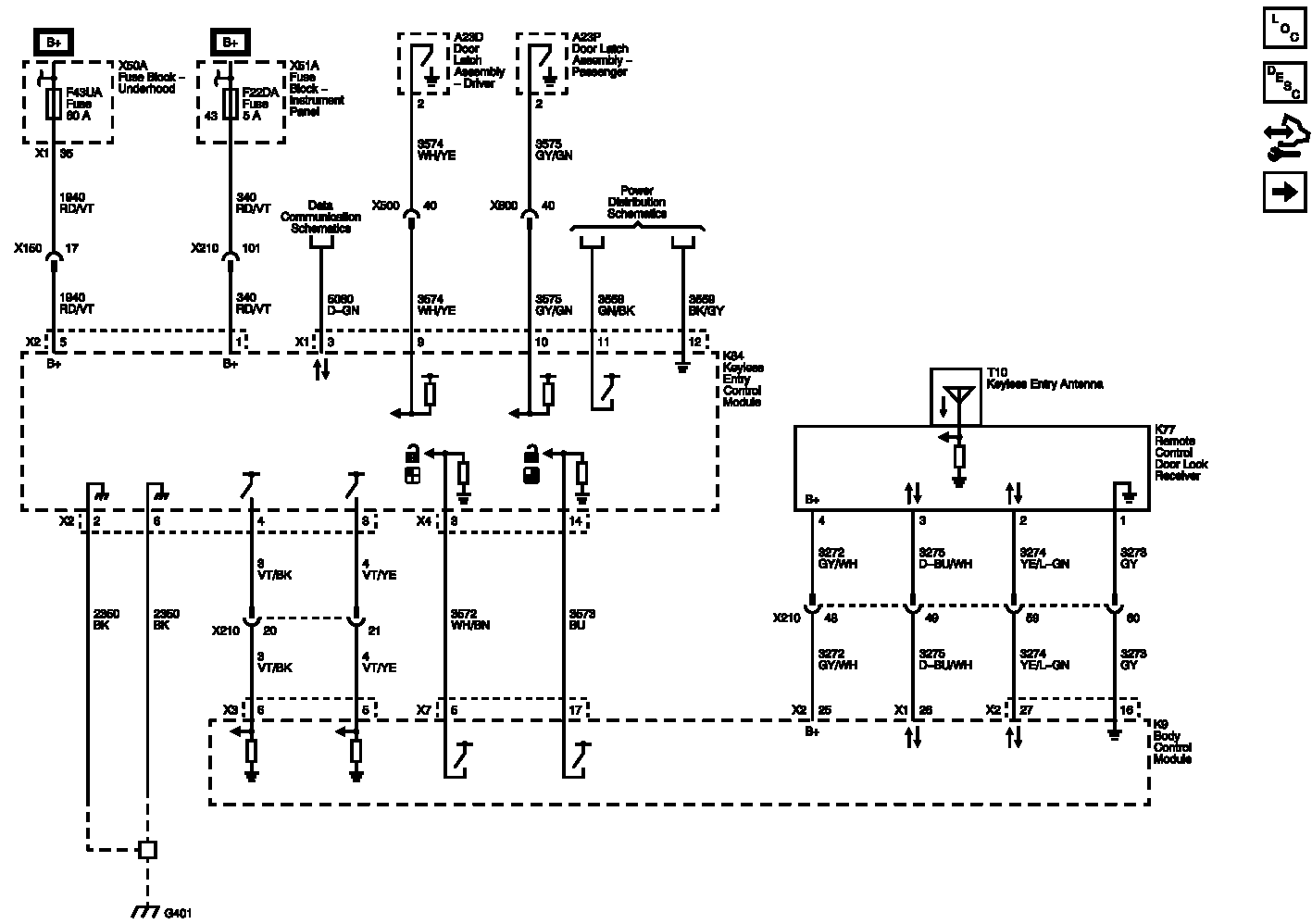

Passive Entry Power, Ground, Data Communications (ATH with BTM), and Remote Keyless Entry Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
