Passive Entry, Passive Start Antenna

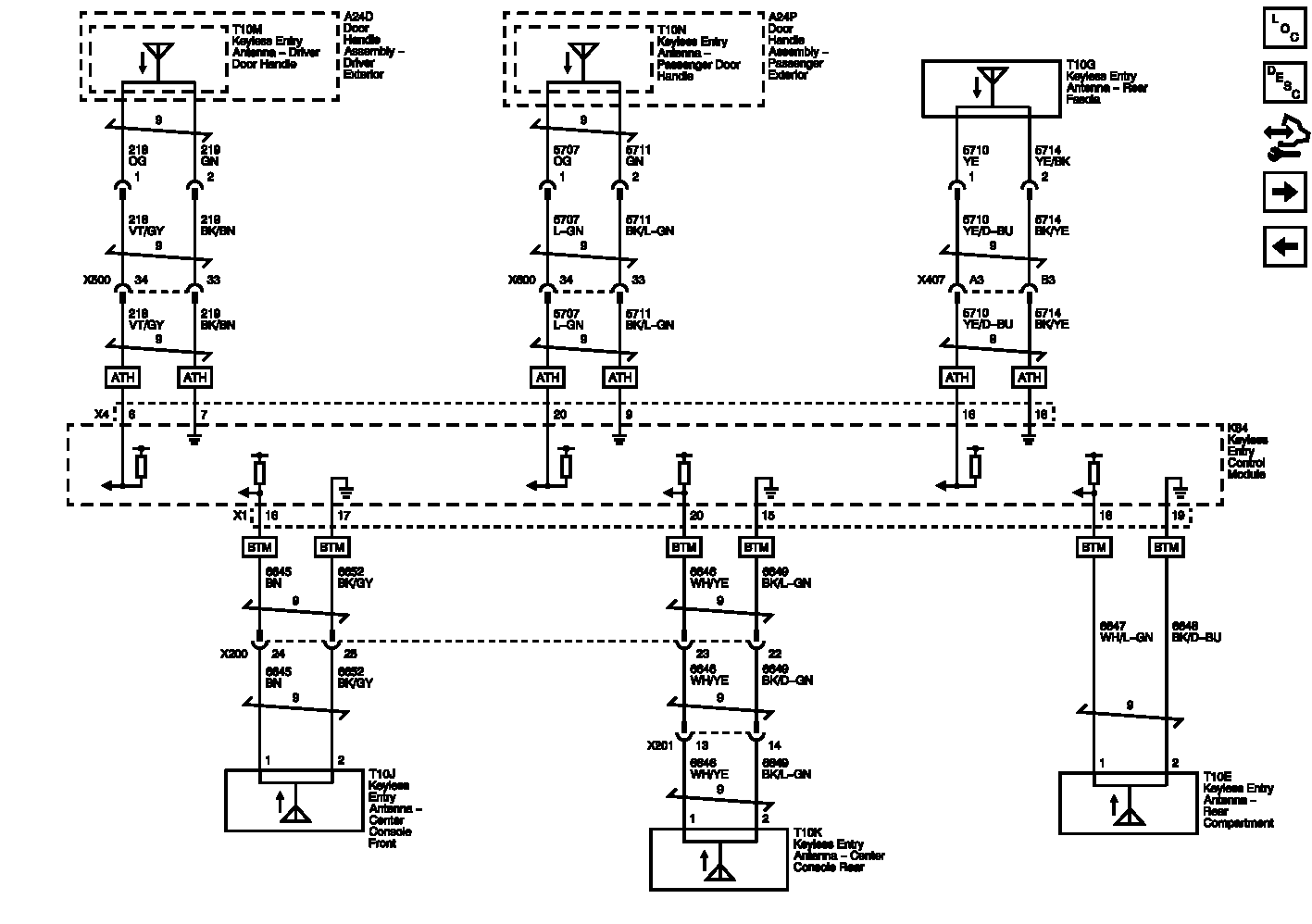

Fig 1: Passive Entry, Passive Start Antenna Wiring Schematic
GM2578004Courtesy of GENERAL MOTORS COMPANY
