Automatic Transmission/Transaxle

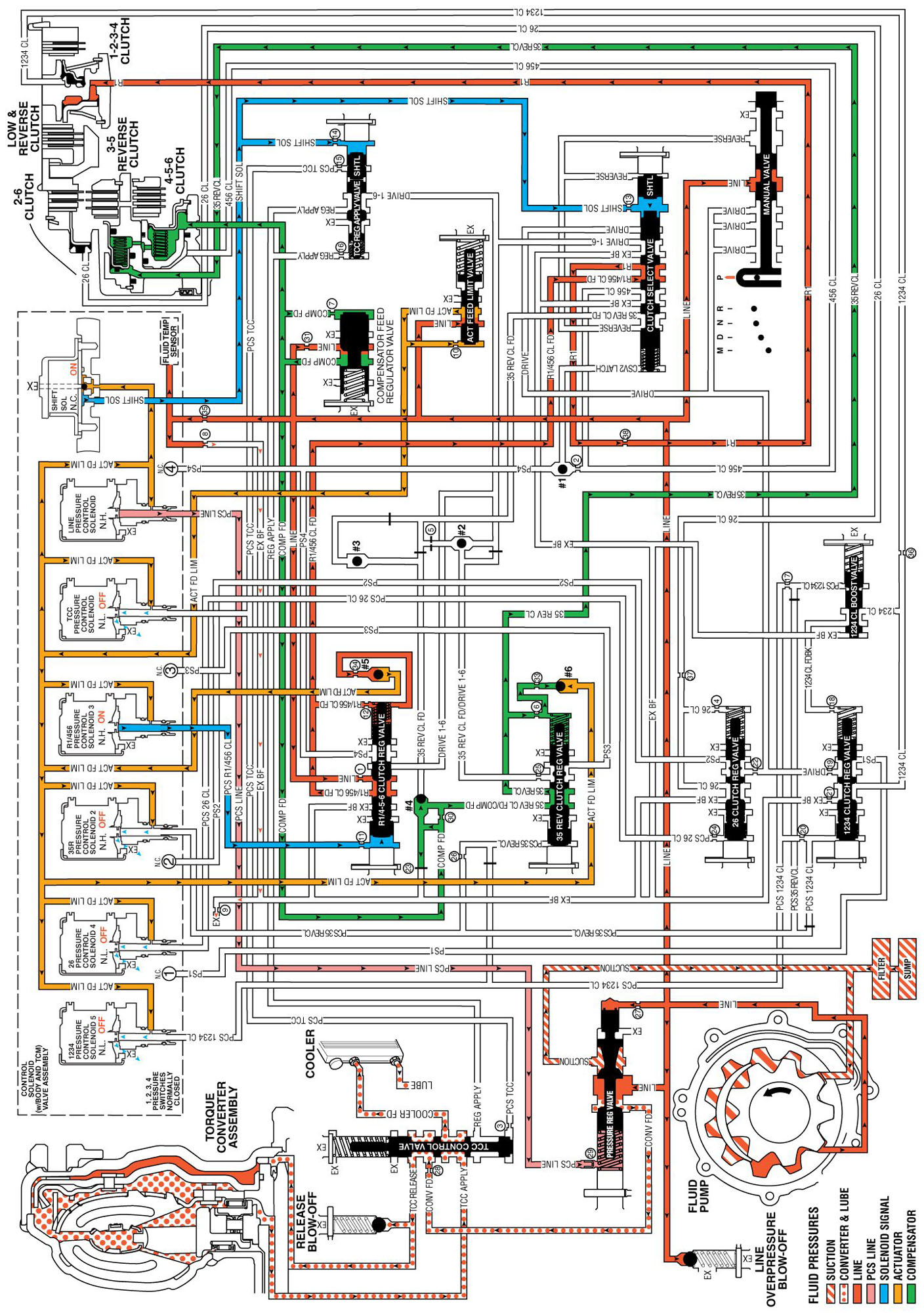

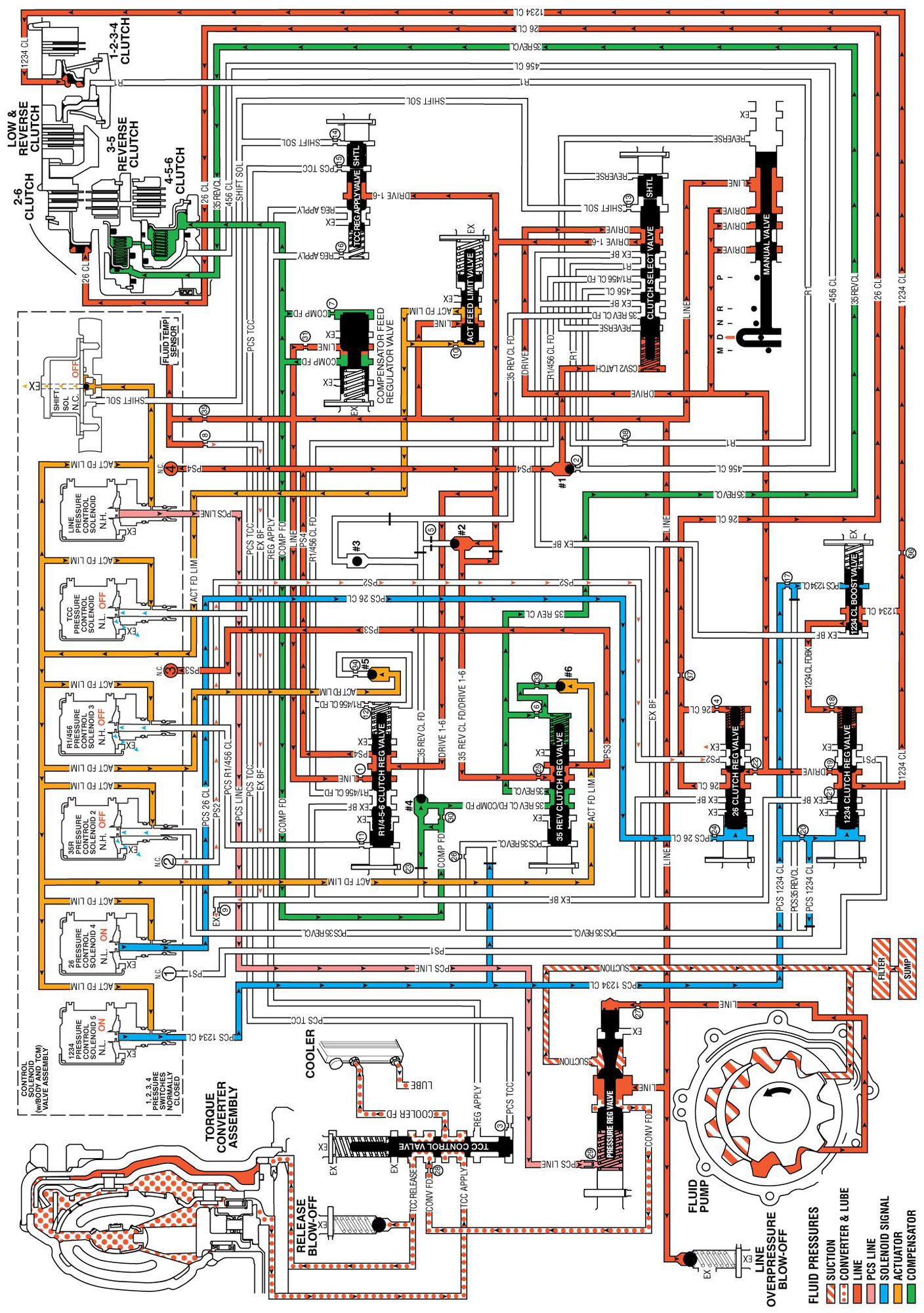

Drive Range - Fourth Gear

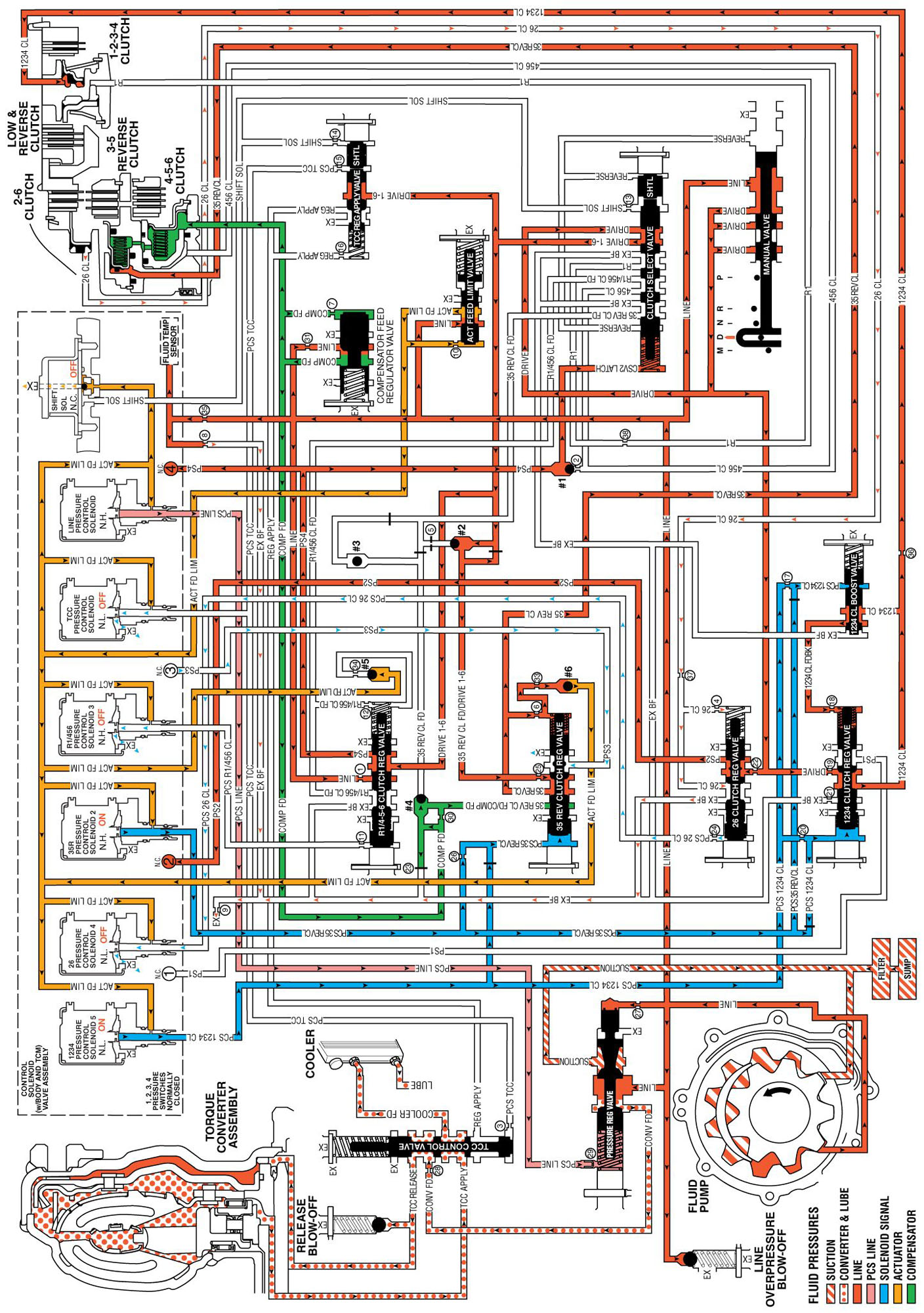

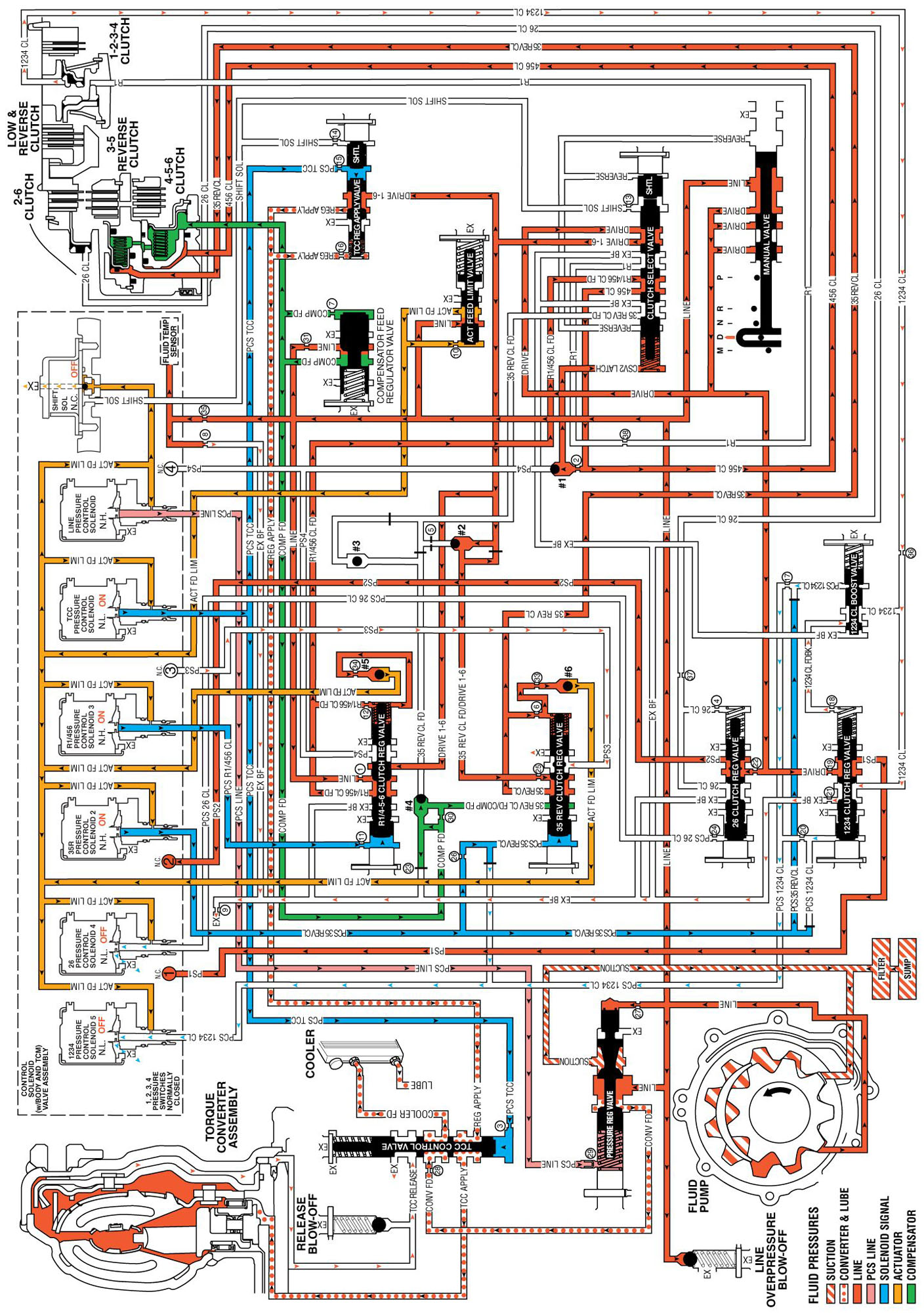

Drive Range, Fifth Gear

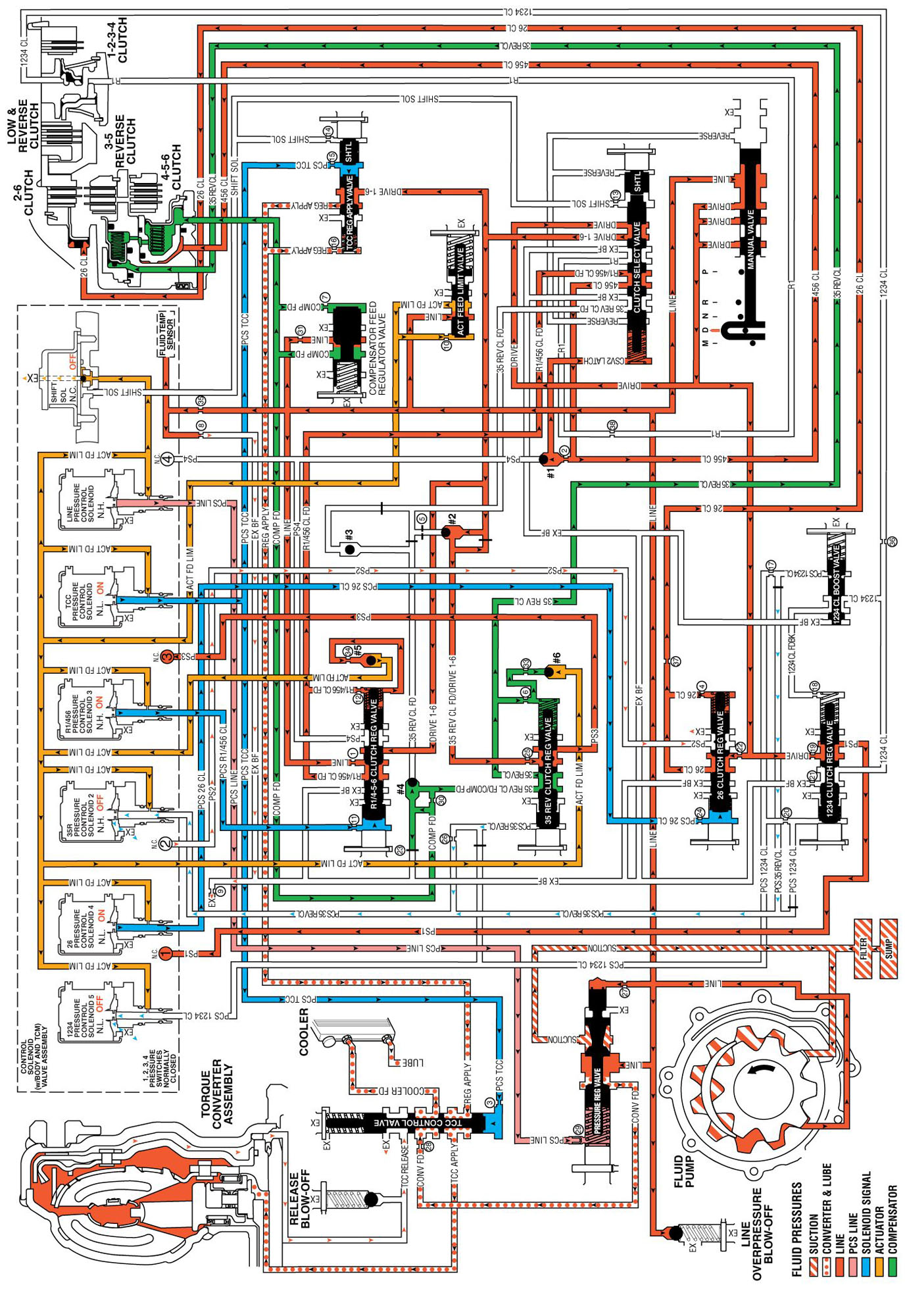

Drive Range, Fifth Gear Default

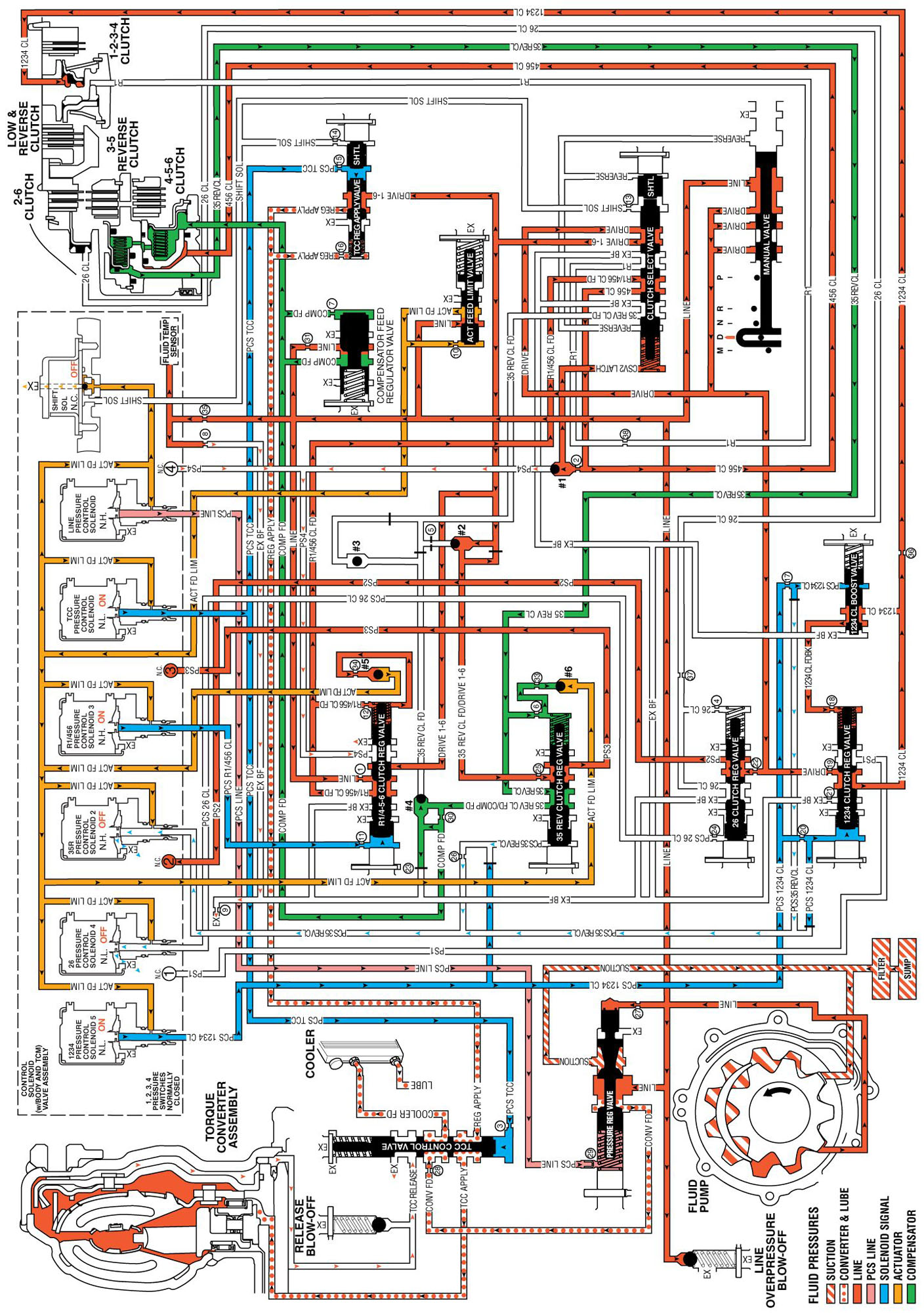

Drive Range, First Gear

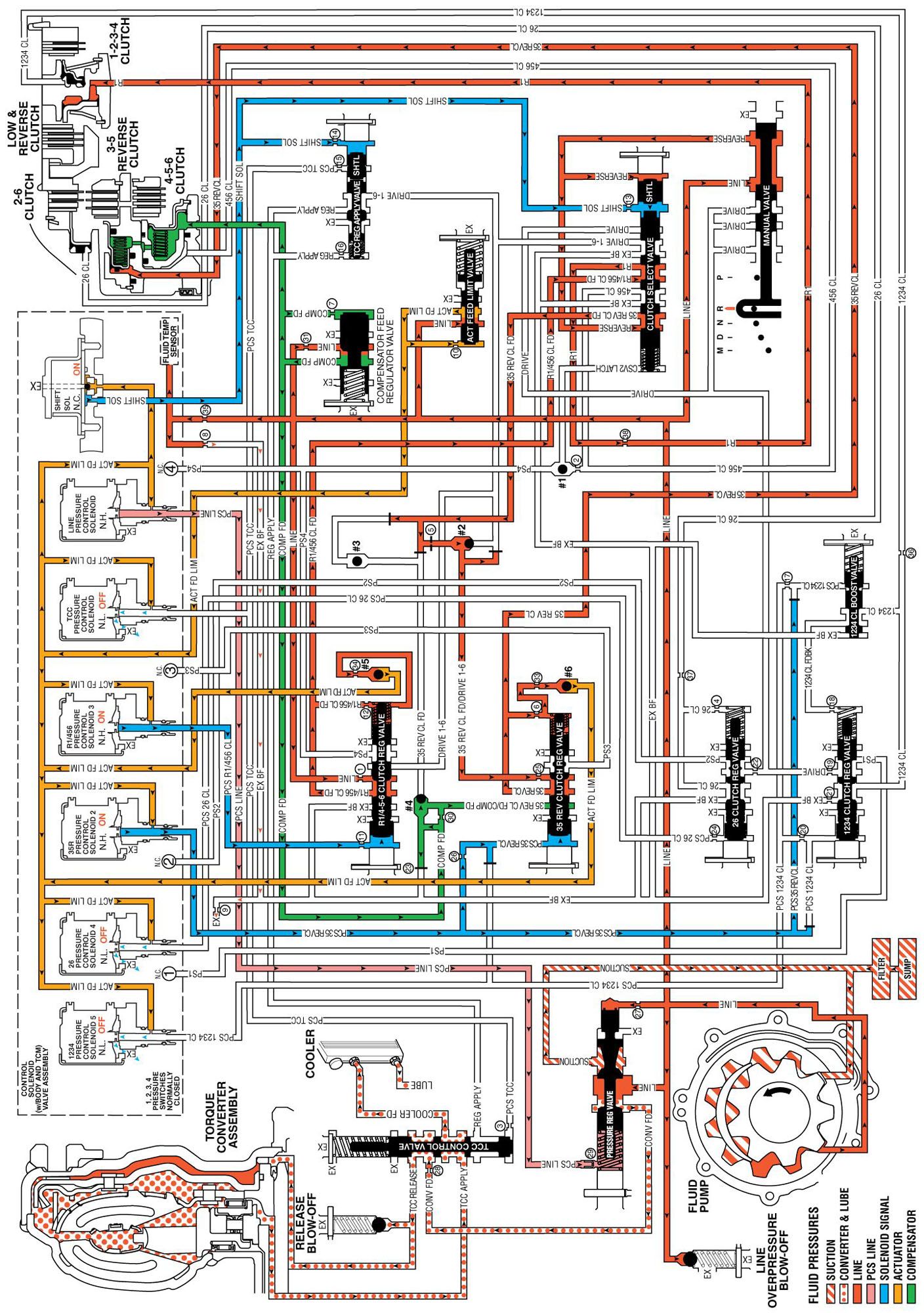

Drive Range, First Gear Engine Braking

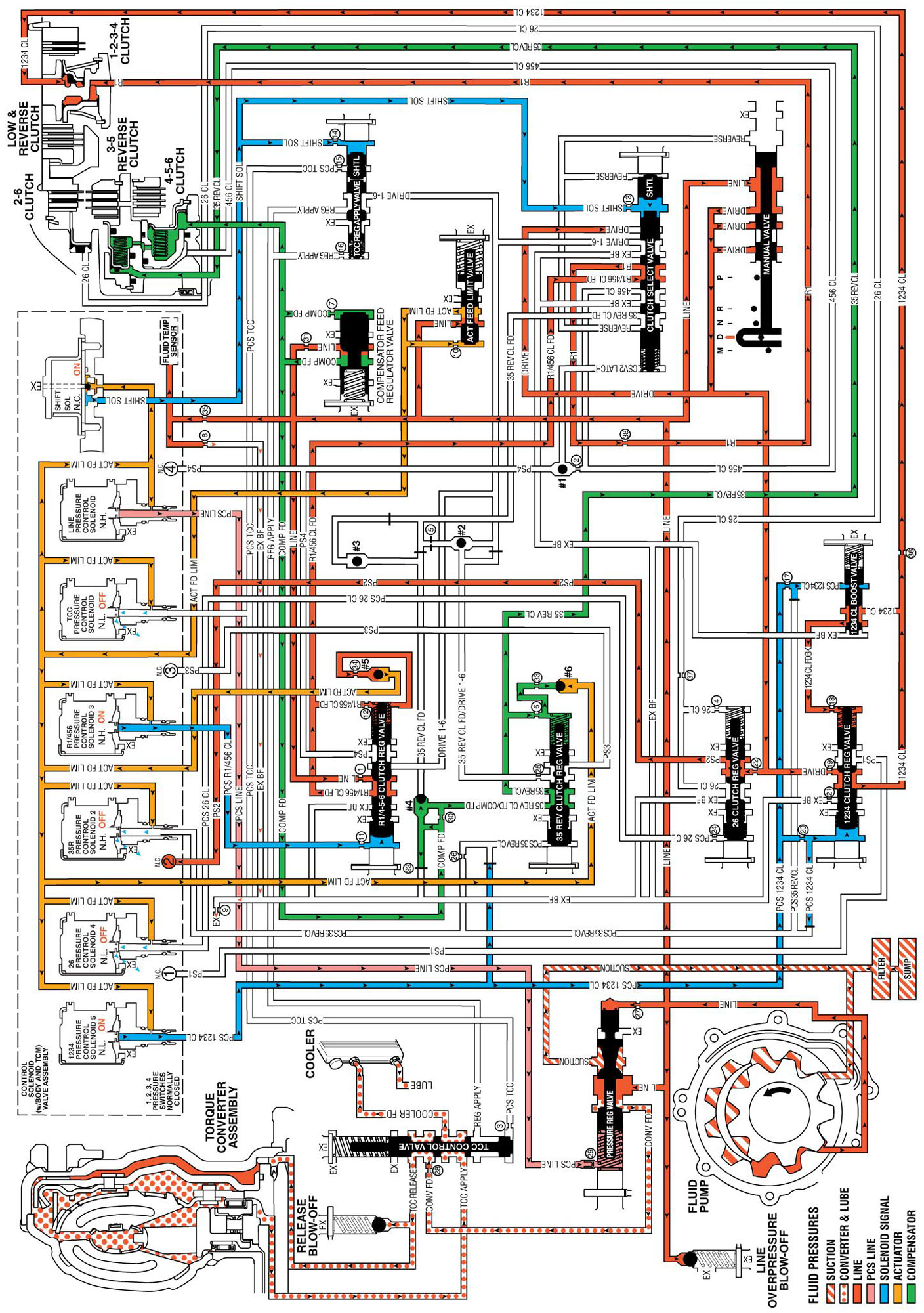

Drive Range, Second Gear

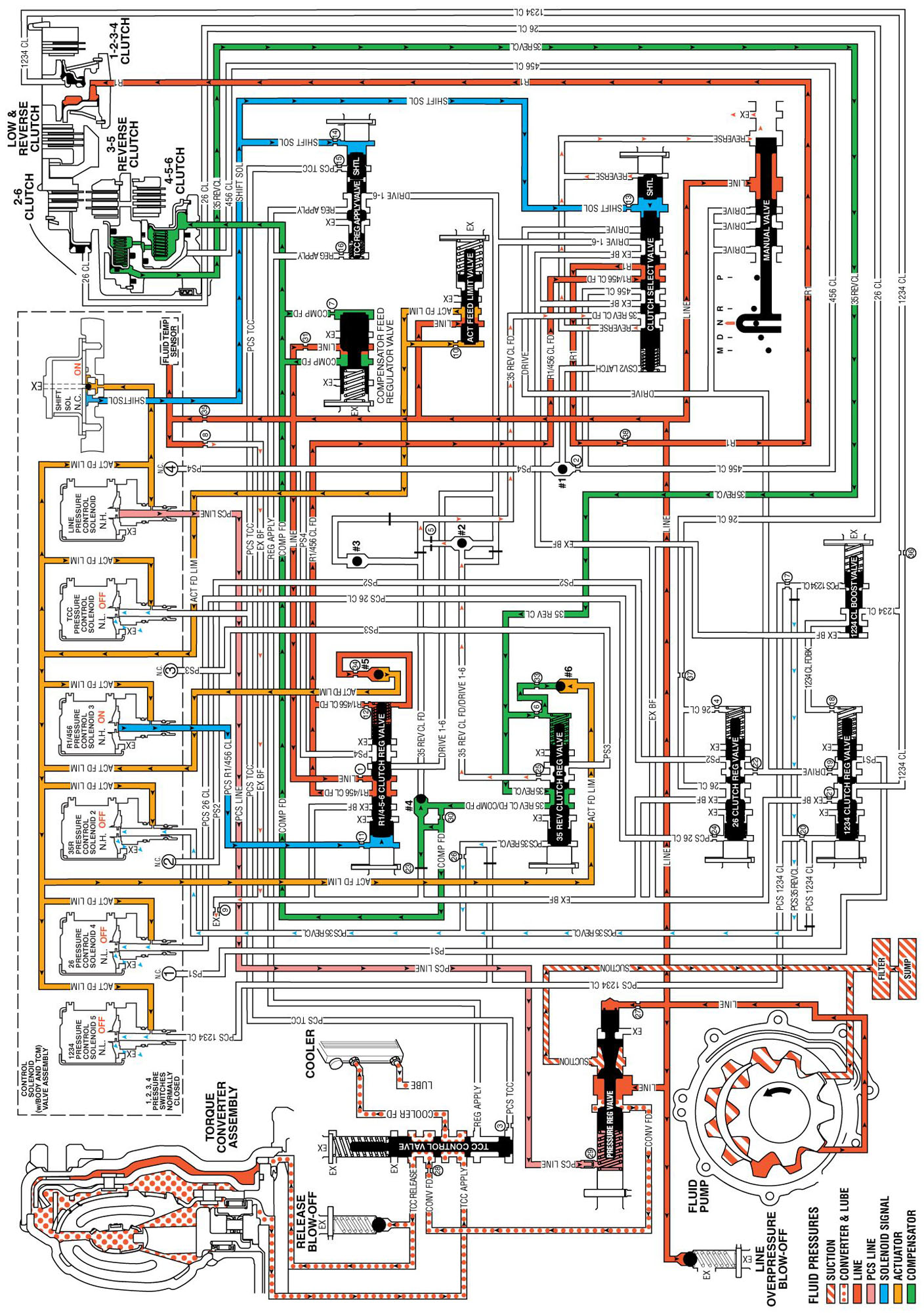

Drive Range, Sixth Gear

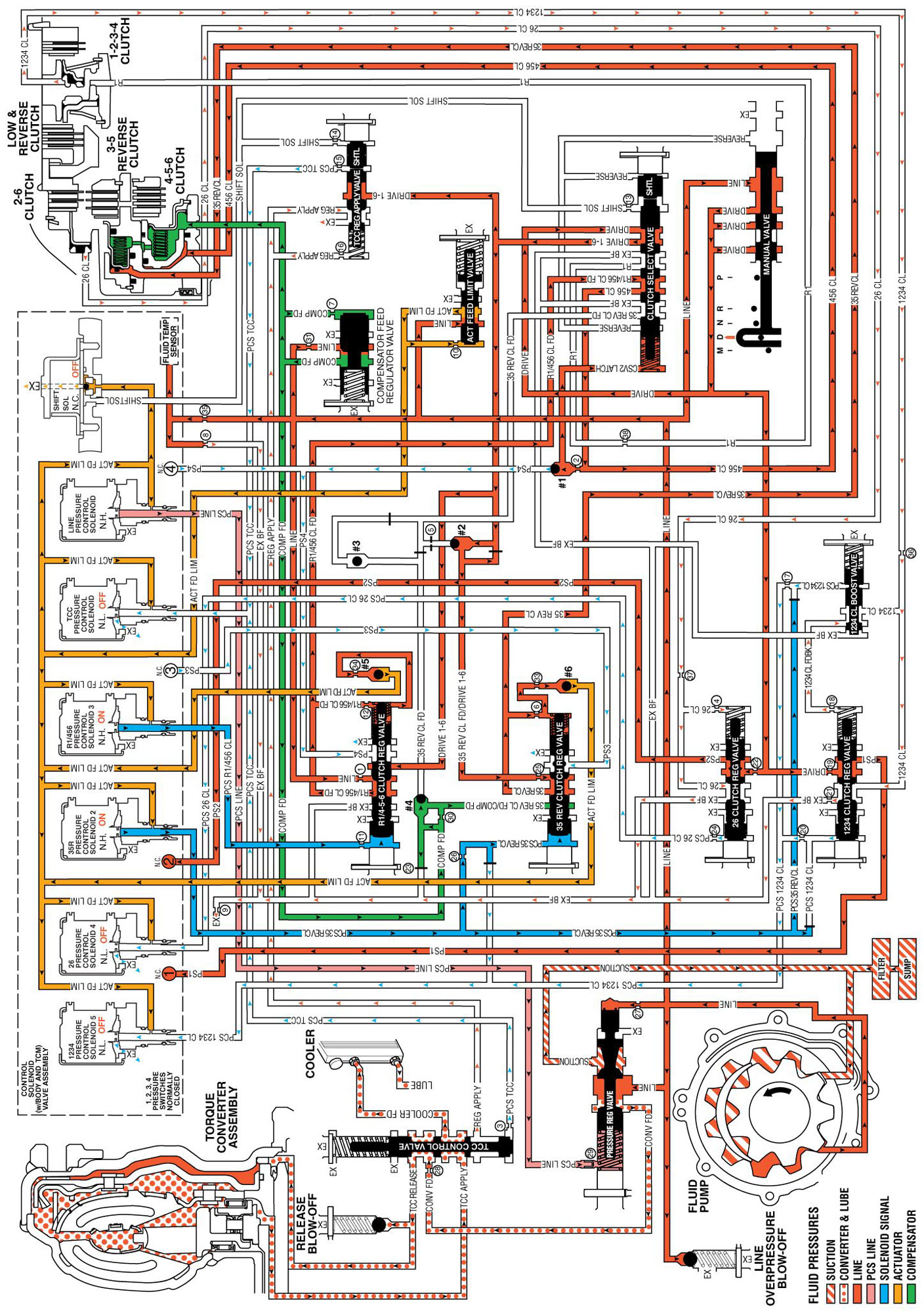

Drive Range, Third Gear









Neutral - Engine Running










Park - Engine Running









Reverse
