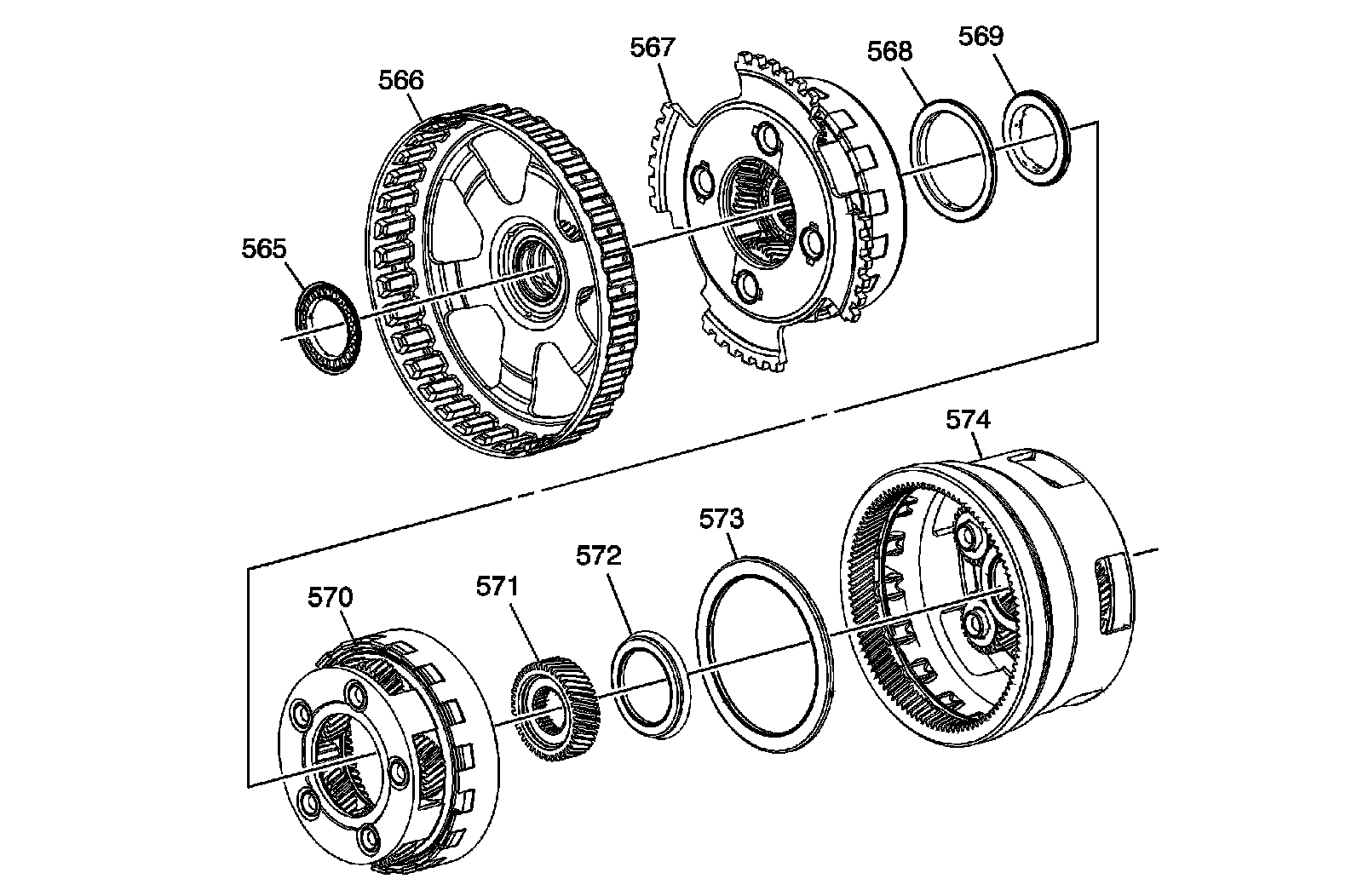

Input, Output and Reaction Gearsets

Disassembled Views (6T40/45)

Input, Output and Reaction Gearsets




565 - Reaction Sun Gear Thrust Bearing Assembly
566 - Reaction Sun Gear Assembly
567 - Reaction Carrier Assembly
568 - Input Carrier Thrust Bearing Assembly
569 - Input Sun Gear Thrust Bearing Assembly
570 - Input Carrier Assembly
571 - Input Sun Gear
572 - Input Sun Gear Thrust Bearing Assembly
573 - Output Carrier Thrust Bearing Assembly
574 - Output Carrier Assembly
