Power Window Motor
>>
M74D Window Motor - Driver
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

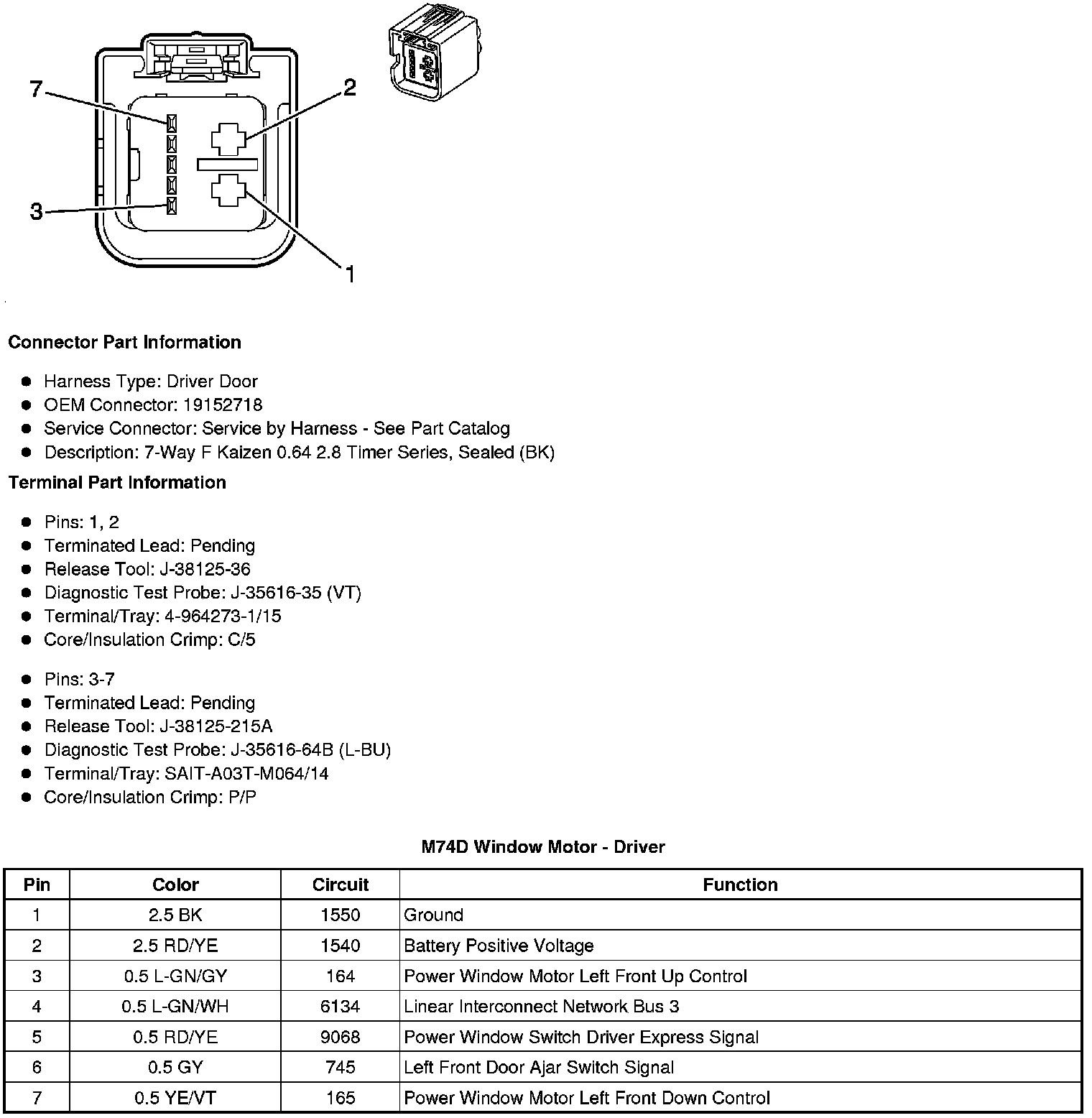

M74D Window Motor - Driver
Component Connector End Views
M74D Window Motor - Driver
