Antilock Brake System Wiring Schematics

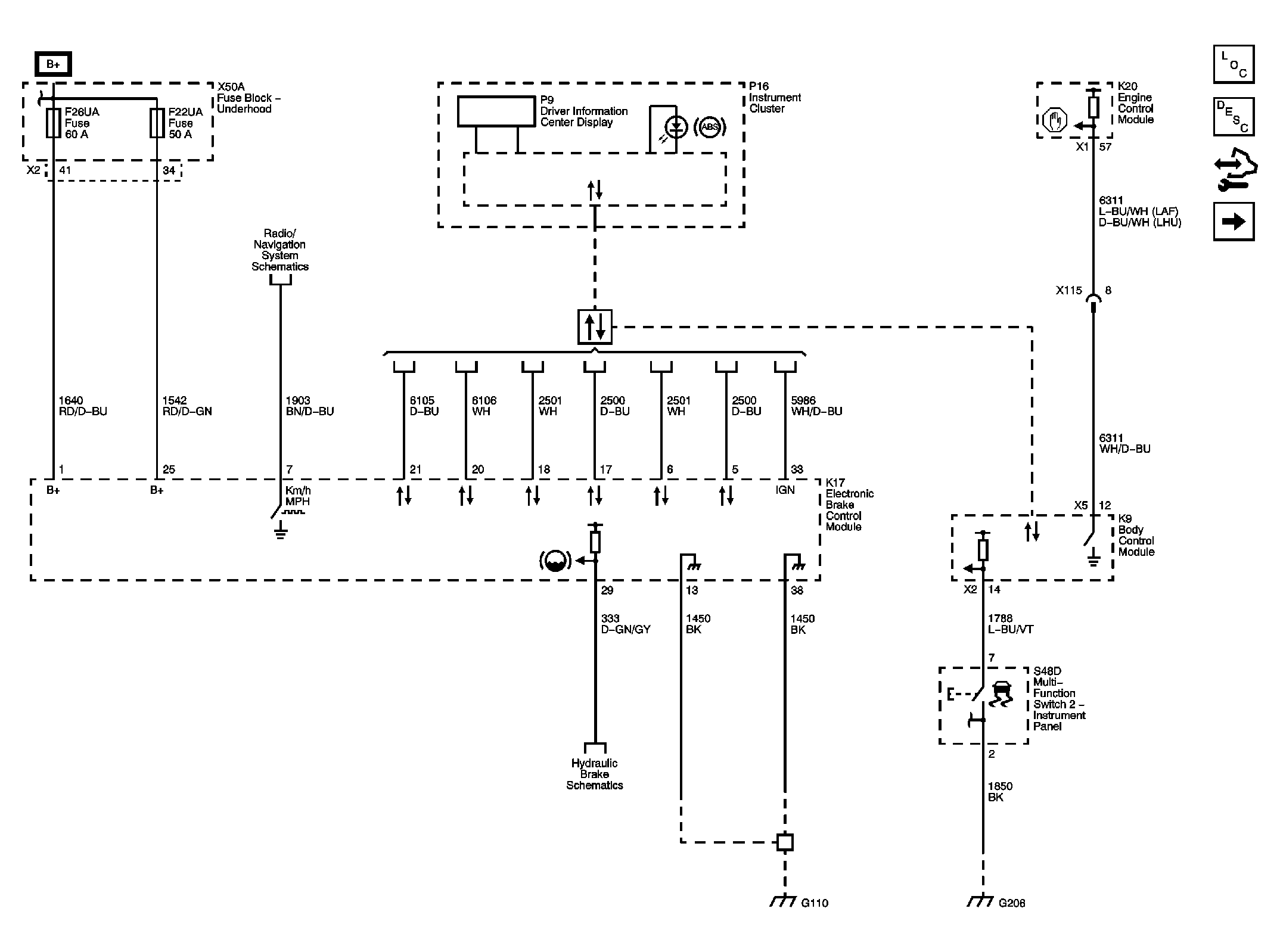

Fig 1: Module Power, Ground, Subsystem References Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

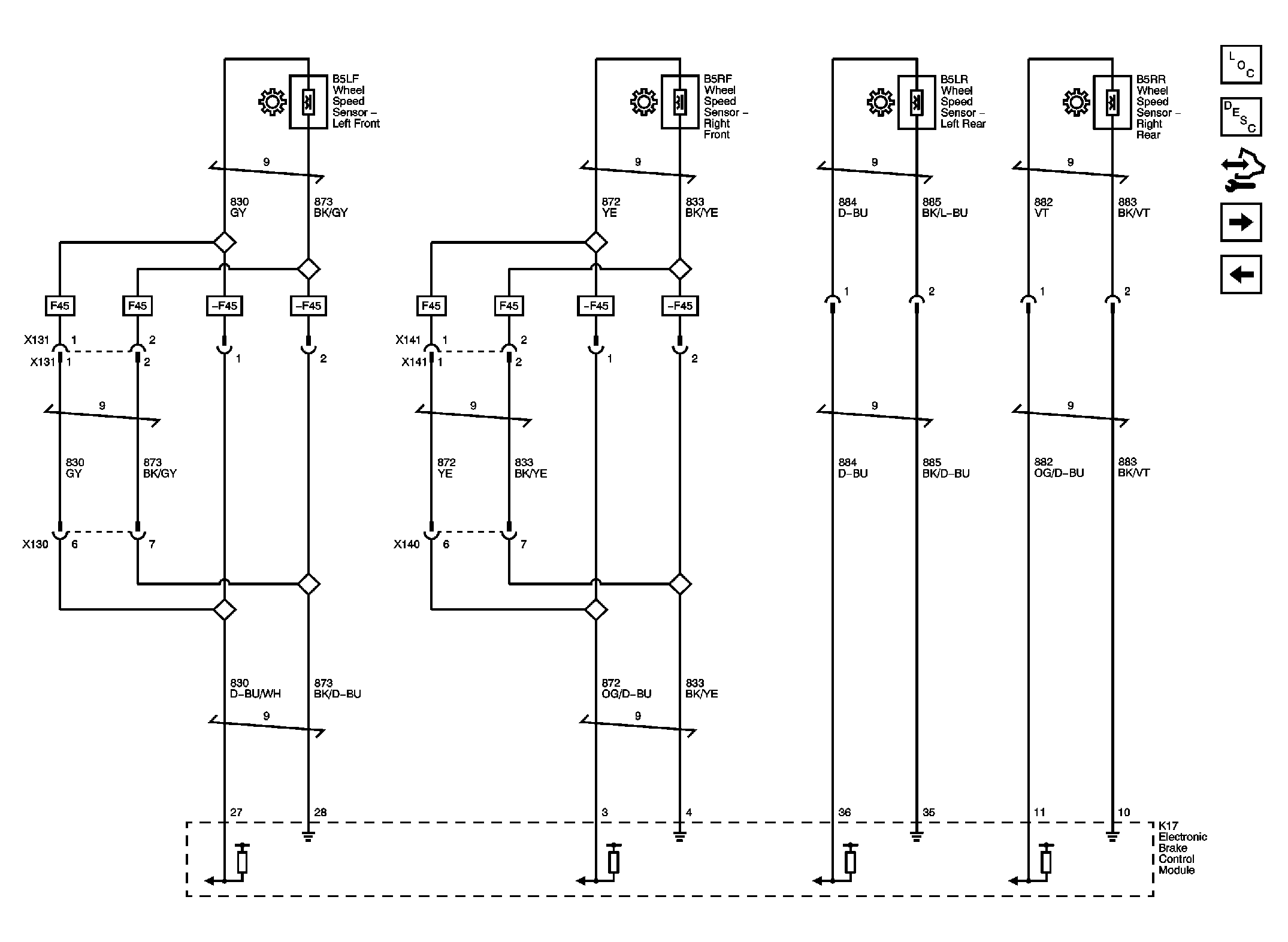

Fig 2: Wheel Speed Sensors Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

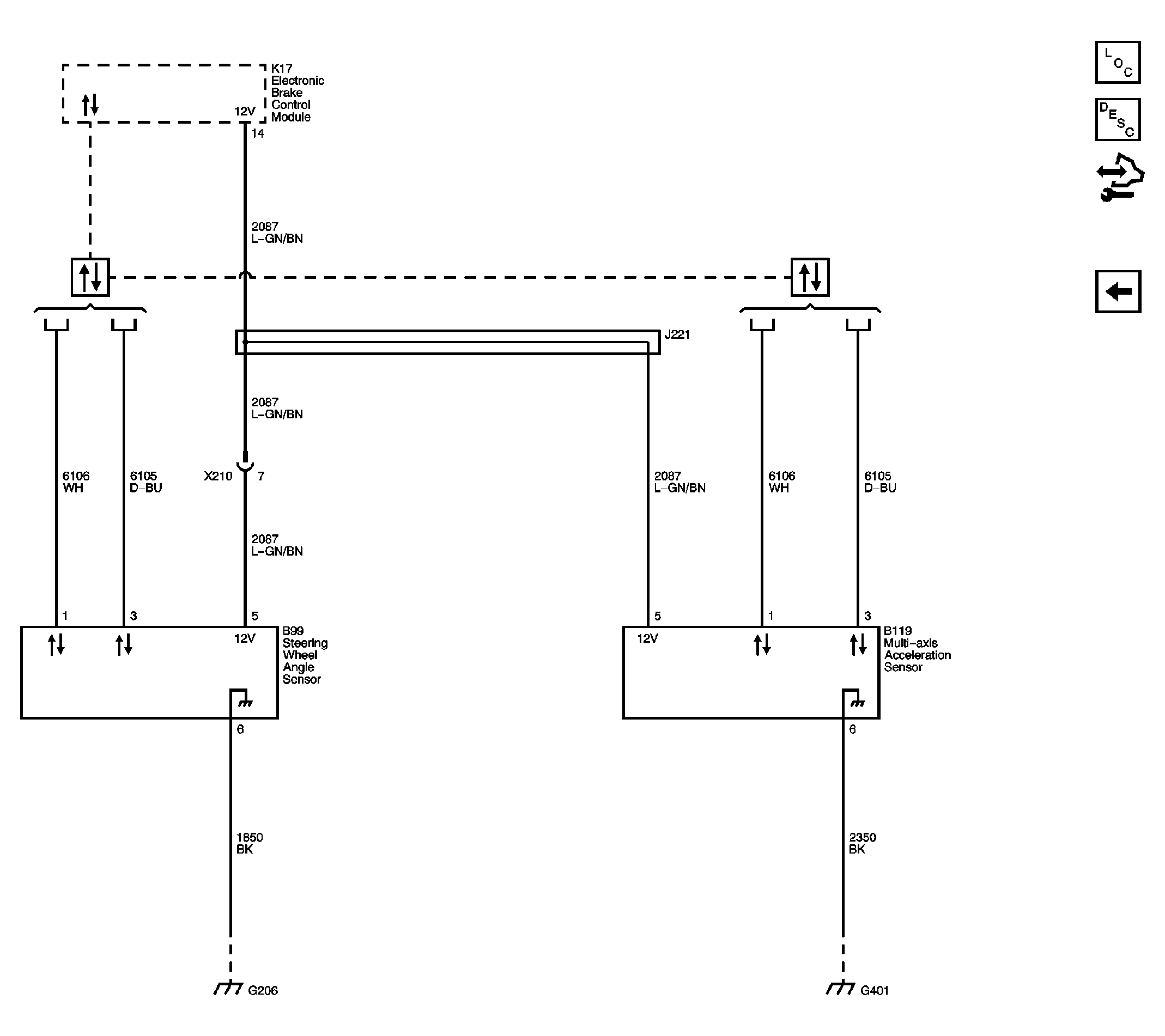

Fig 3: Yaw And Lateral Acceleration And Steering Angle Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
