Engine Control Module: Locations

Powertrain Component Views

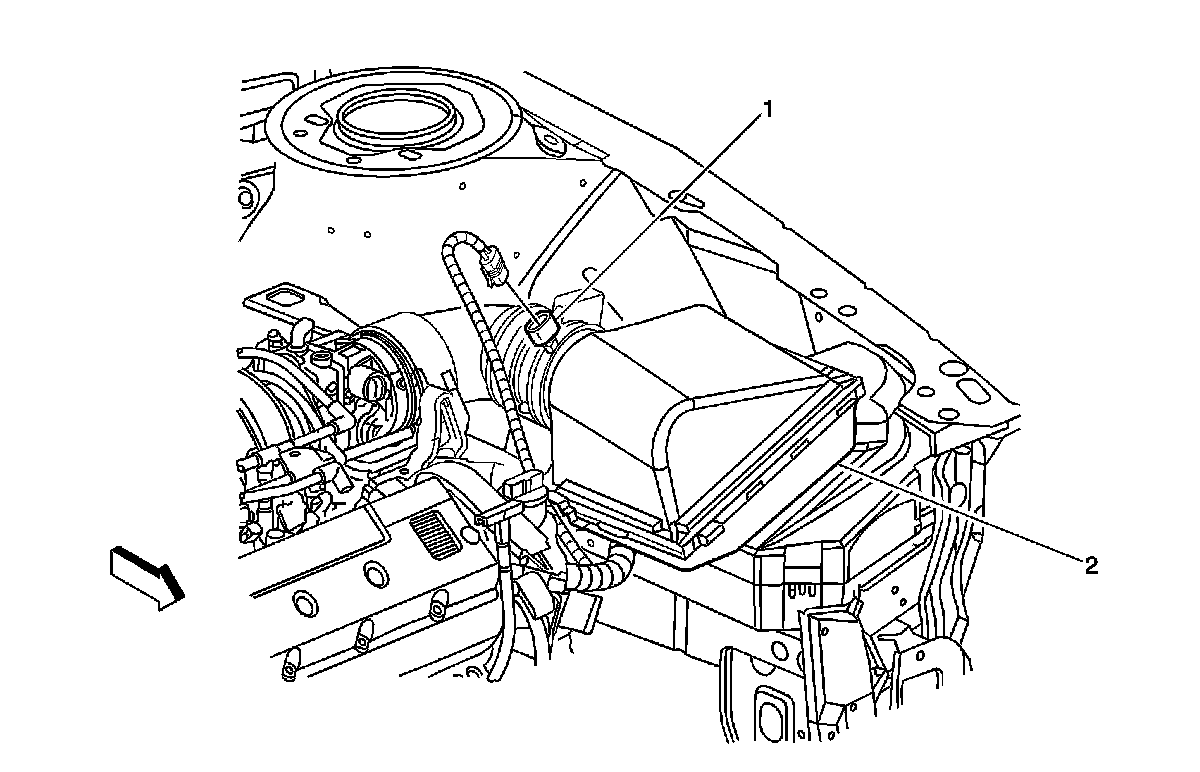

Left Front Corner of Engine Compartment Components (L37)

1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Engine Control Module (ECM) (in the Air Cleaner Assembly)
