Left Side and Rear of Engine Components

Powertrain Component Views

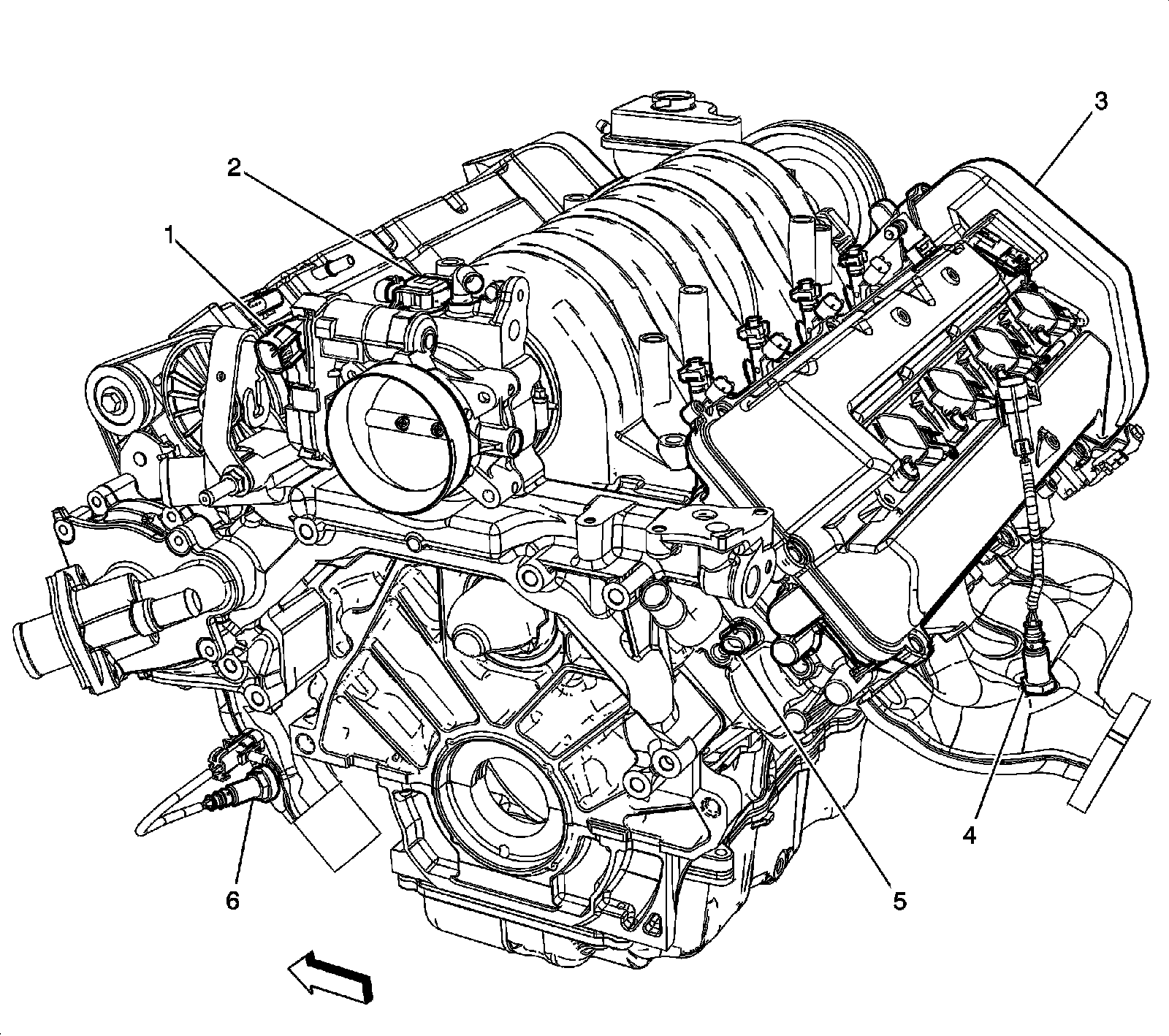

Left Side and Rear of Engine Components (L37)

1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Valve Cover
4 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
