Ground Views

Ground Views

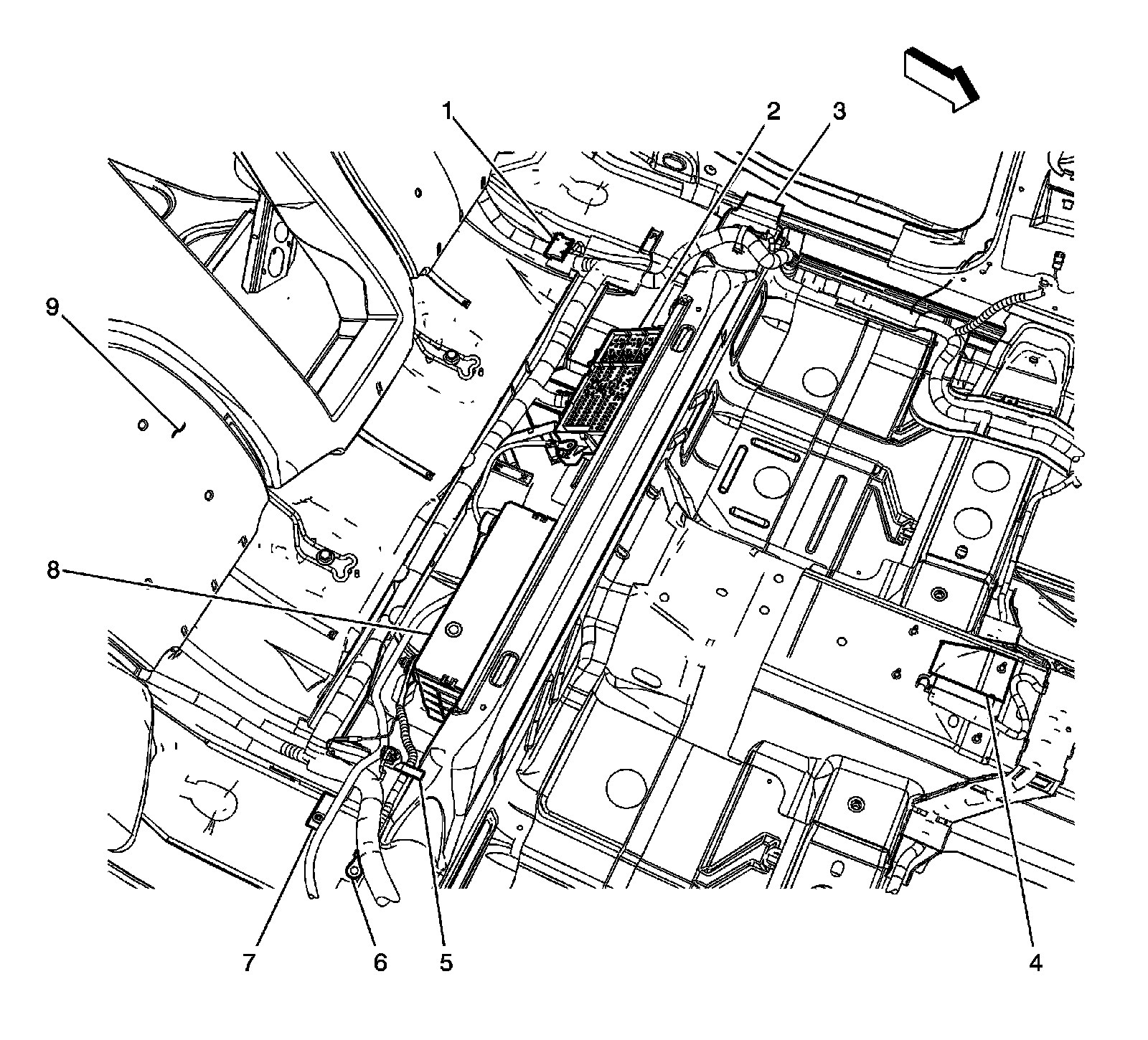

G301 and G303

1 - JX300
2 - Fuse Block - Rear
3 - G301
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Battery Current Sensor
6 - G303
7 - X335
8 - Battery
9 - Rear Seat
