Cornering Lamp




Component Connector End Views

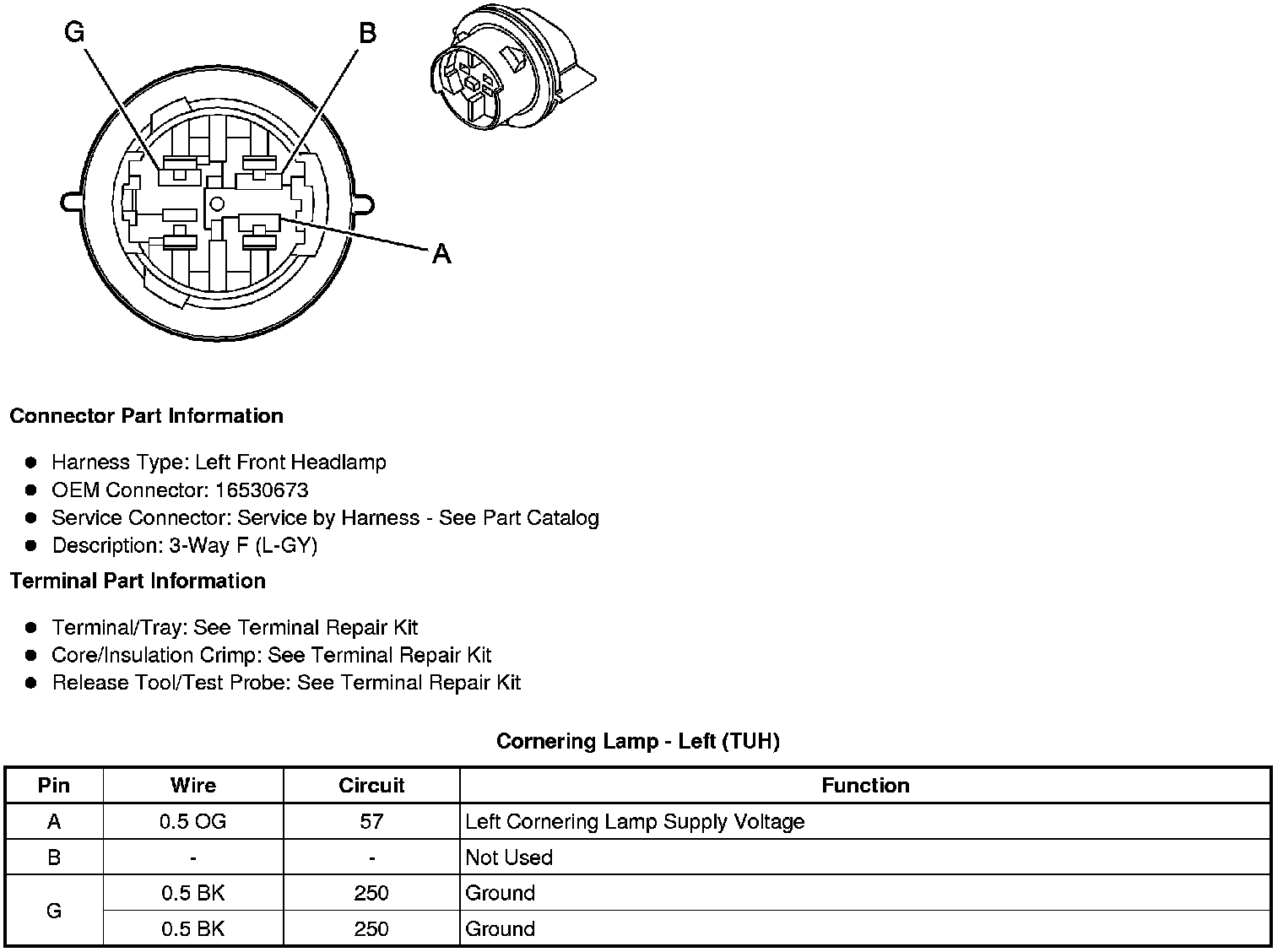

Cornering Lamp - Left (TUH)






Cornering Lamp - Right (TUH)
