Inflatable Restraint I/P Module X1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

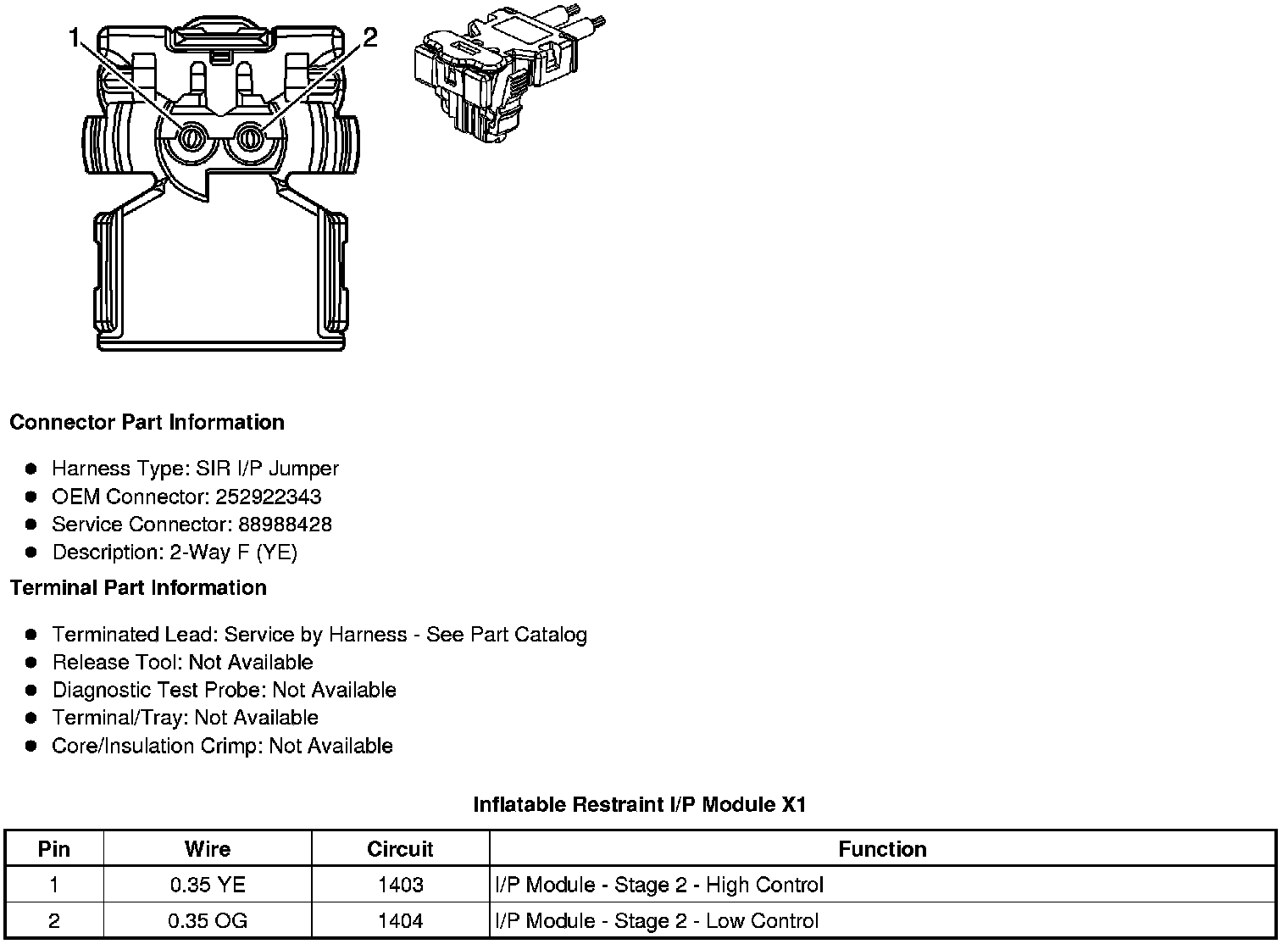

Inflatable Restraint I/P Module X1
Component Connector End Views
Inflatable Restraint I/P Module X1
