Steering Control Module: Diagrams




Component Connector End Views

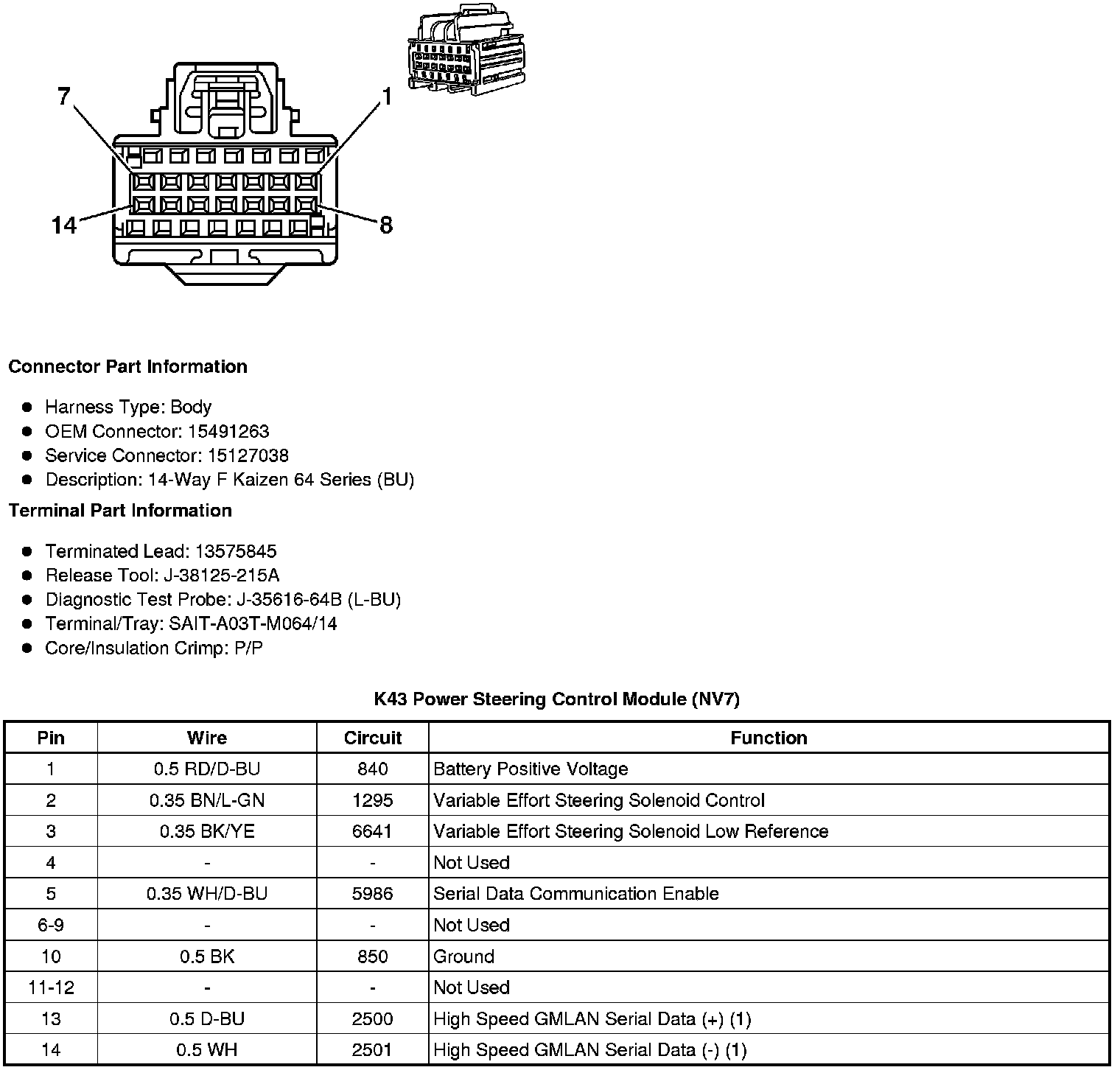

K43 Power Steering Control Module (NV7)

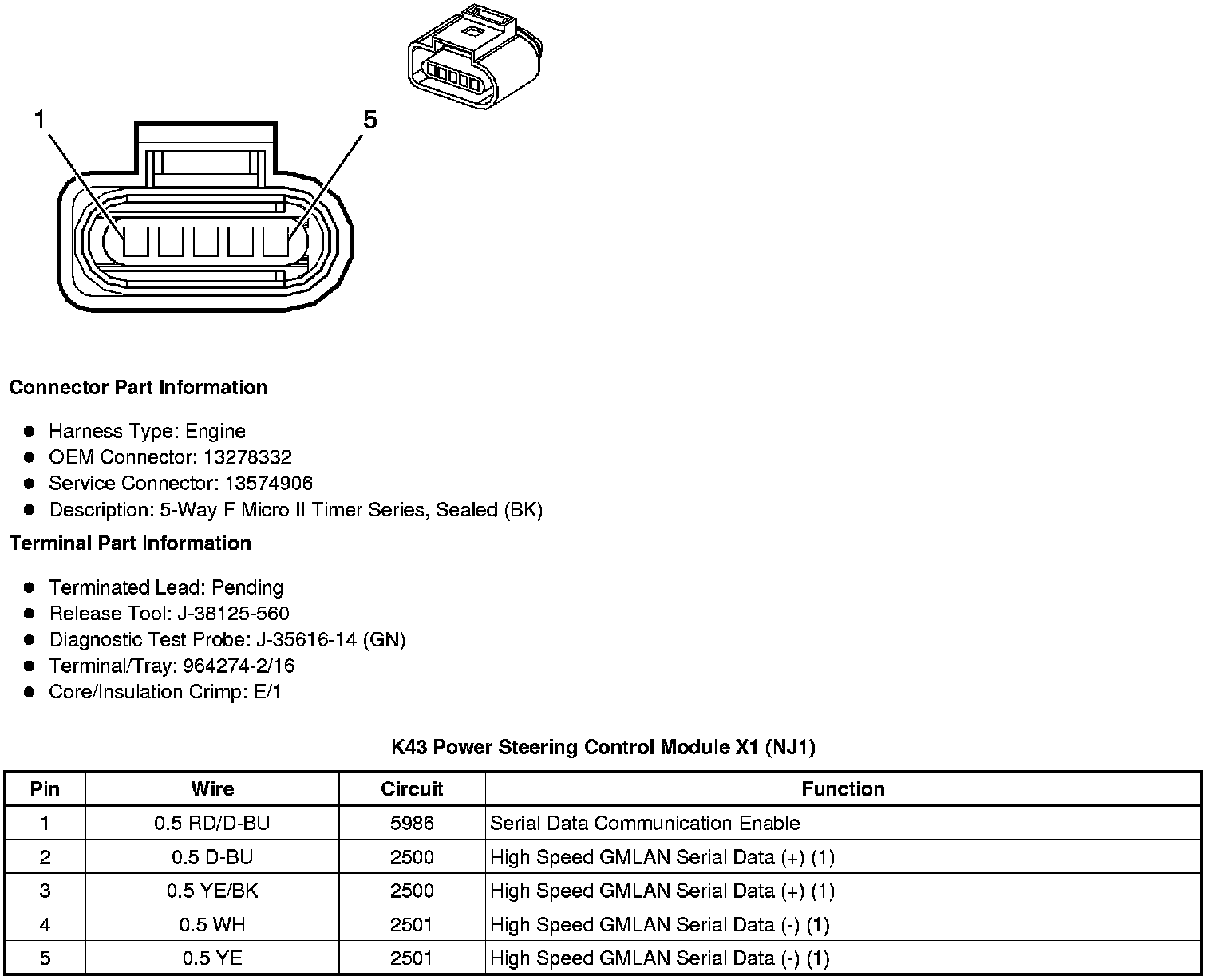

K43 Power Steering Control Module X1 (NJ1)

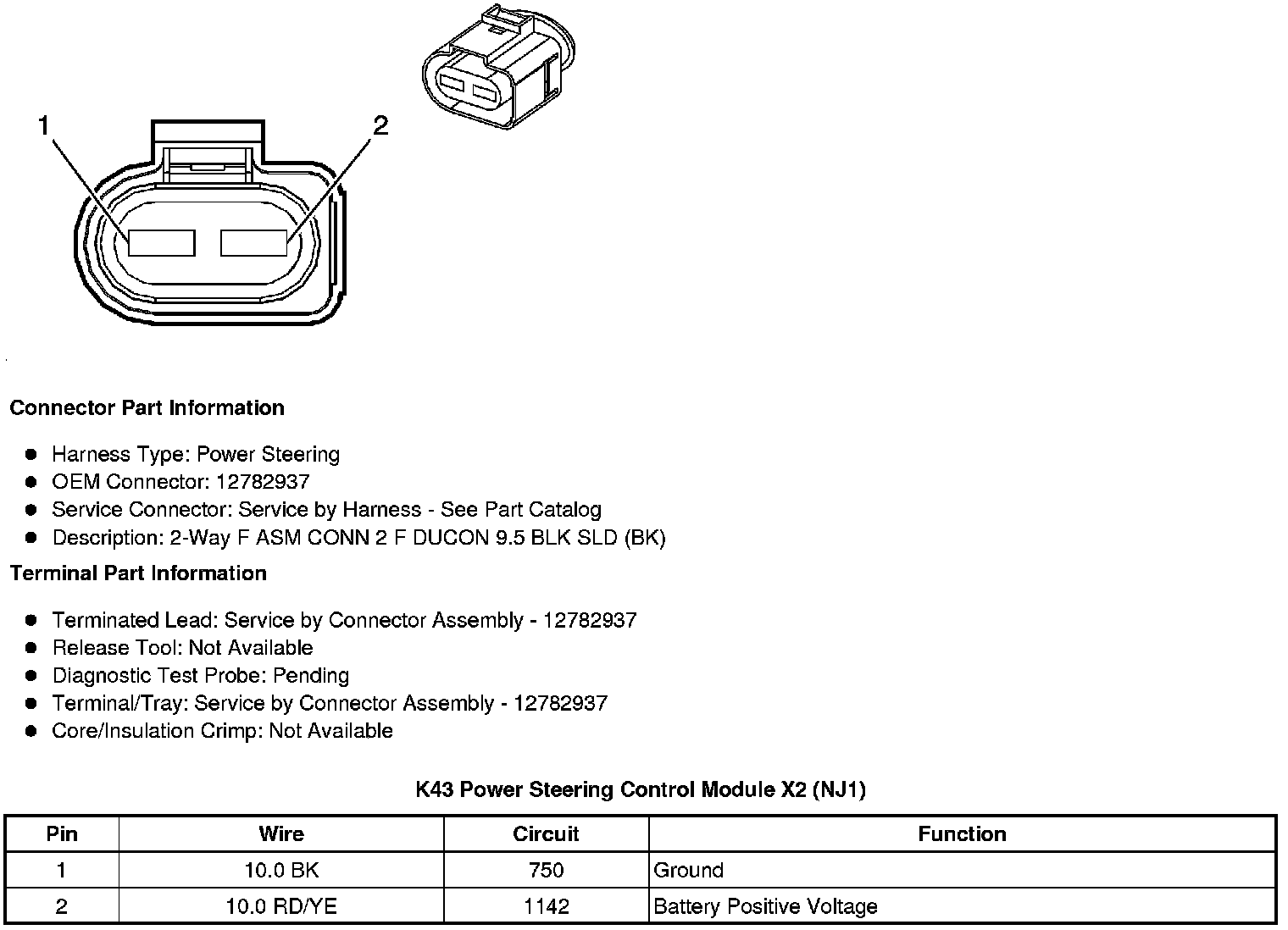

K43 Power Steering Control Module X2 (NJ1)
