Air Bag Control Module: Diagrams




Component Connector End Views

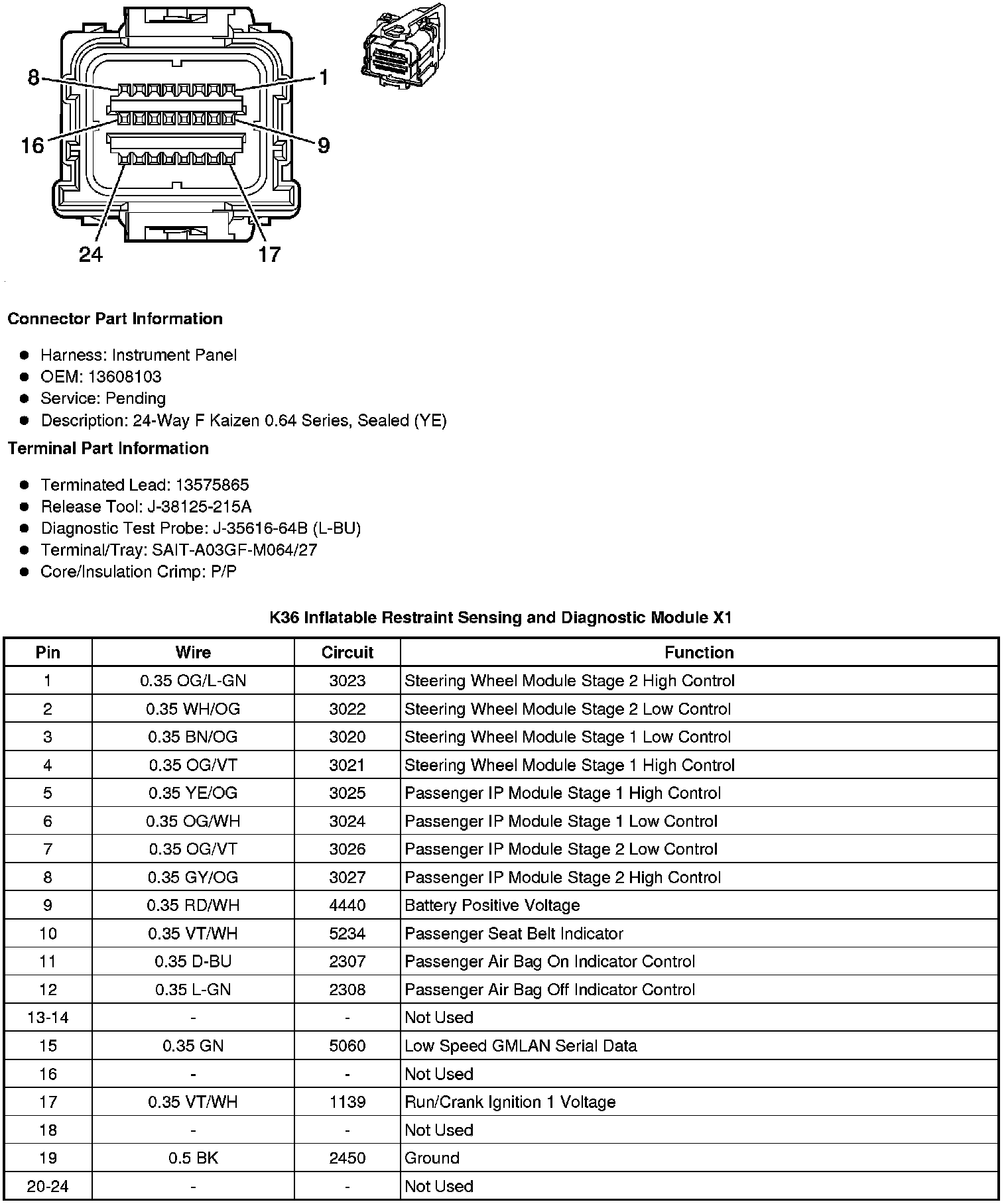

K36 Inflatable Restraint Sensing and Diagnostic Module X1

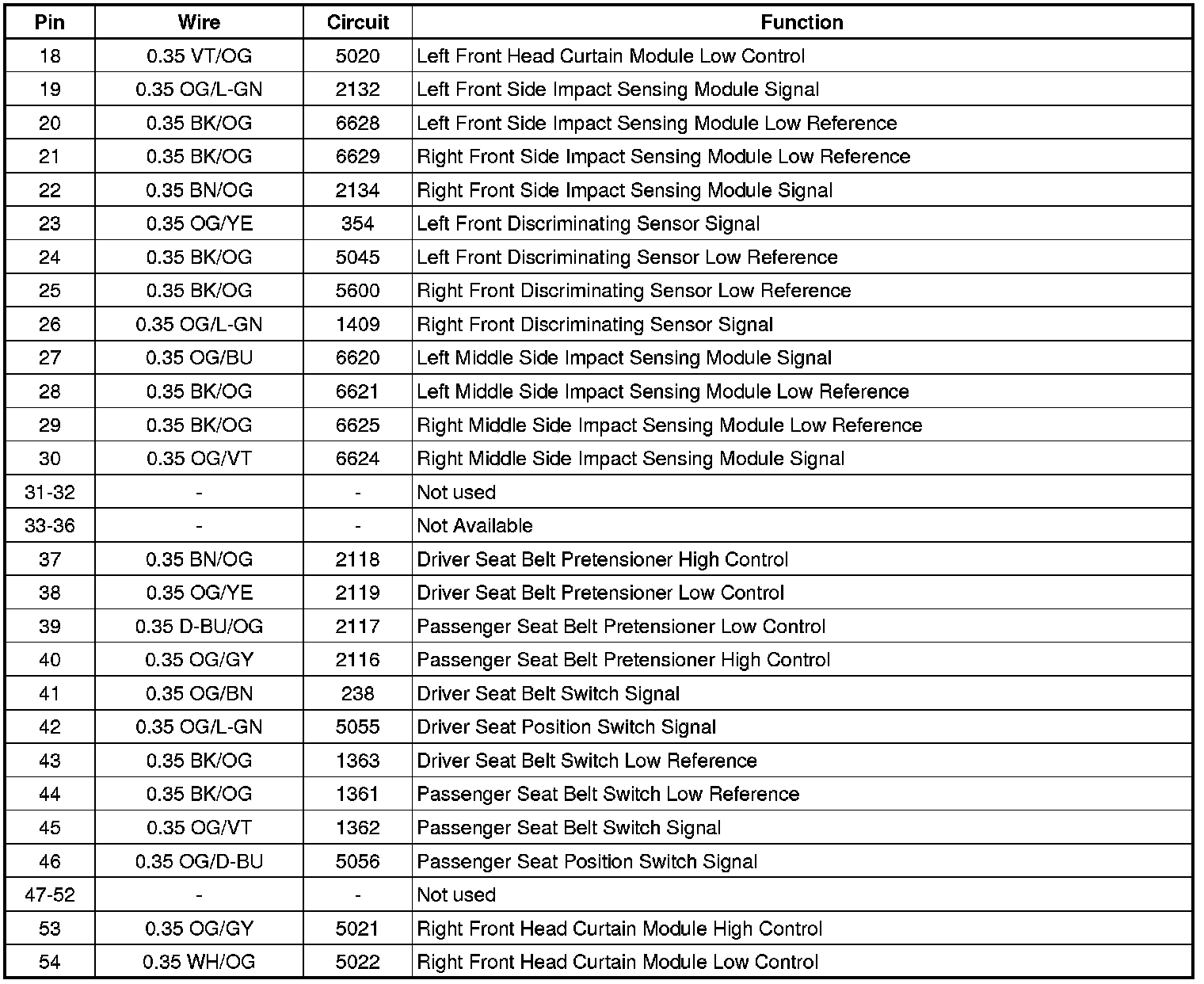

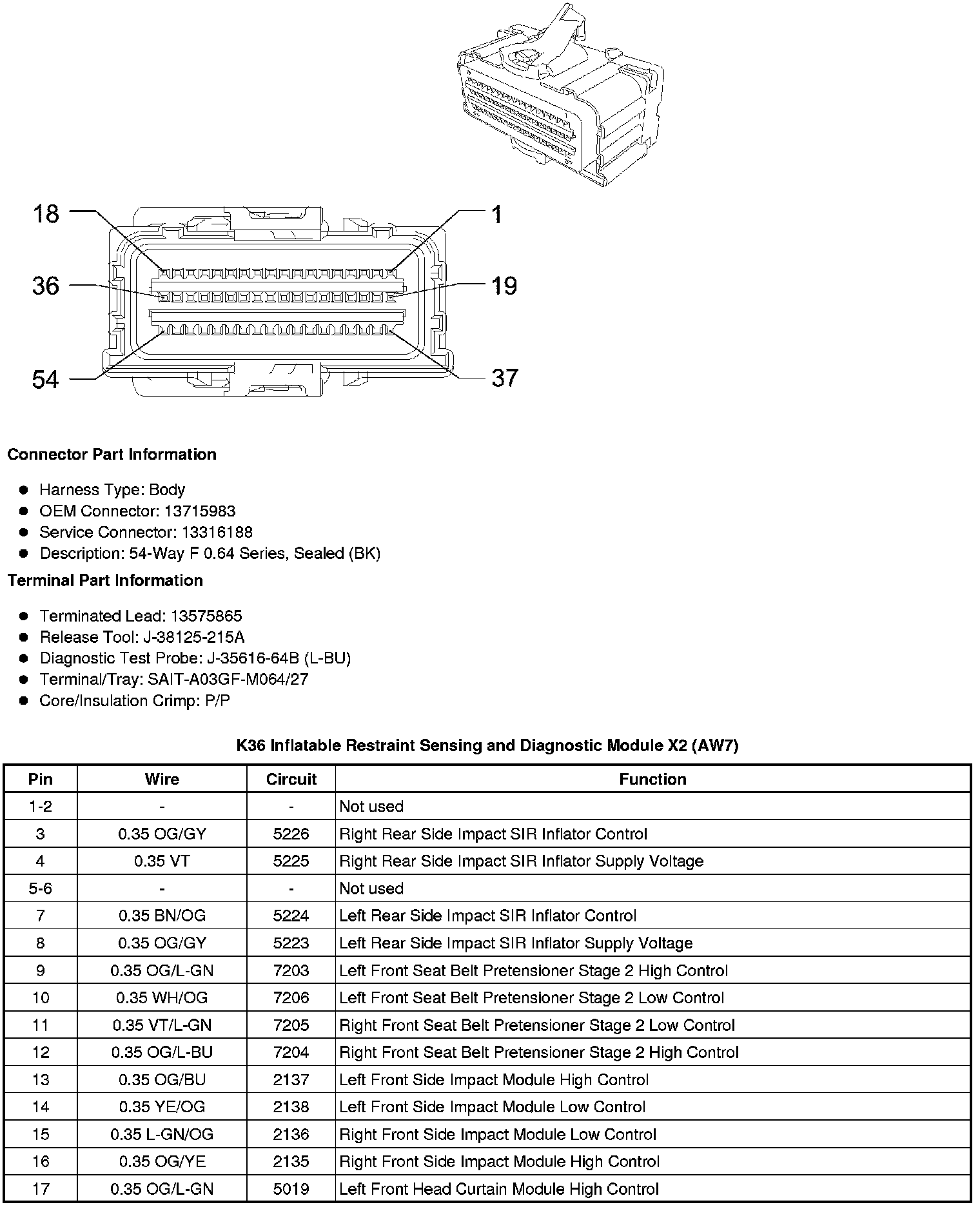

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)

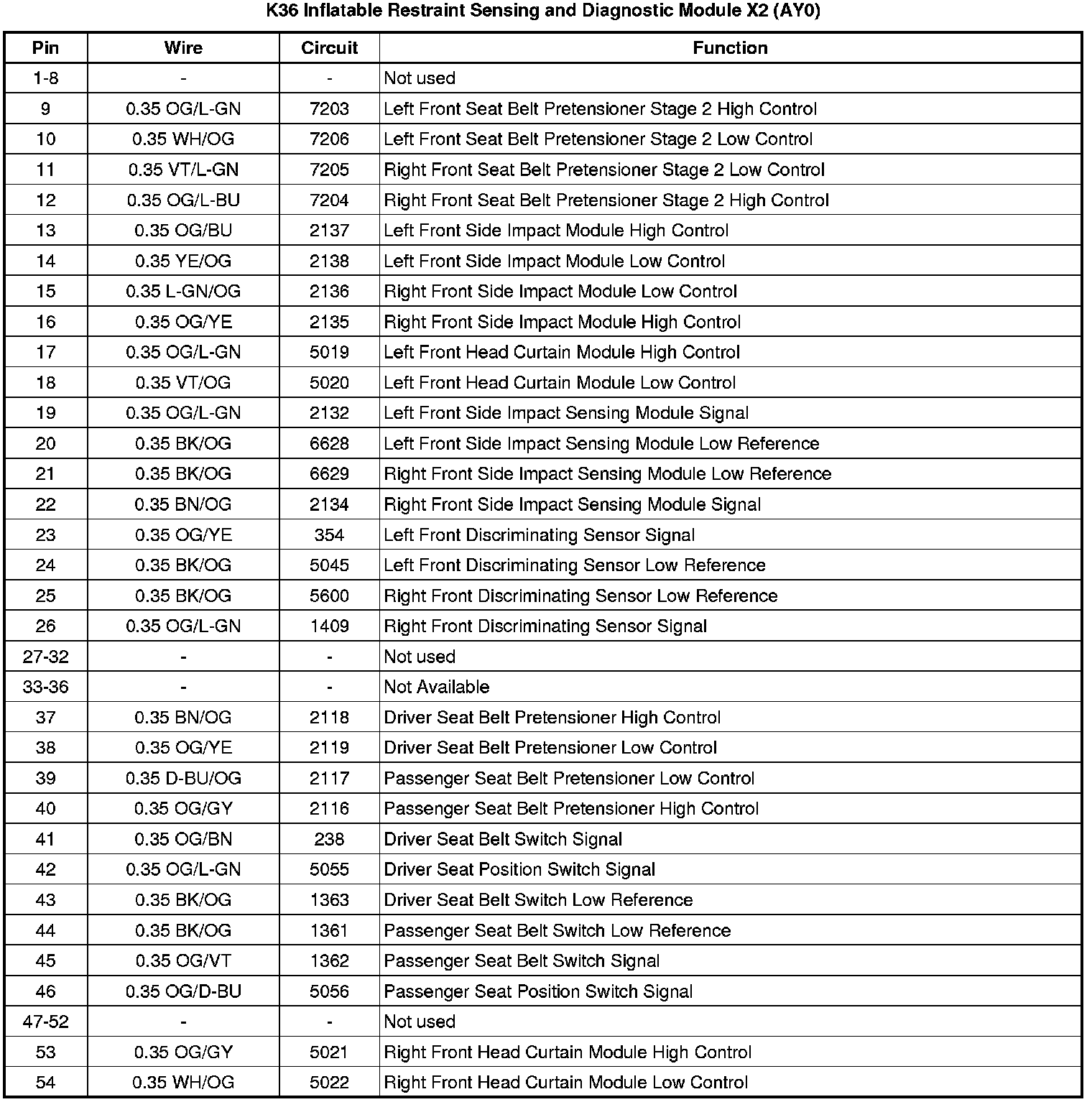

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0)
