Fuse Block - Instrument Panel

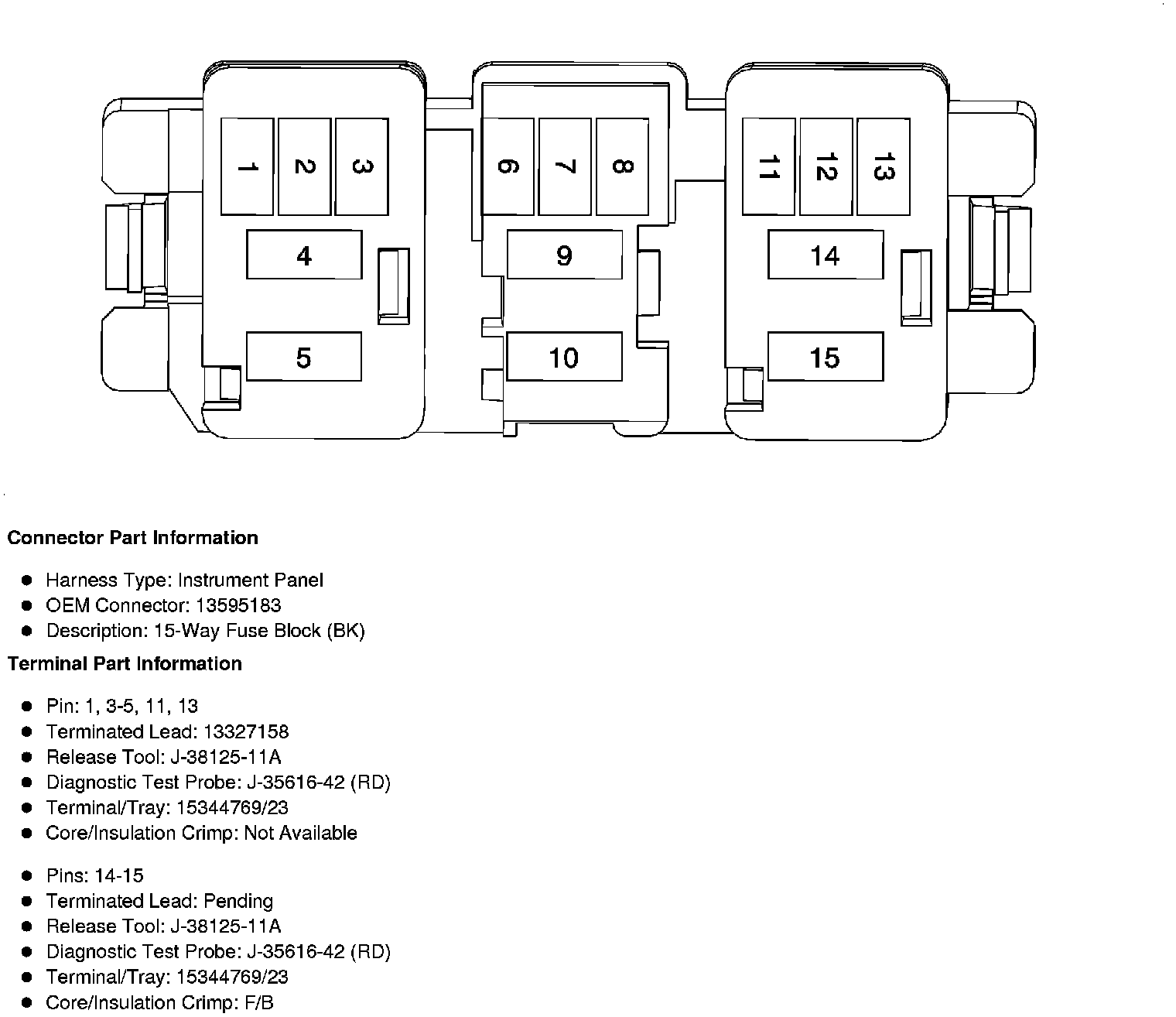

Electrical Center Identification Views

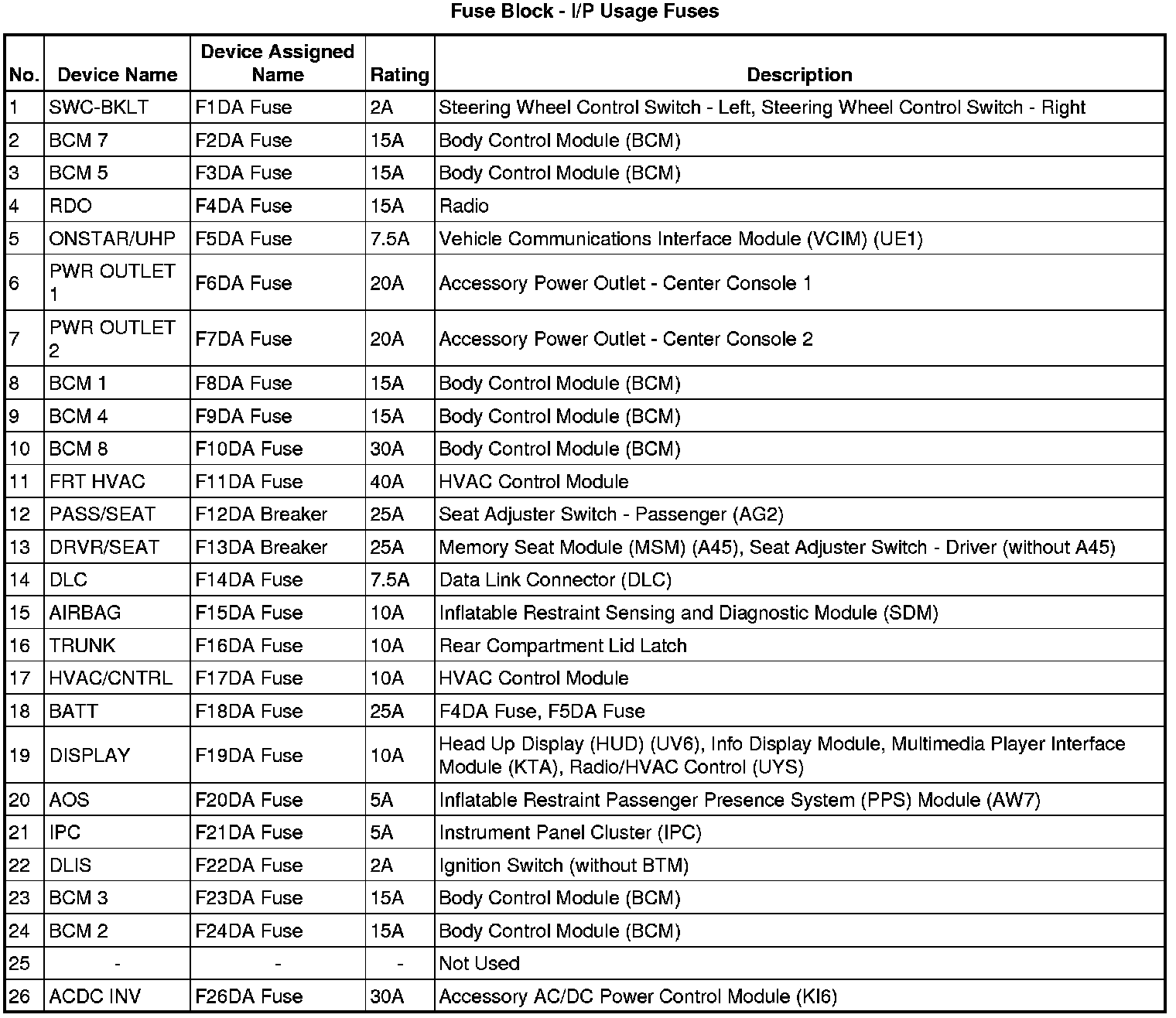

Fuse Block - I/P Top View Fuses









X51A Fuse Block - Instrument Panel - Top View Relays

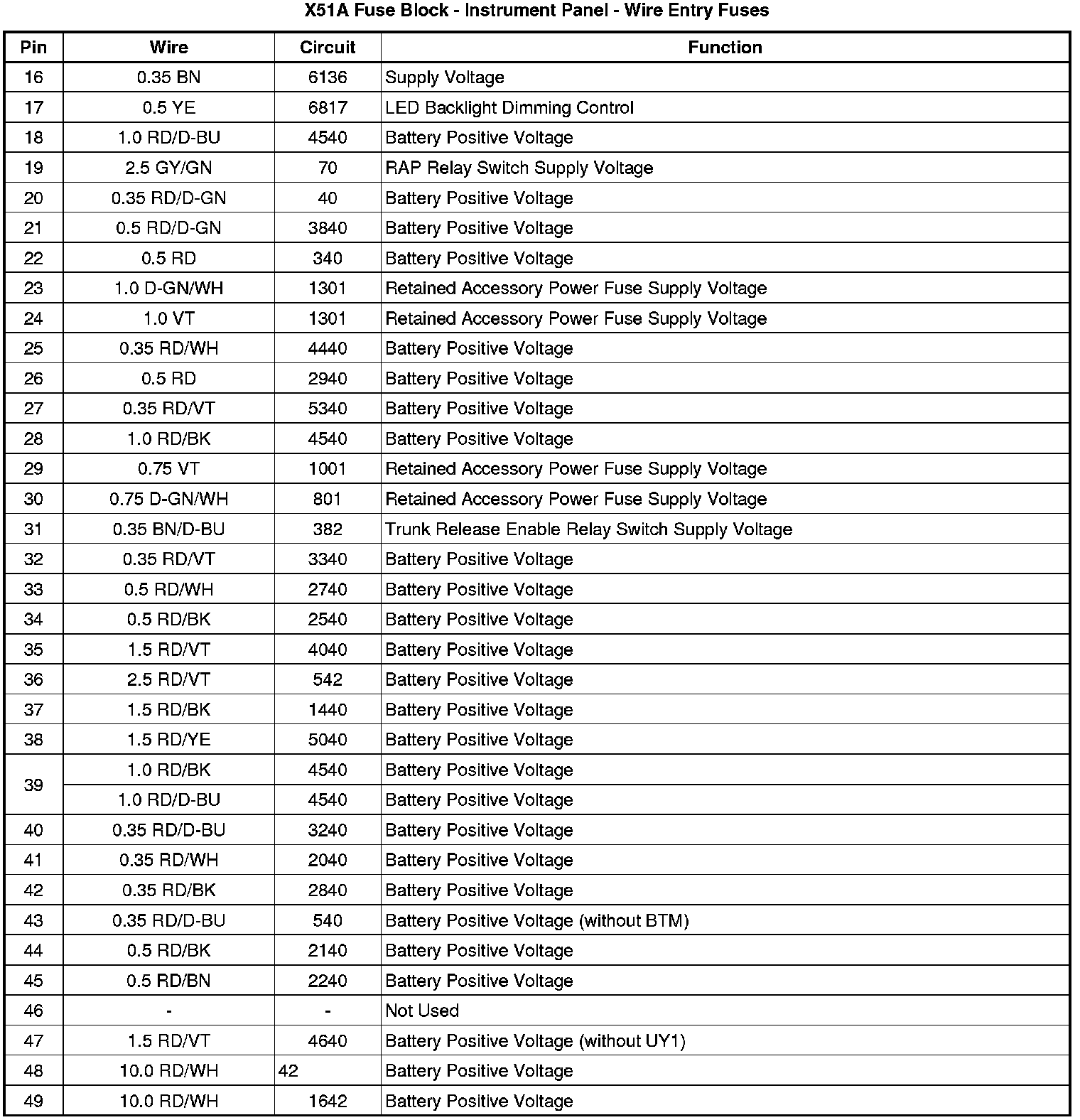

X51A Fuse Block - Instrument Panel - Bottom View Fuses













X51A Fuse Block - Instrument Panel - Bottom View Relays
