Body Control System Wiring Schematics

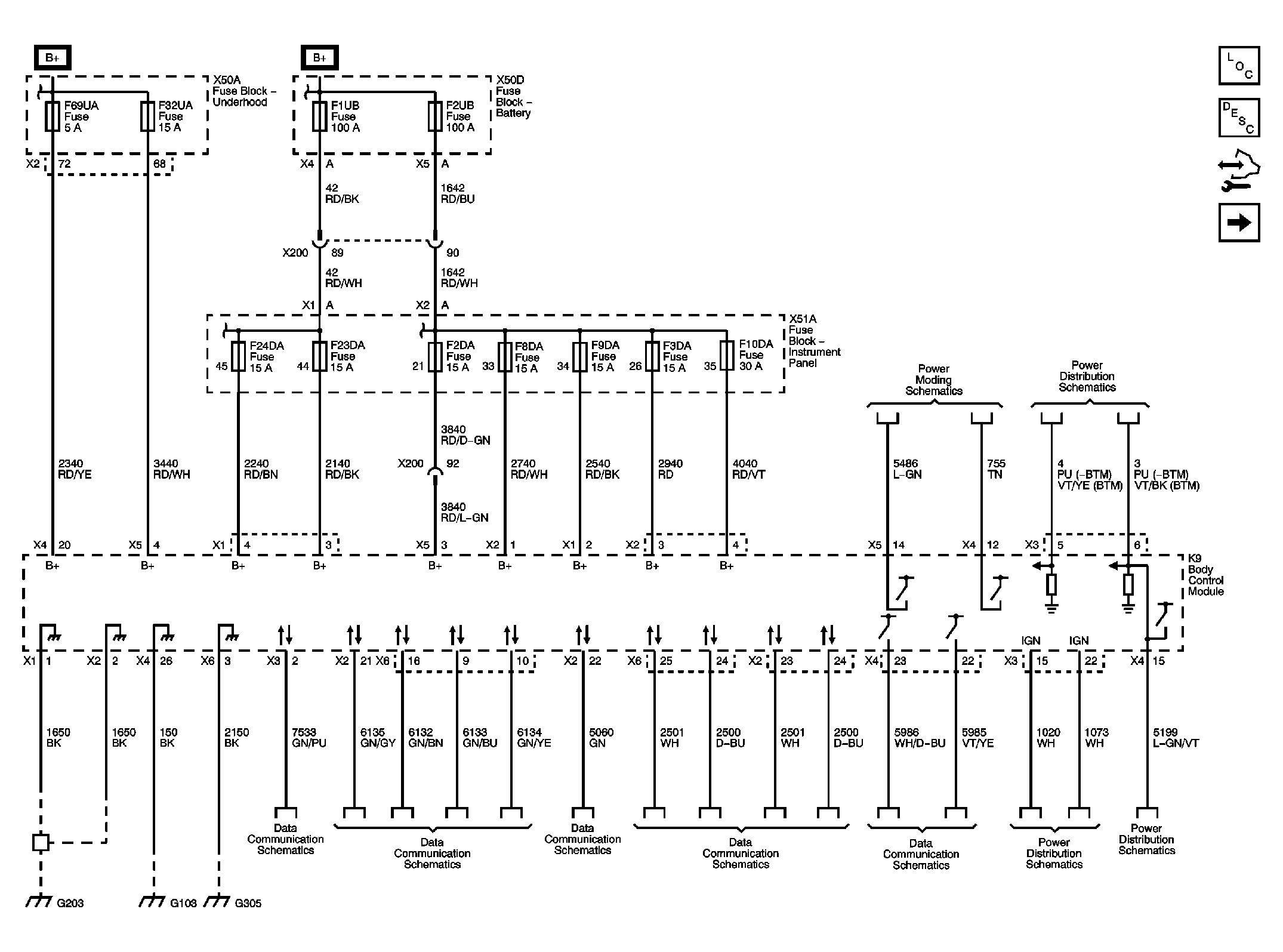

Fig 1: Power, Ground, and Data Communications Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

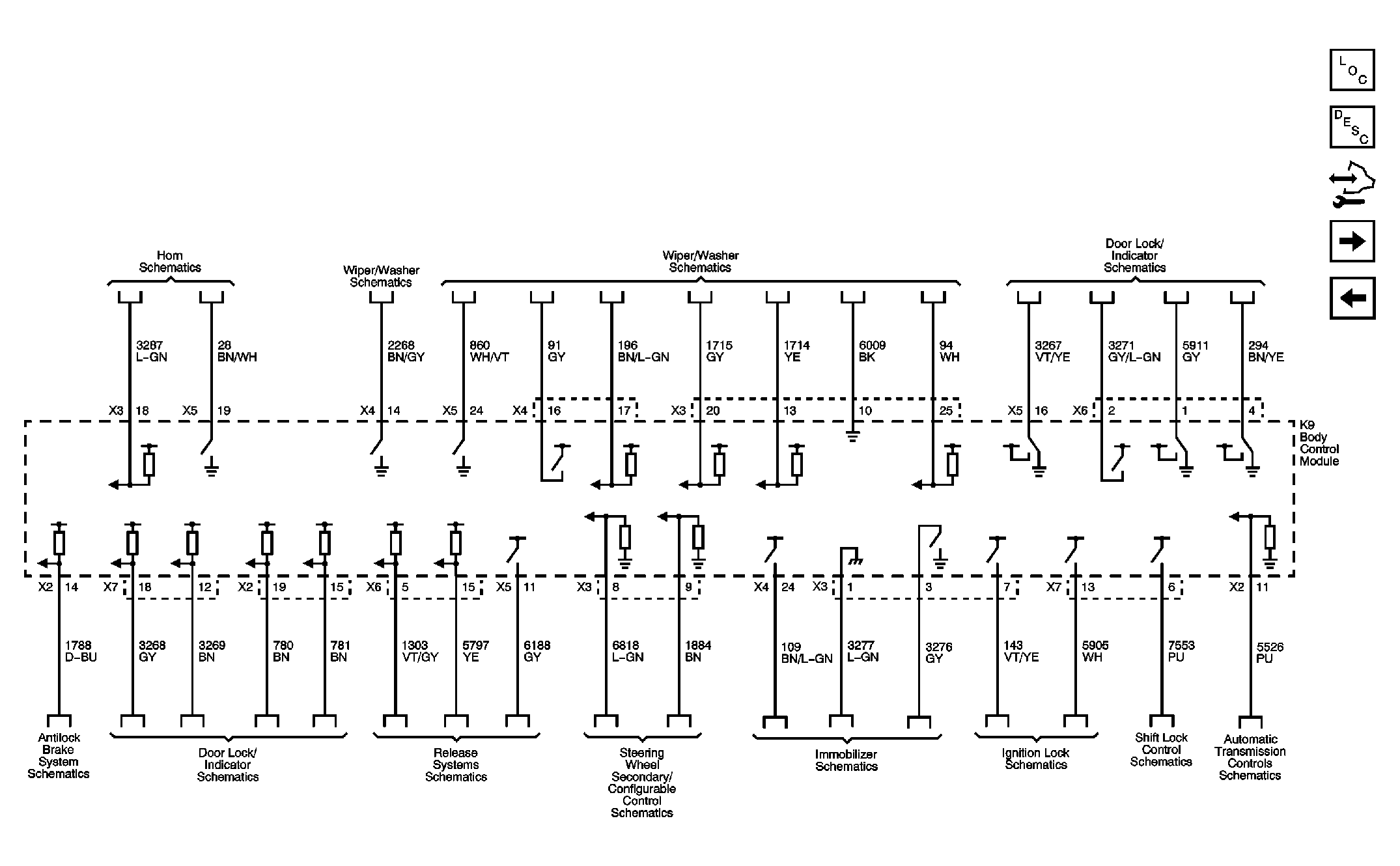

Fig 2: References Wiring Schematic (1 of 3)

Courtesy of GENERAL MOTORS CORP.

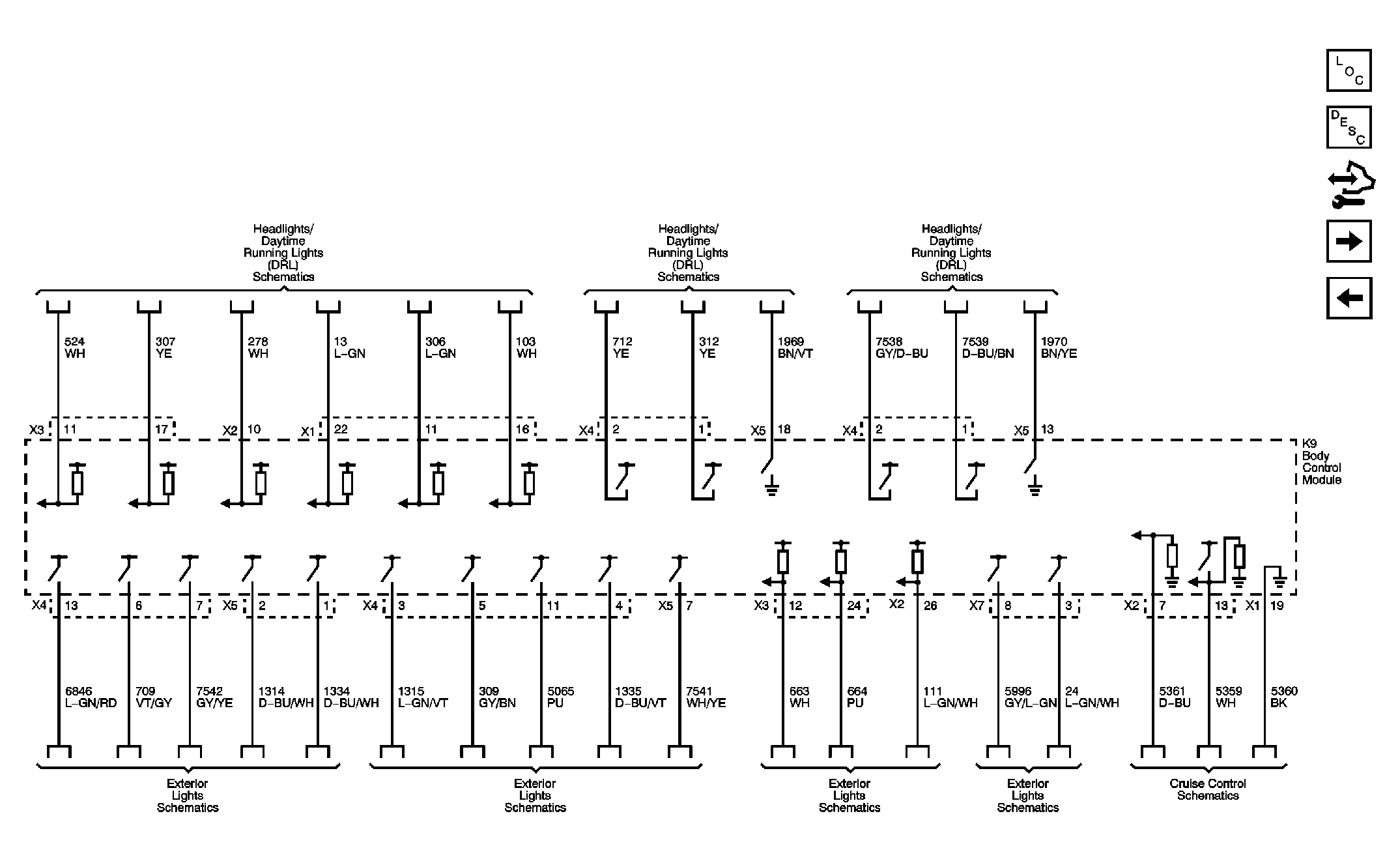

Fig 3: References Wiring Schematic (2 of 3)

Courtesy of GENERAL MOTORS CORP.

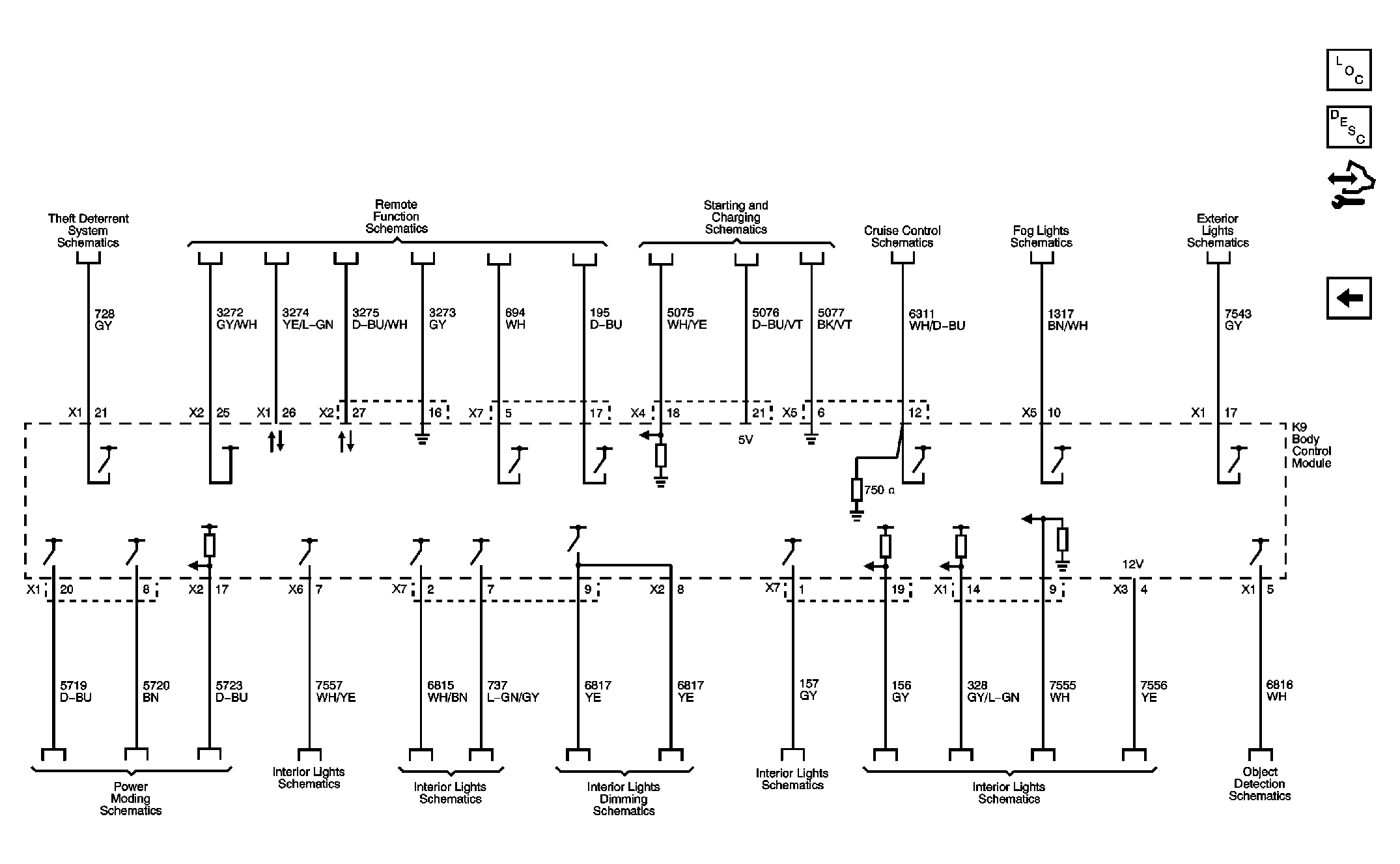

Fig 4: References Wiring Schematic (3 of 3)

Courtesy of GENERAL MOTORS CORP.
