Mass Airflow Sensor with Intake Air Temperature Sensor Replacement (LF1)

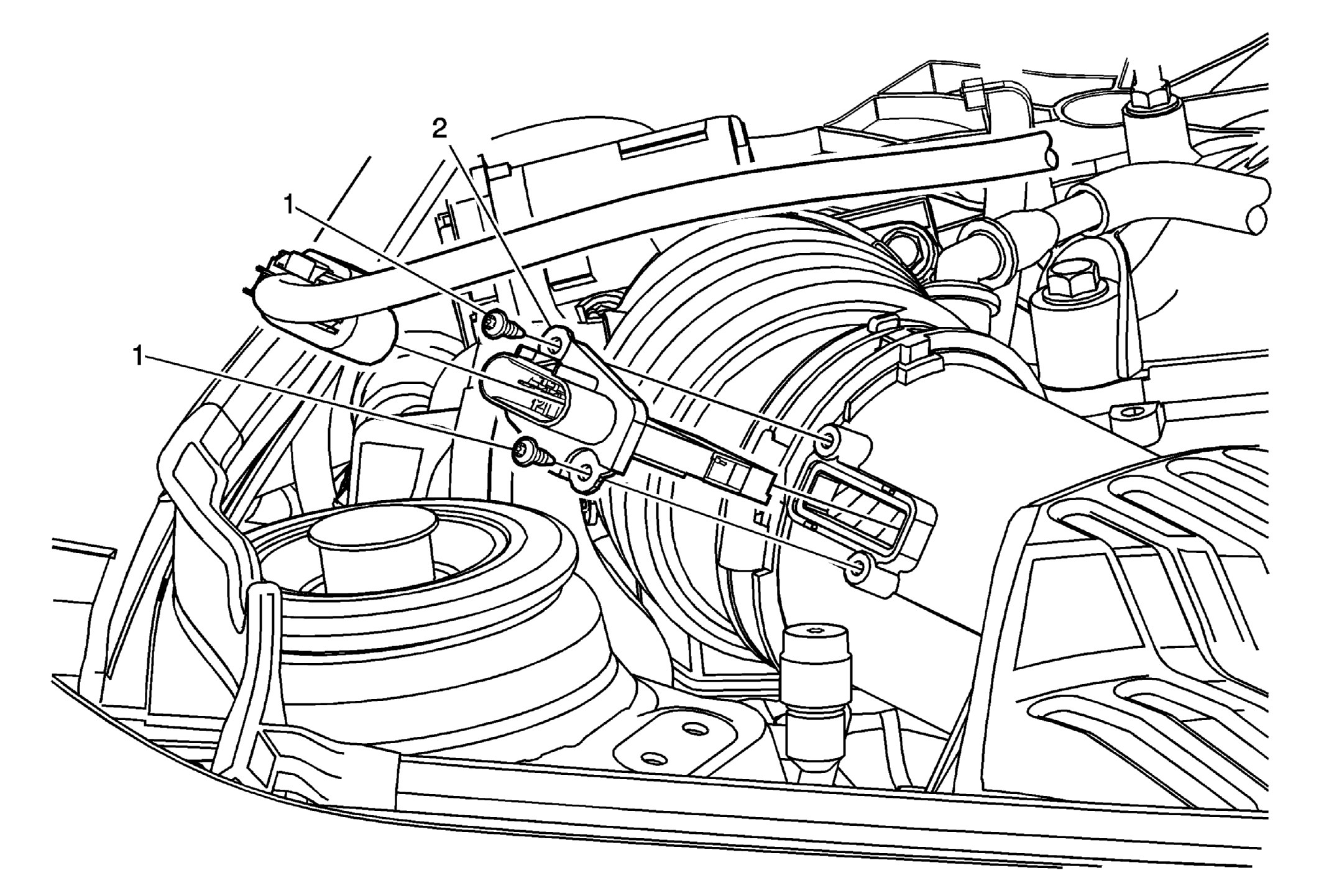

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor (LF1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  3 N.m (27 lb in)
2	Mass Airflow Sensor Procedure:  Disconnect the mass airflow sensor harness connector.
