Moveable Window Wiring Schematics

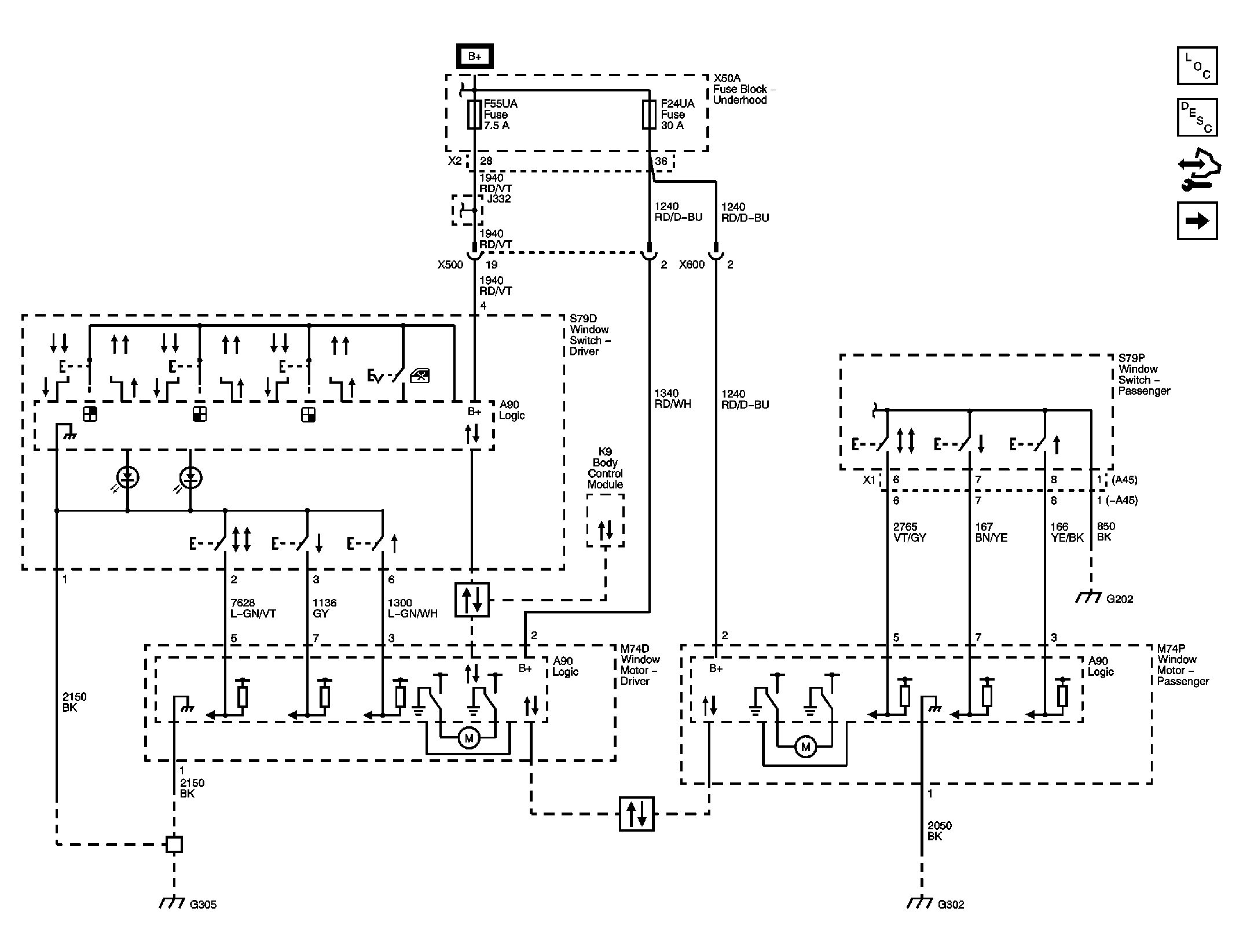

Fig 1: Front Wiring Schematic
GM2389985Courtesy of GENERAL MOTORS CORP.

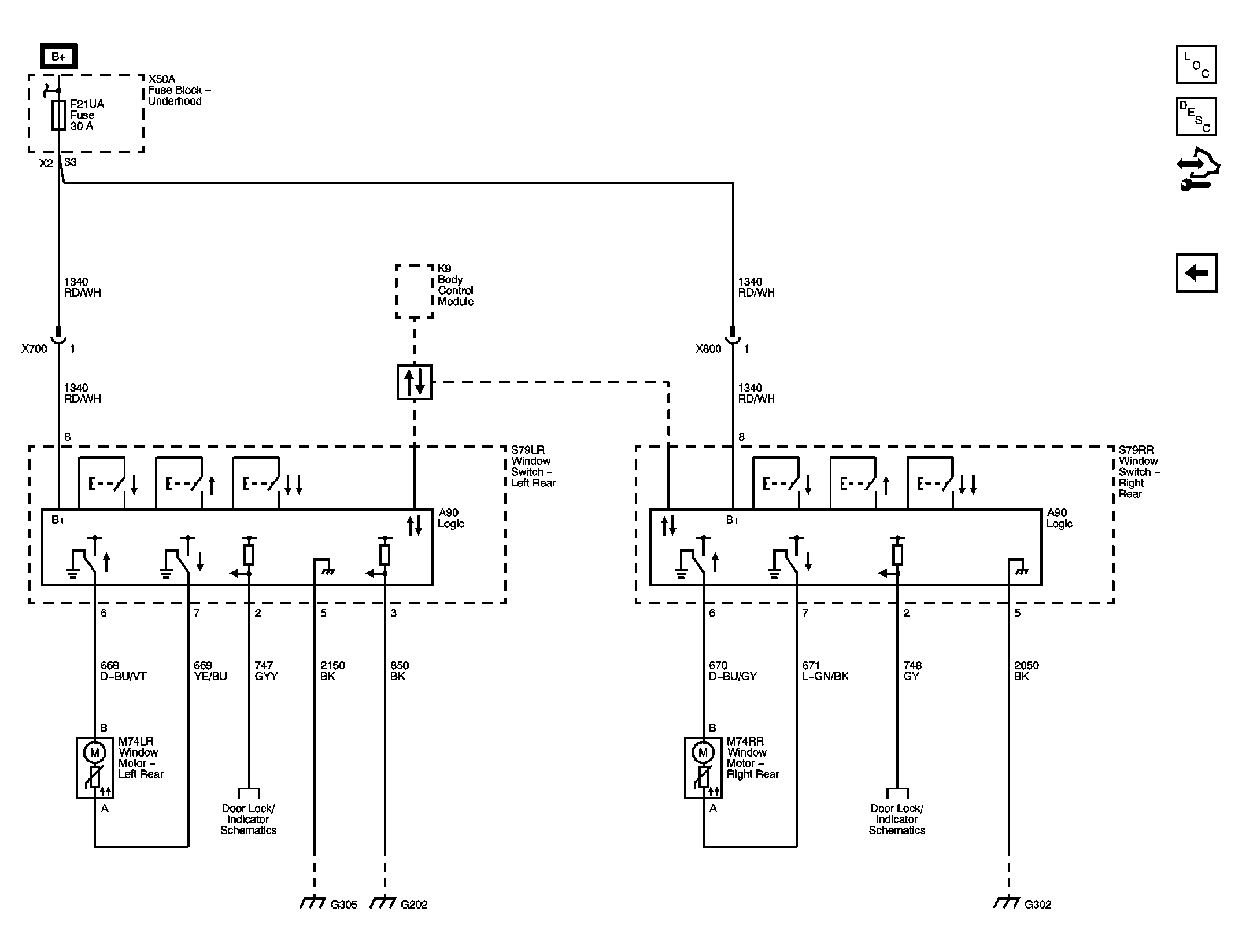

Fig 2: Rear Wiring Schematic
GM2389986Courtesy of GENERAL MOTORS CORP.
