Steering Wheel Secondary/Configurable Control Wiring Schematic

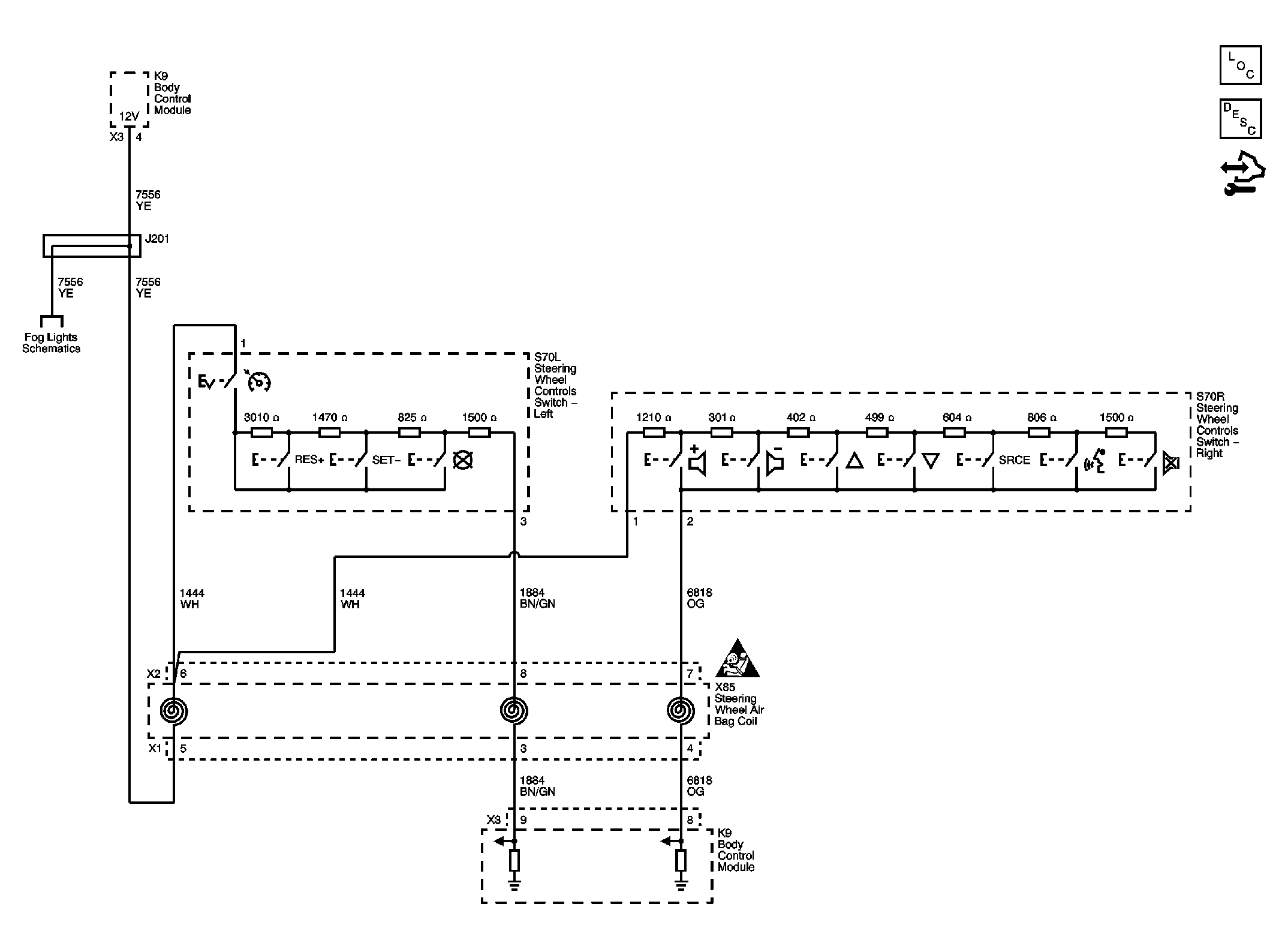

Fig 1: Steering Wheel Secondary/Configurable Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
