Ignition Coil: Diagrams




Component Connector End Views

T8A Ignition Coil 1 (LAF)





T8A Ignition Coil 1 (LF1 or LLT)





T8B Ignition Coil 2 (LAF)





T8B Ignition Coil 2 (LF1 or LLT)





T8C Ignition Coil 3 (LAF)





T8C Ignition Coil 3 (LF1 or LLT)





T8D Ignition Coil 4 (LAF)

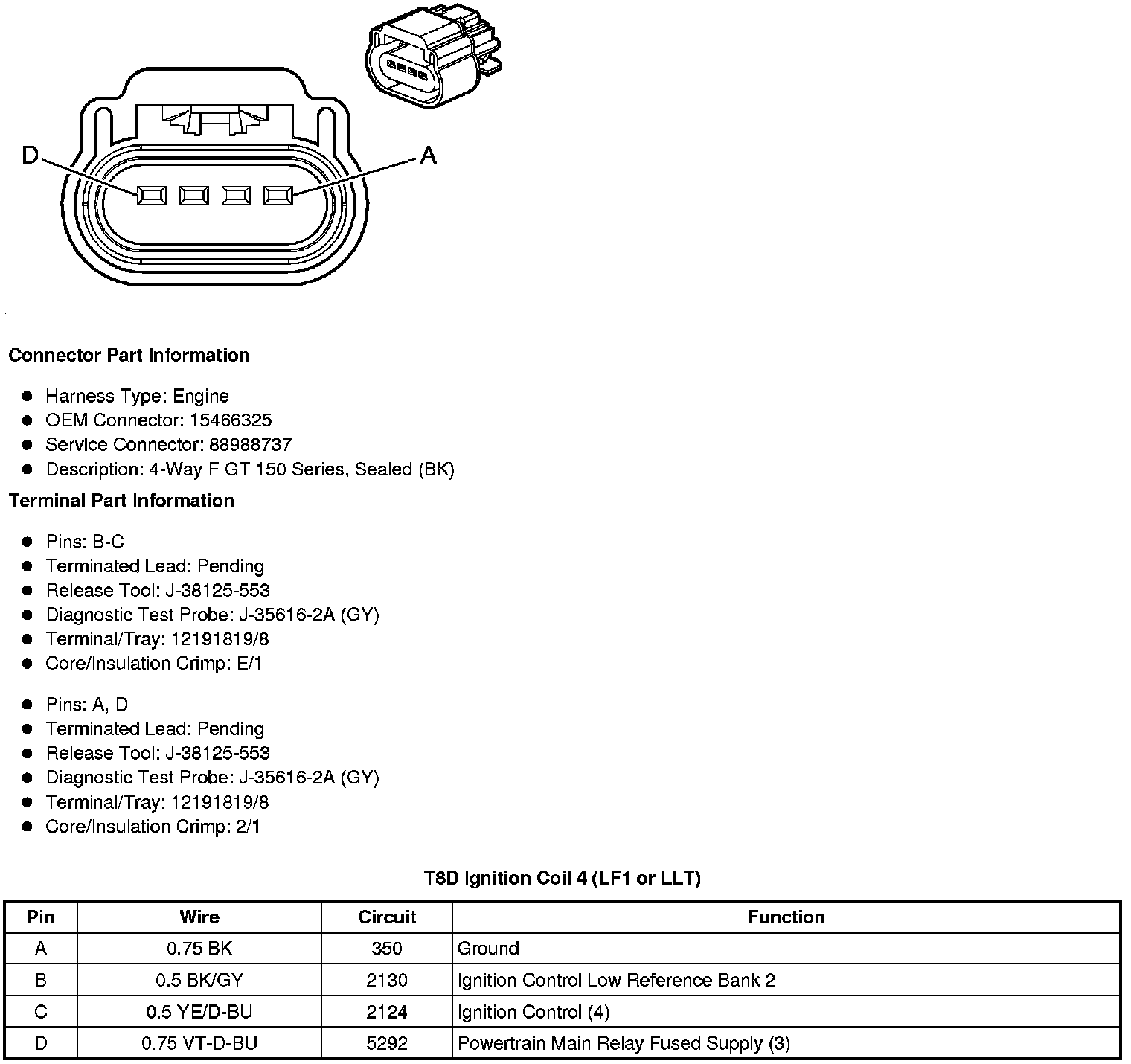

T8D Ignition Coil 4 (LF1 or LLT)





T8E Ignition Coil 5 (LF1 or LLT)





T8F Ignition Coil 6 (LF1 or LLT)
