Transmission Position Sensor/Switch: Diagrams

Component Connector End Views

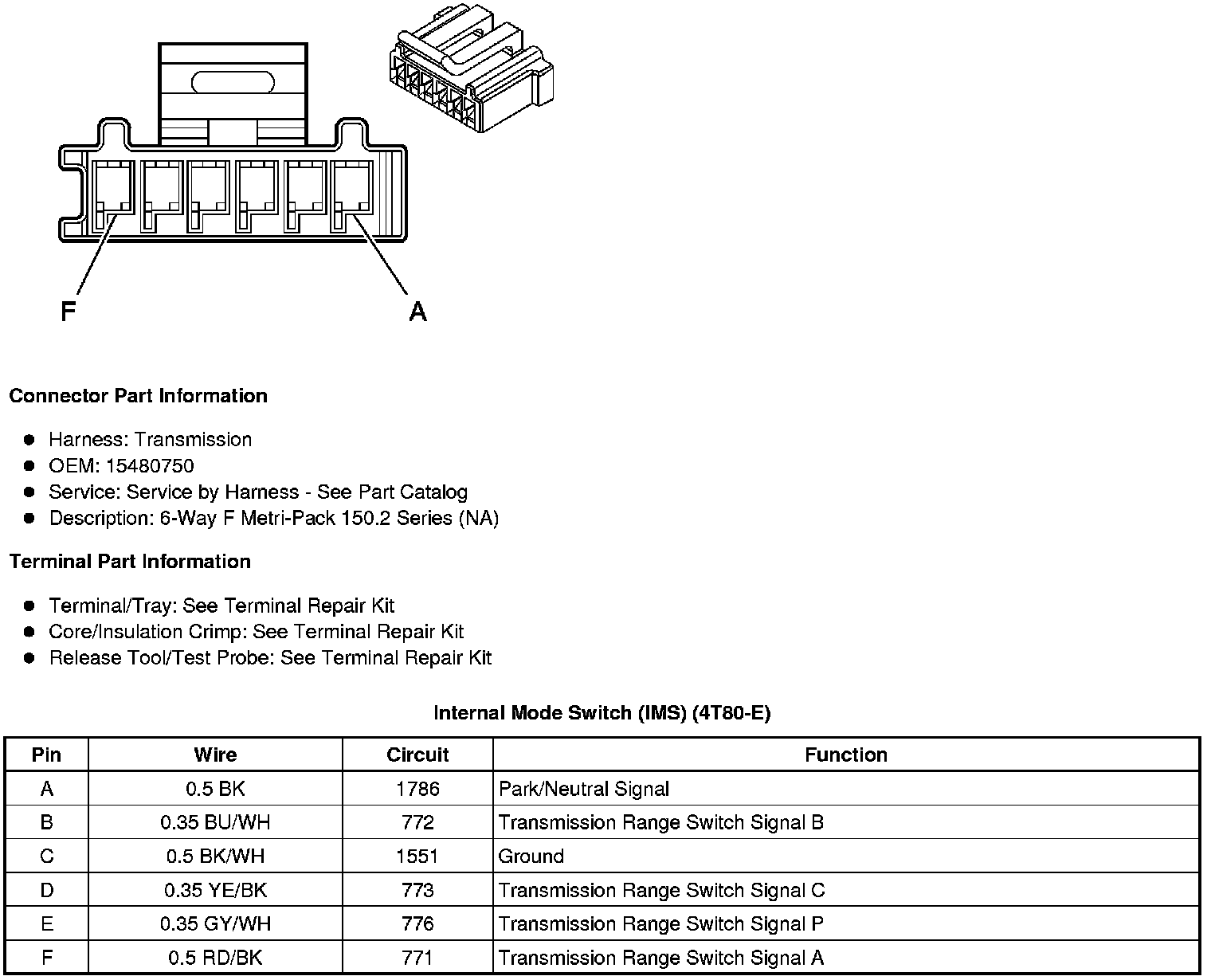

Internal Mode Switch (IMS) (4T80-E)

Park Switch (A51)
