Seat Temperature Control Module




Component Connector End Views

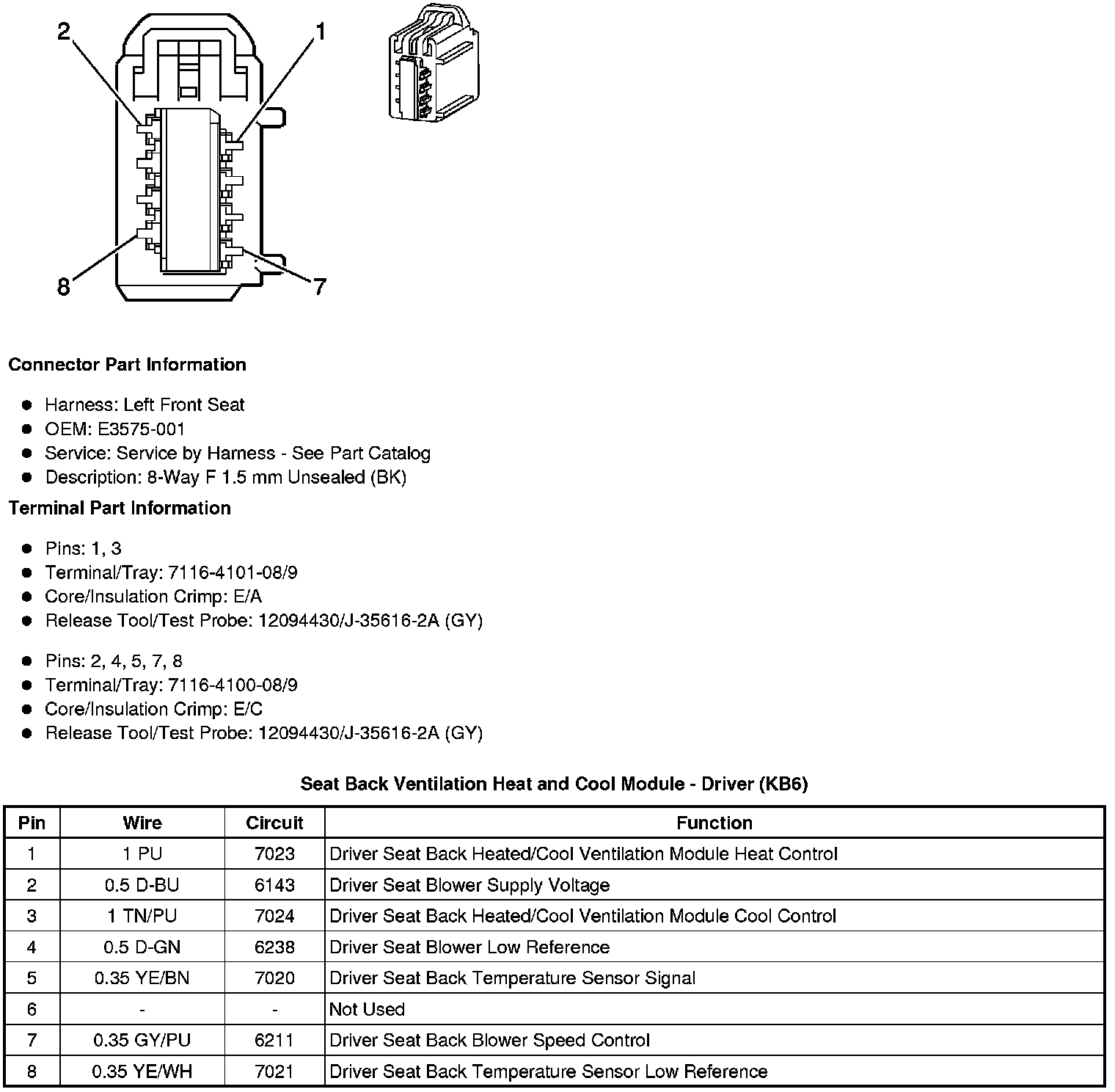

Seat Back Ventilation Heat and Cool Module - Driver (KB6)

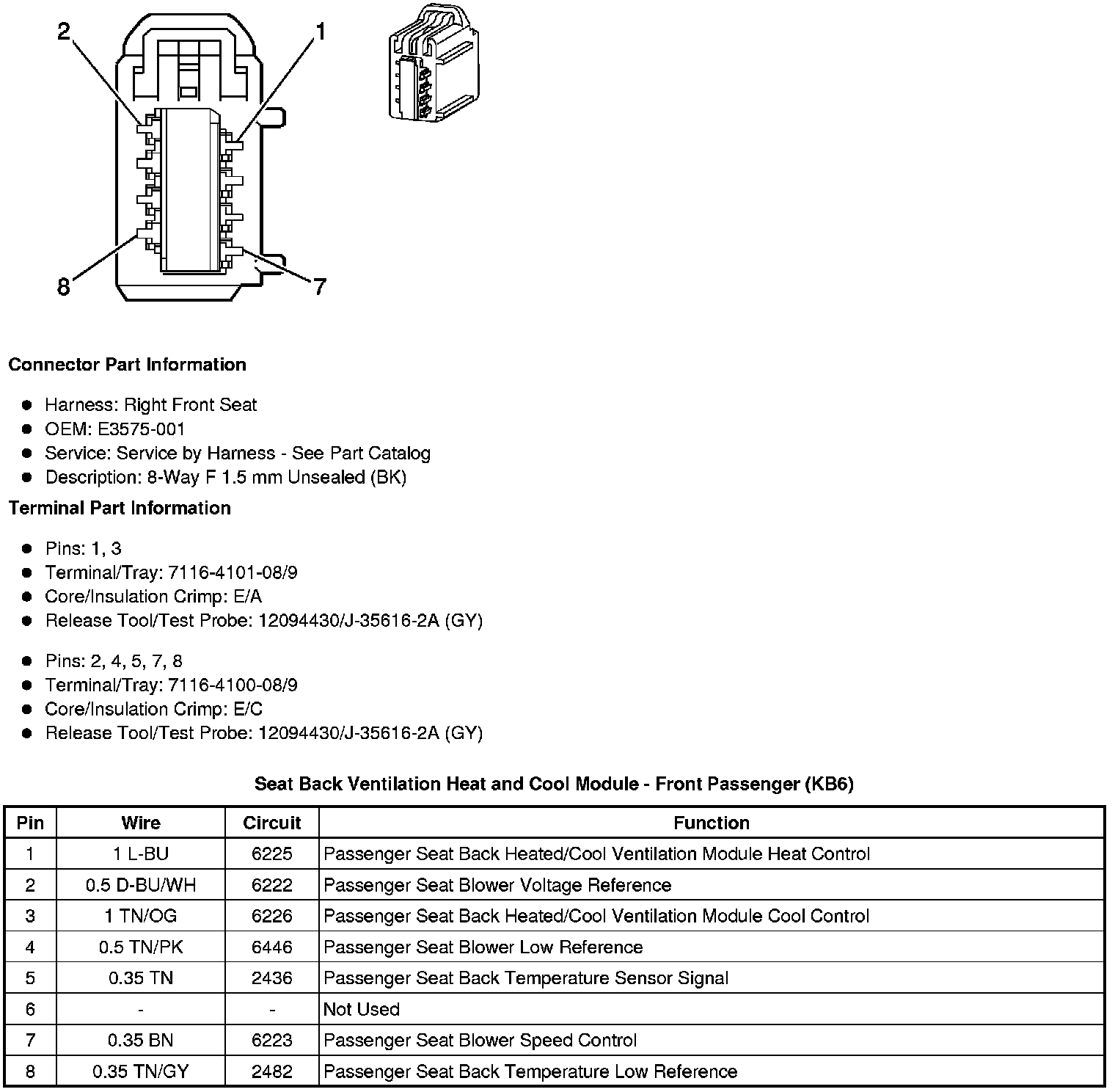

Seat Back Ventilation Heat and Cool Module - Front Passenger (KB6)

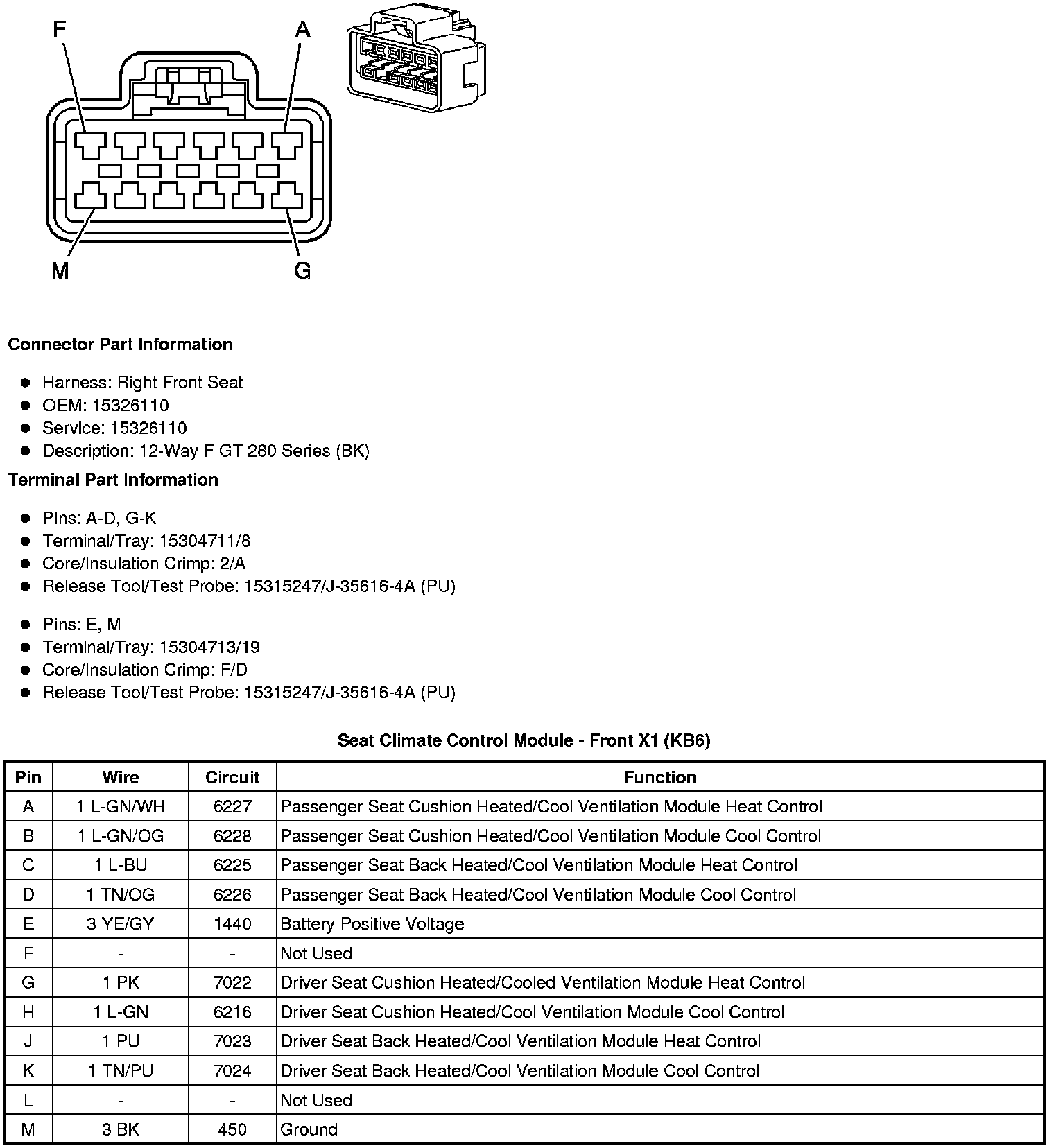

Seat Climate Control Module - Front X1 (KB6)

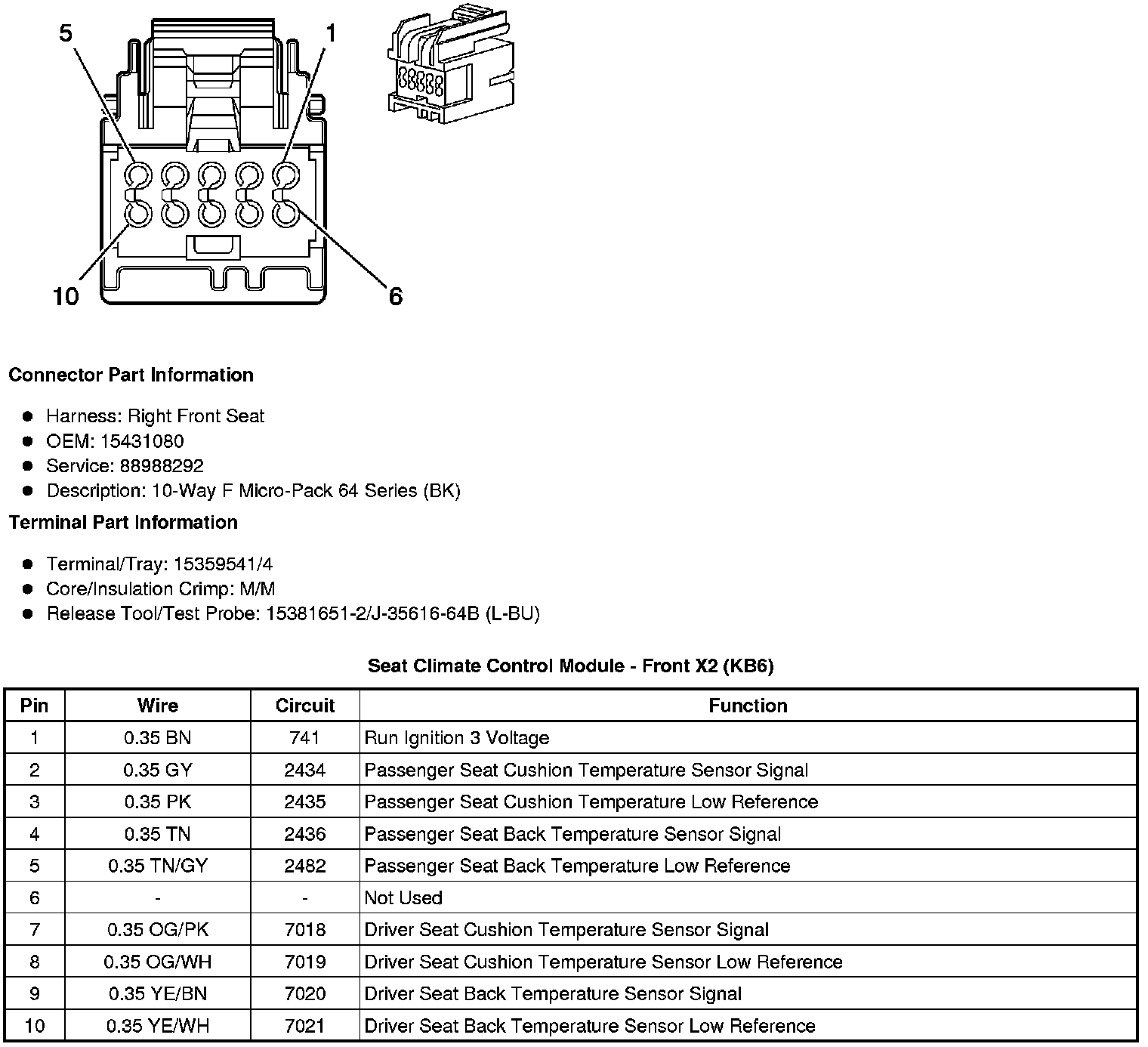

Seat Climate Control Module - Front X2 (KB6)

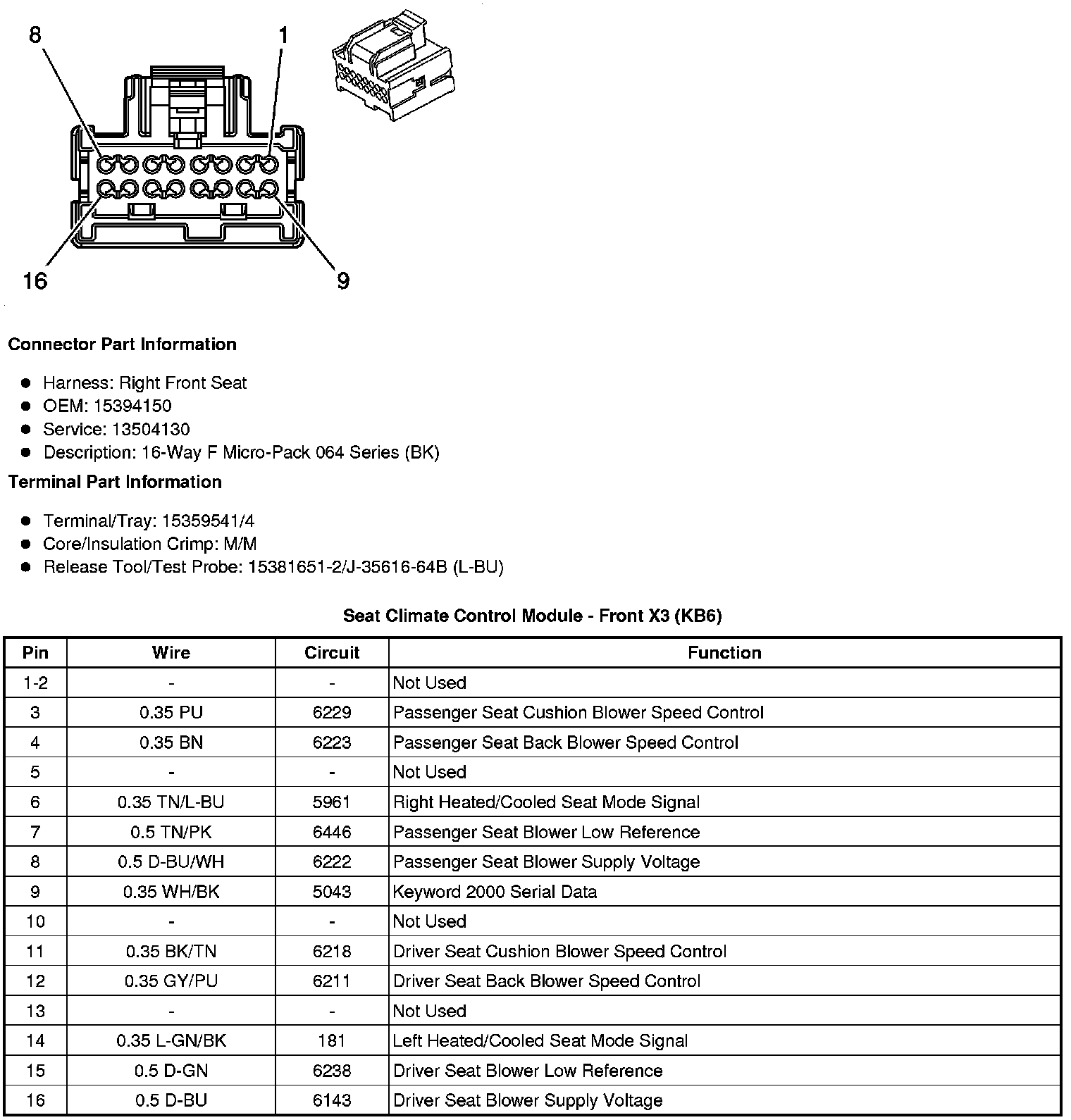

Seat Climate Control Module - Front X3 (KB6)

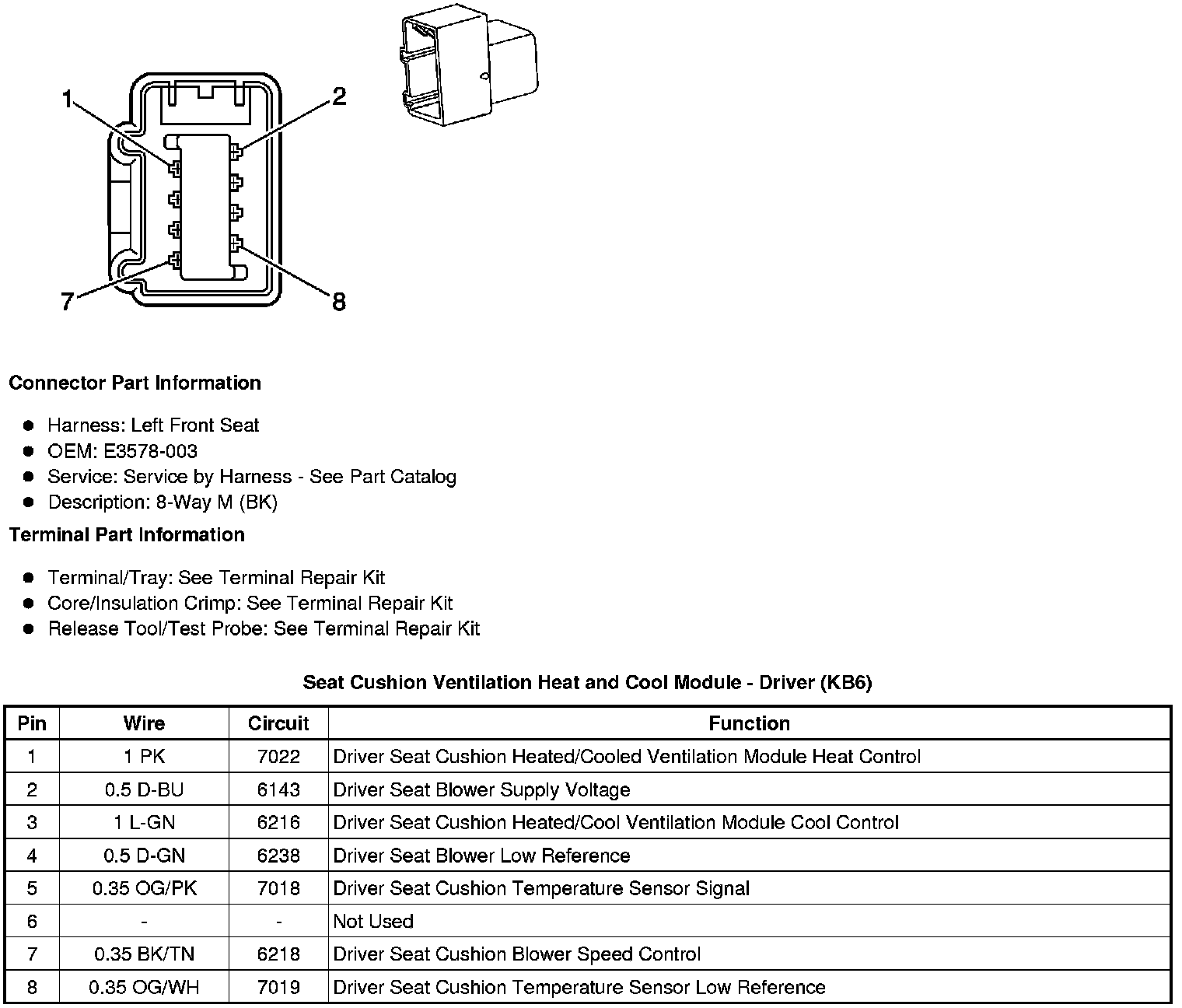

Seat Cushion Ventilation Heat and Cool Module - Driver (KB6)

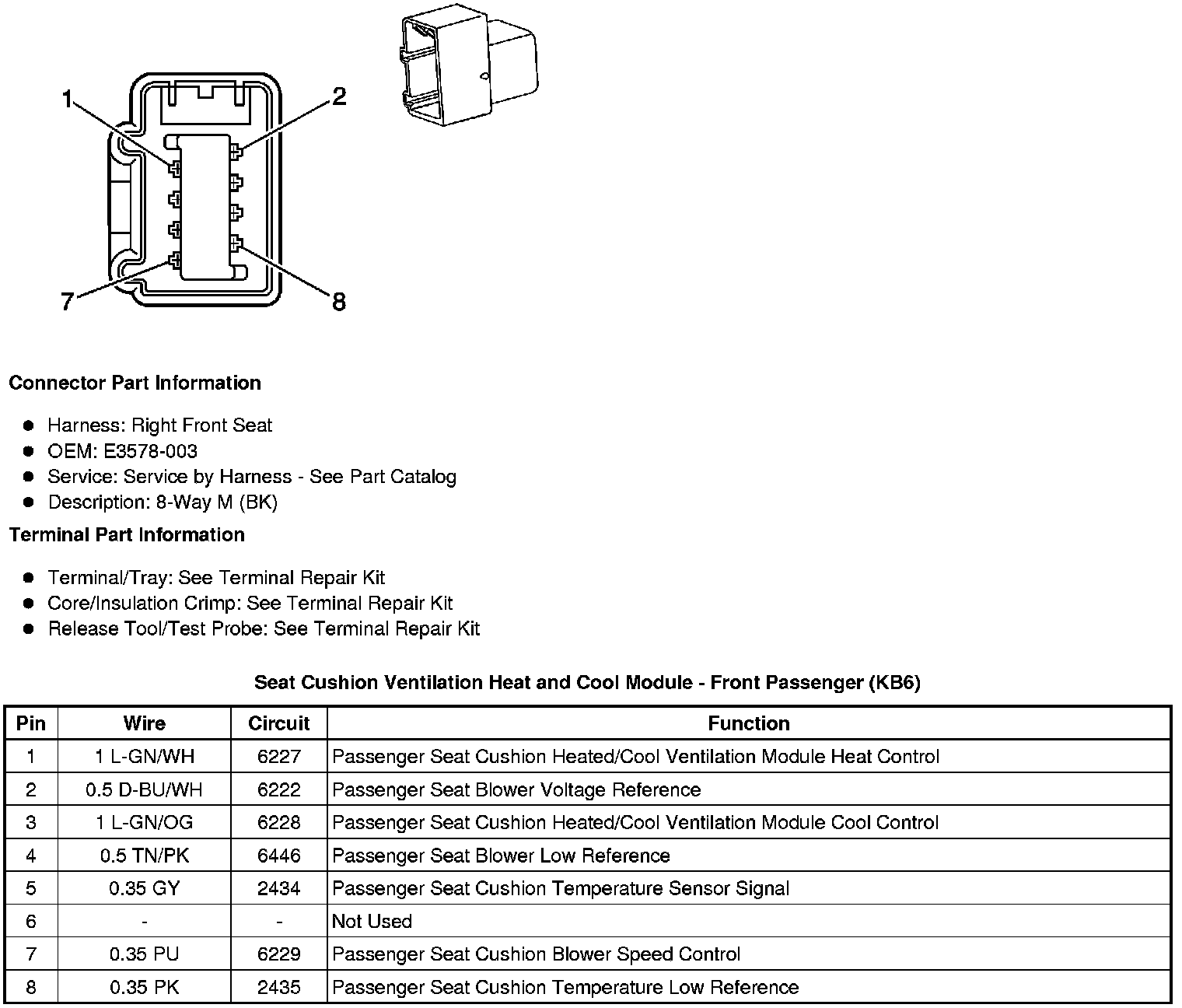

Seat Cushion Ventilation Heat and Cool Module - Front Passenger (KB6)
