Components




Master Electrical Component List

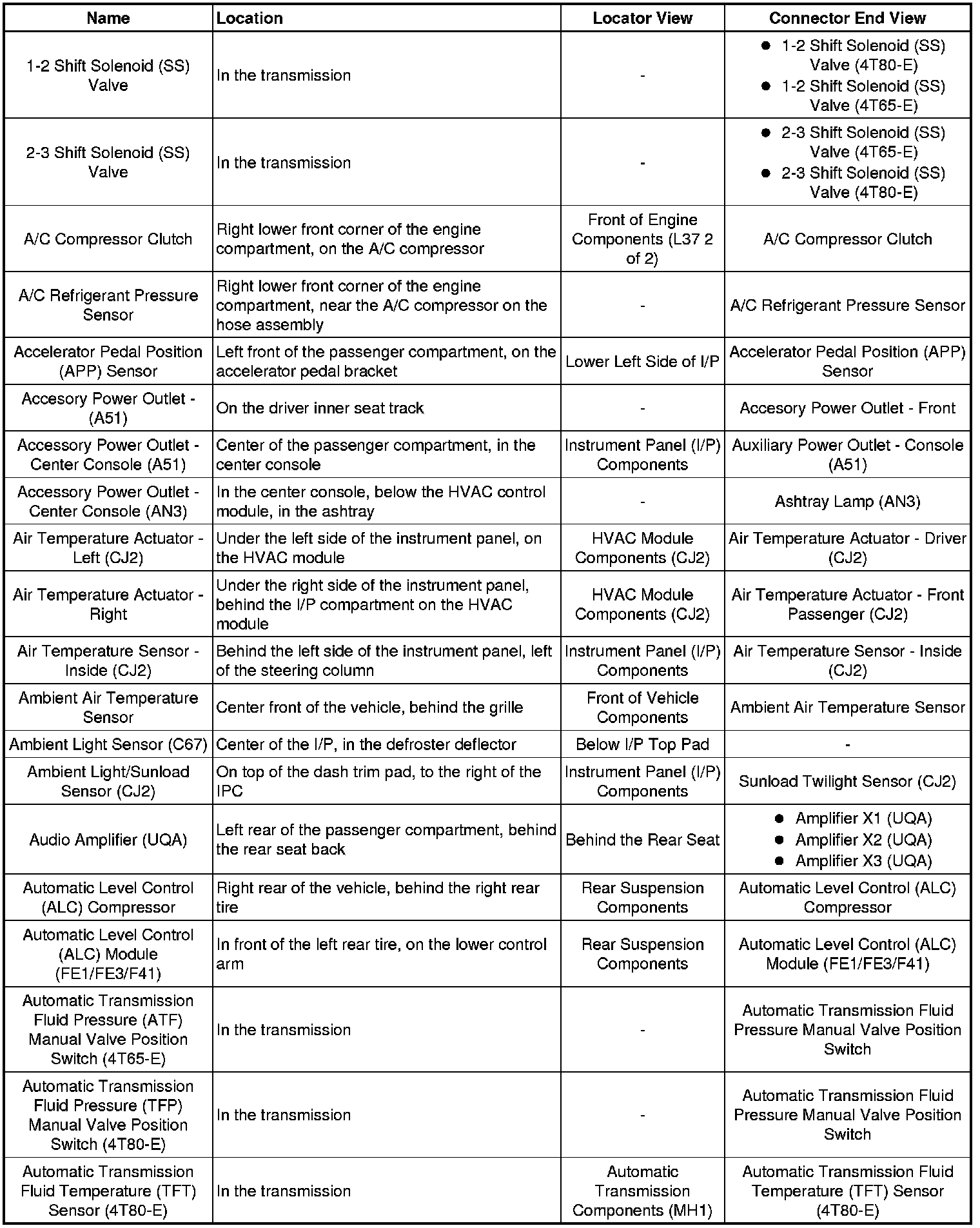

1-2 Sh - Au:

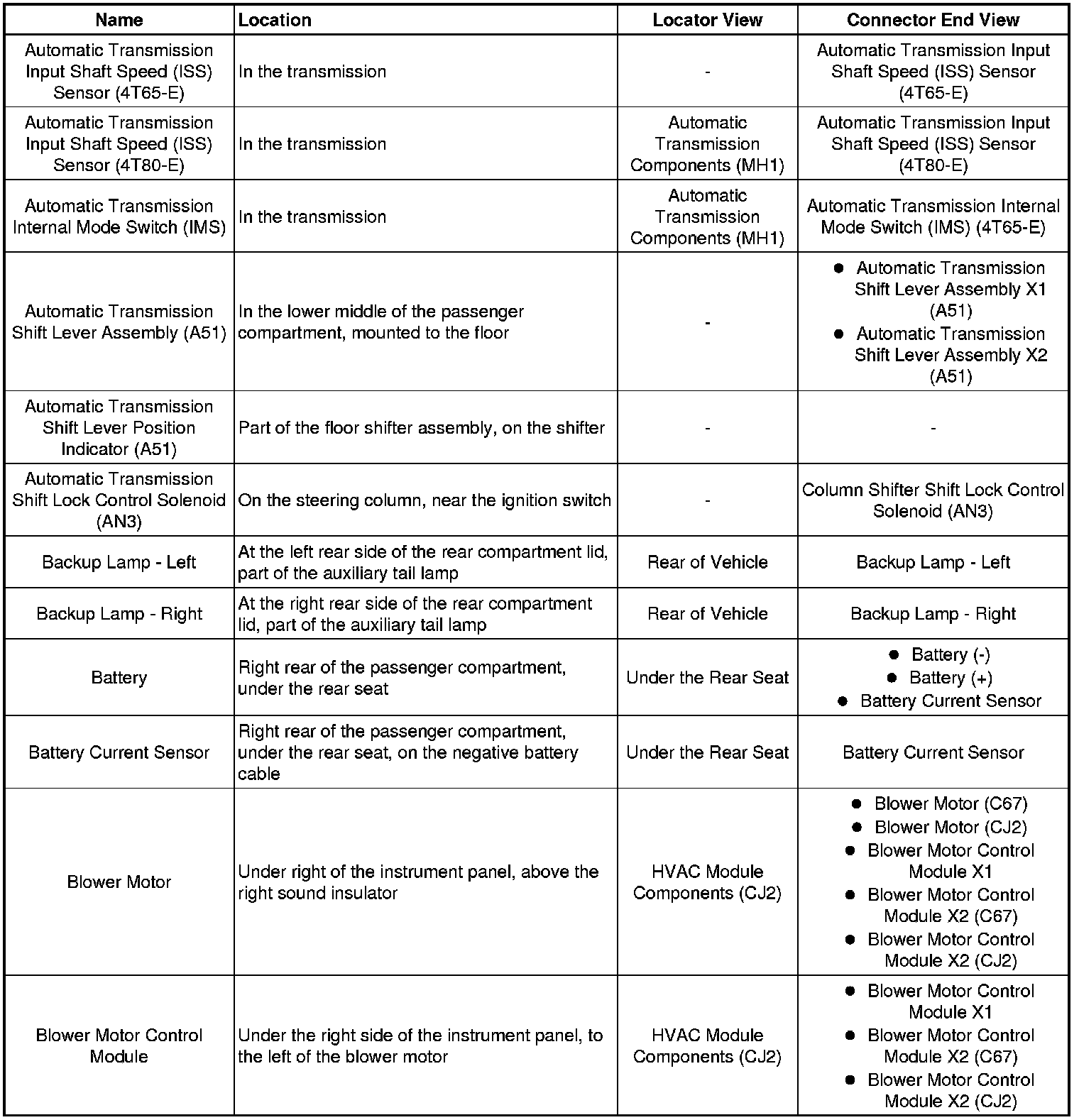

Au - Bl:

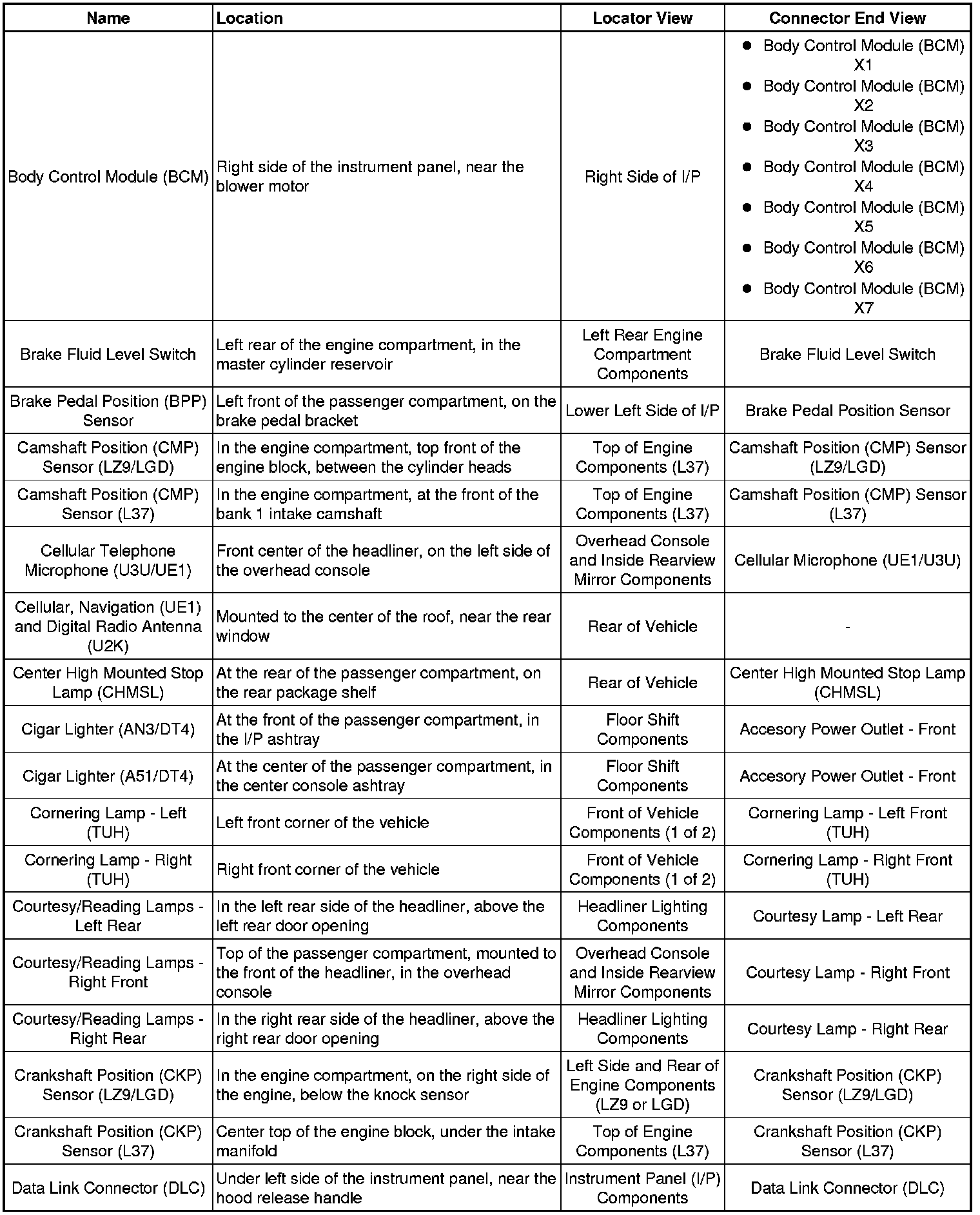

Bo - Da:

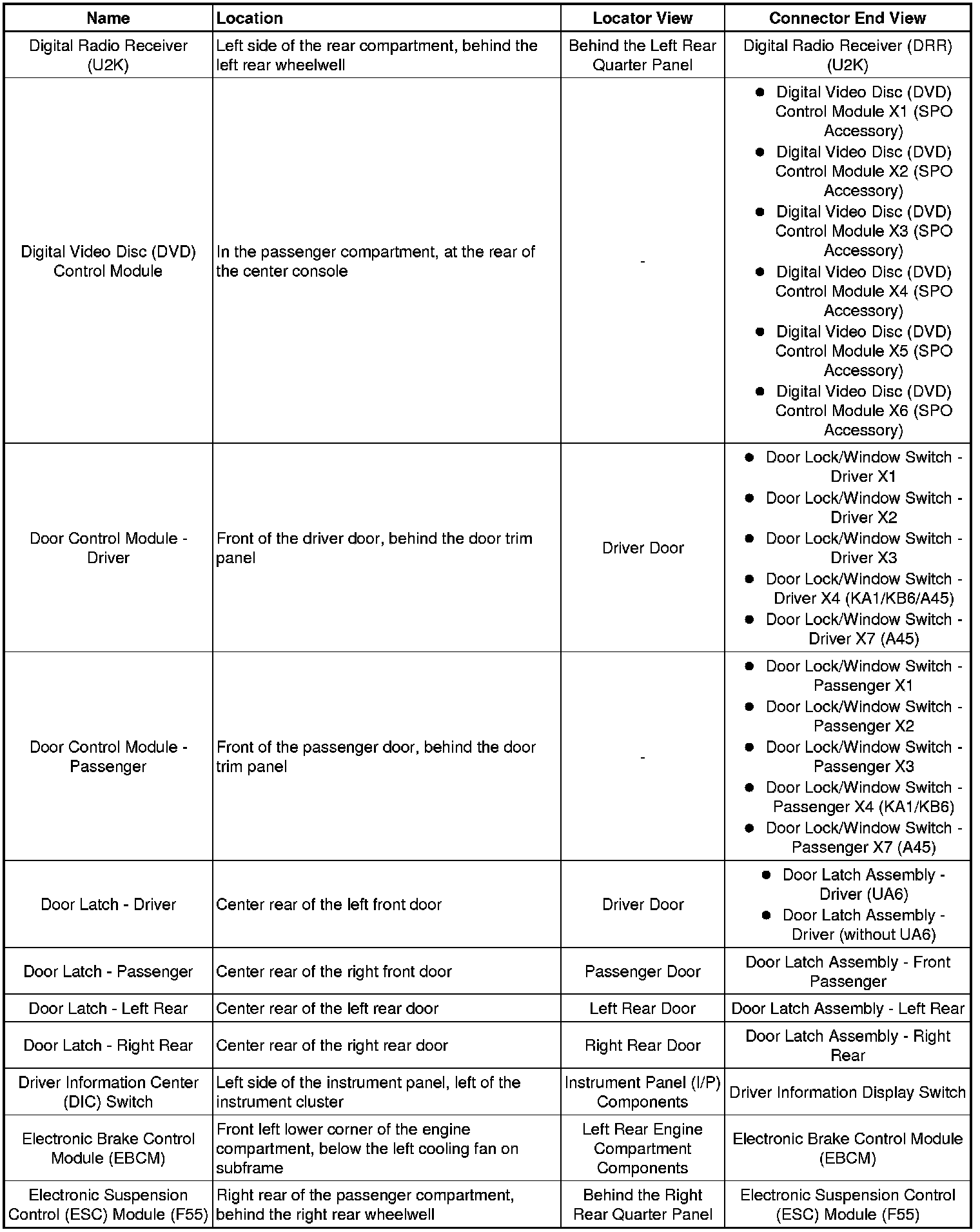

Di - El:

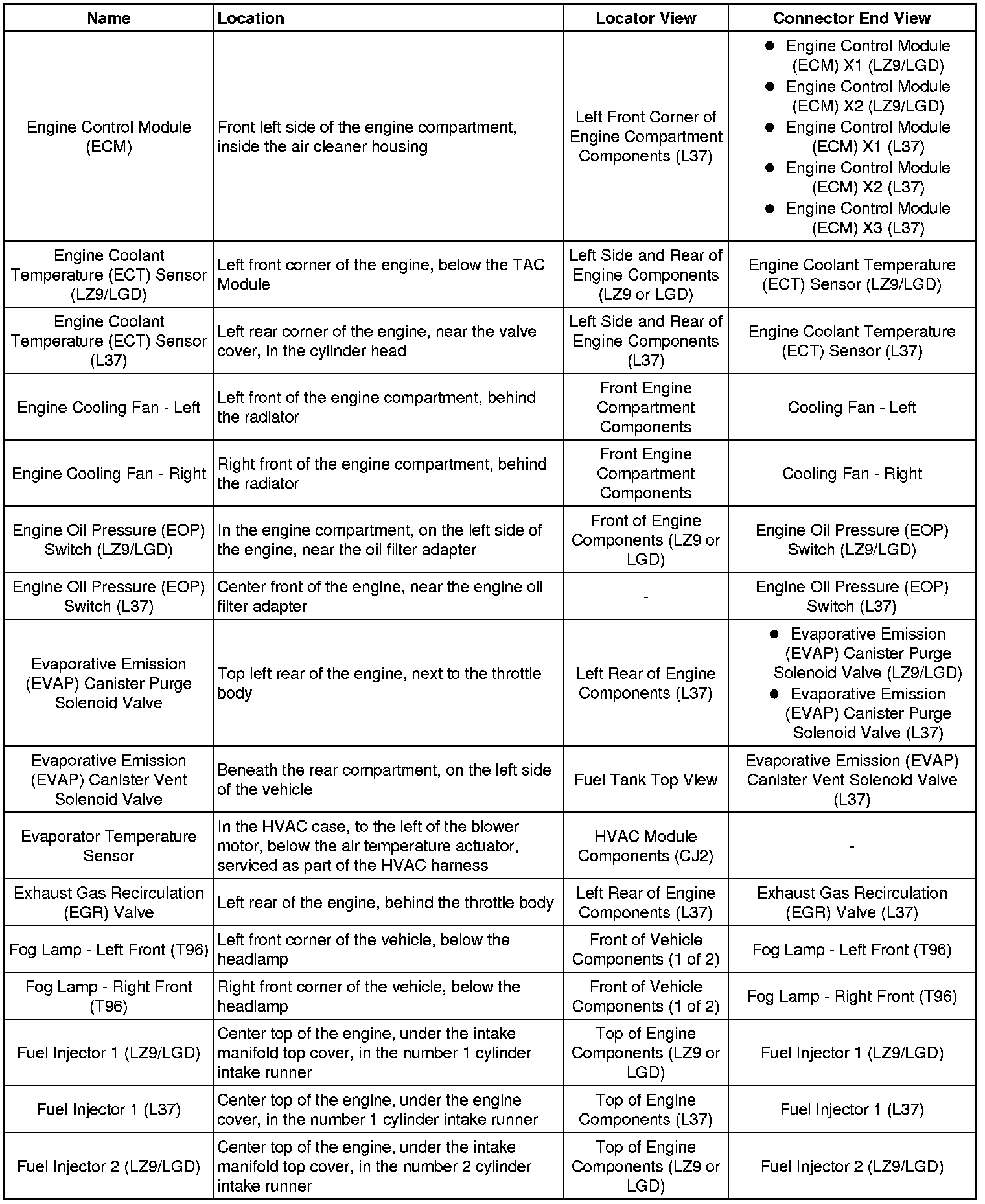

En - Fu:

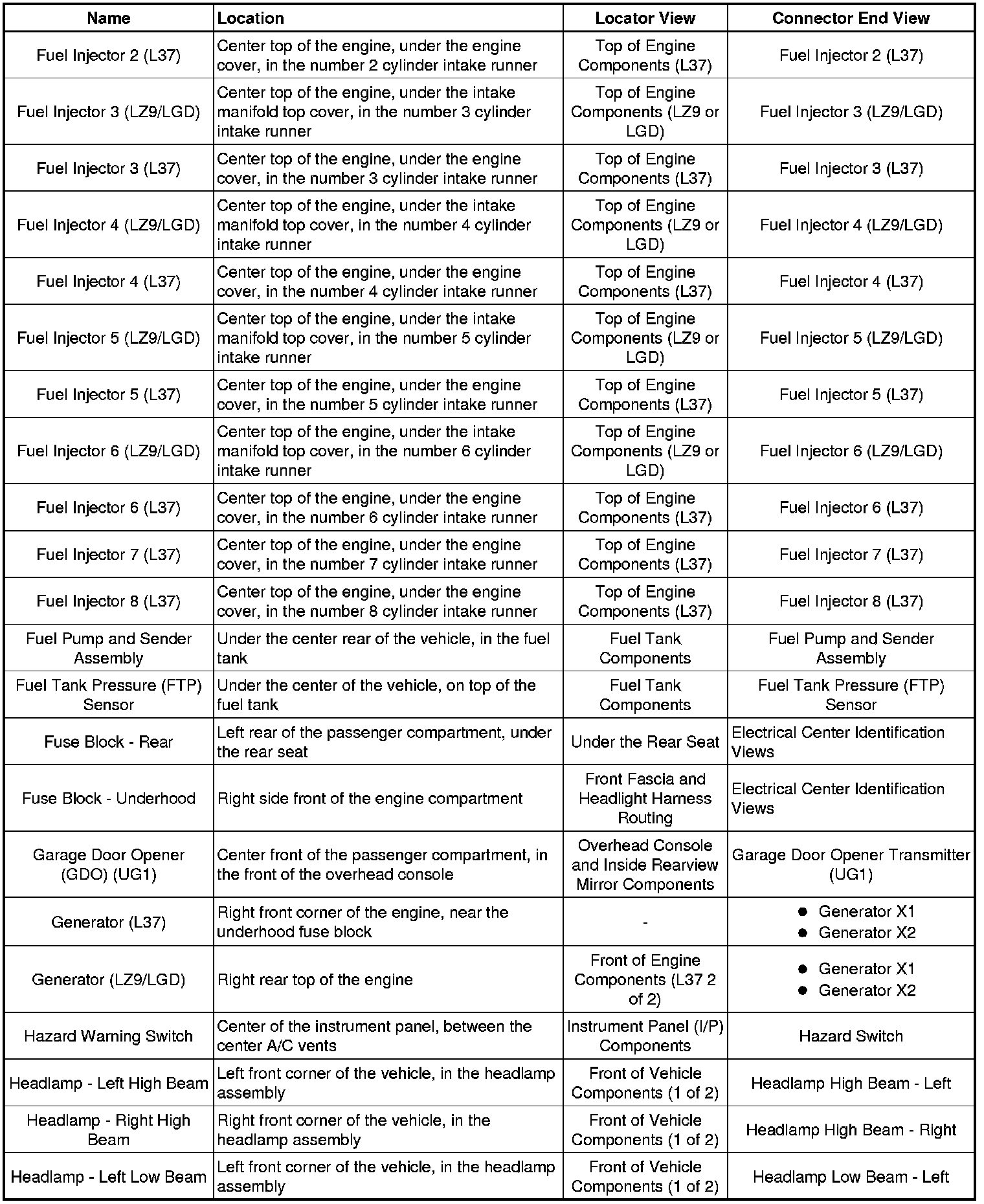

Fu - He:

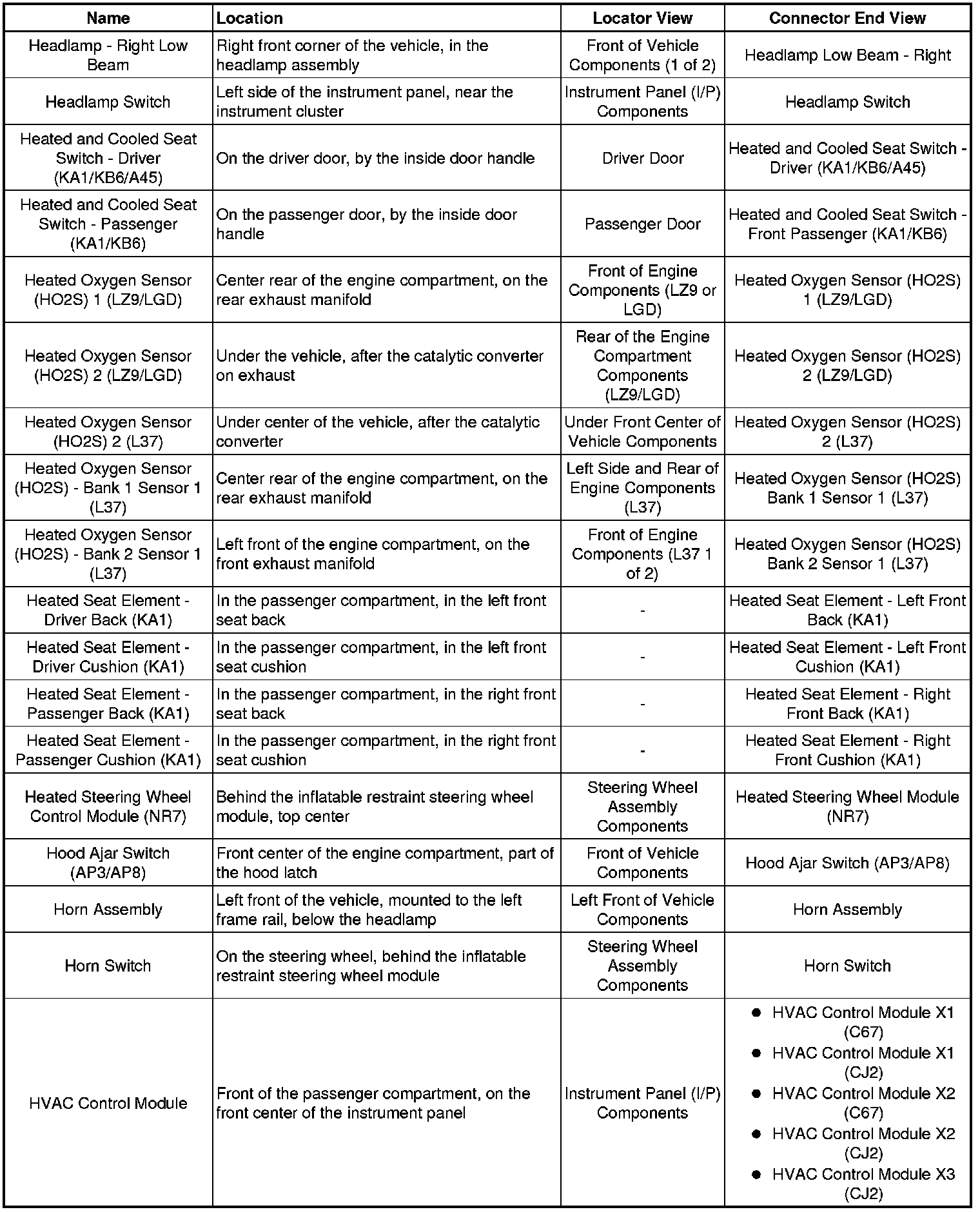

He - HV:

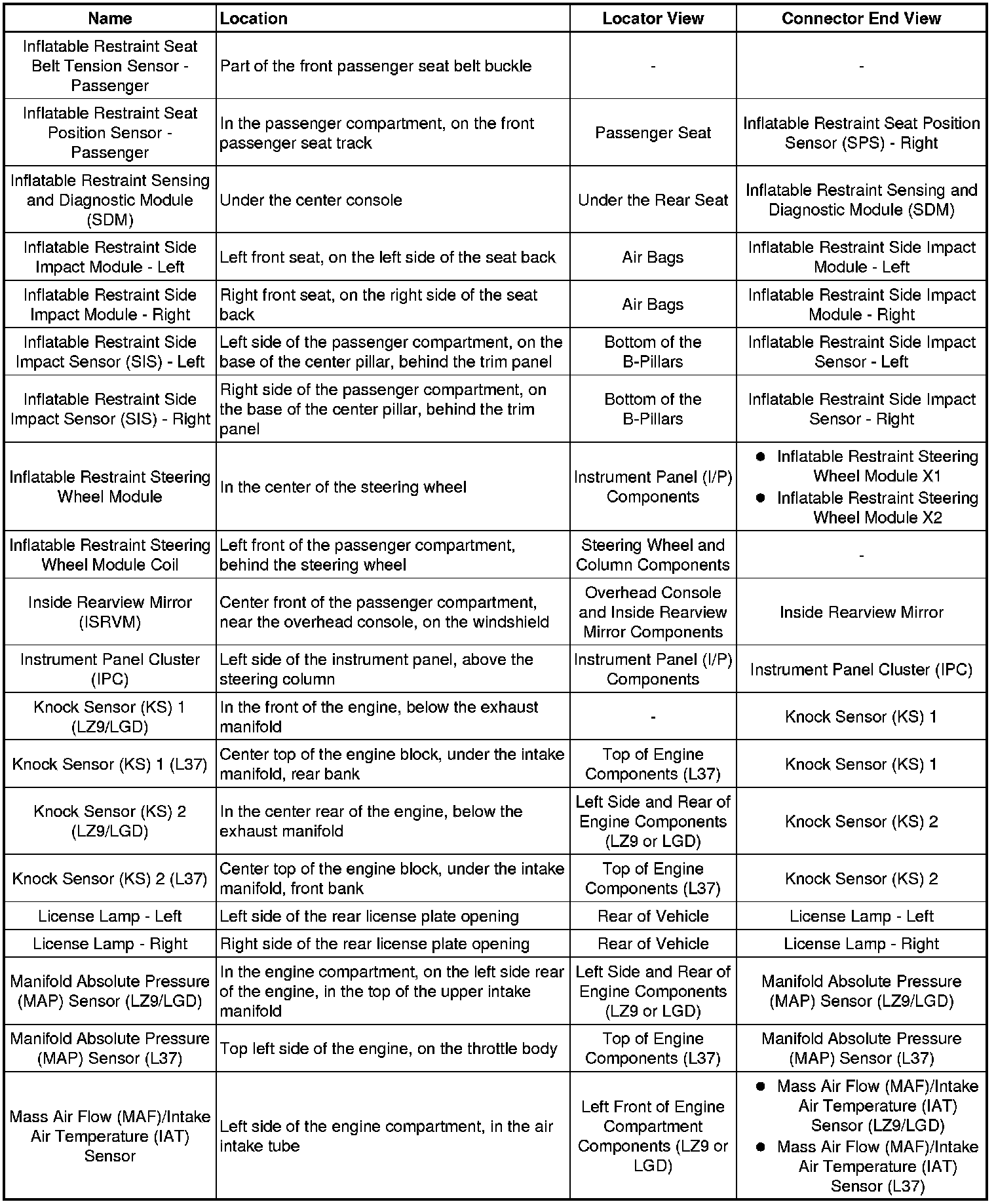

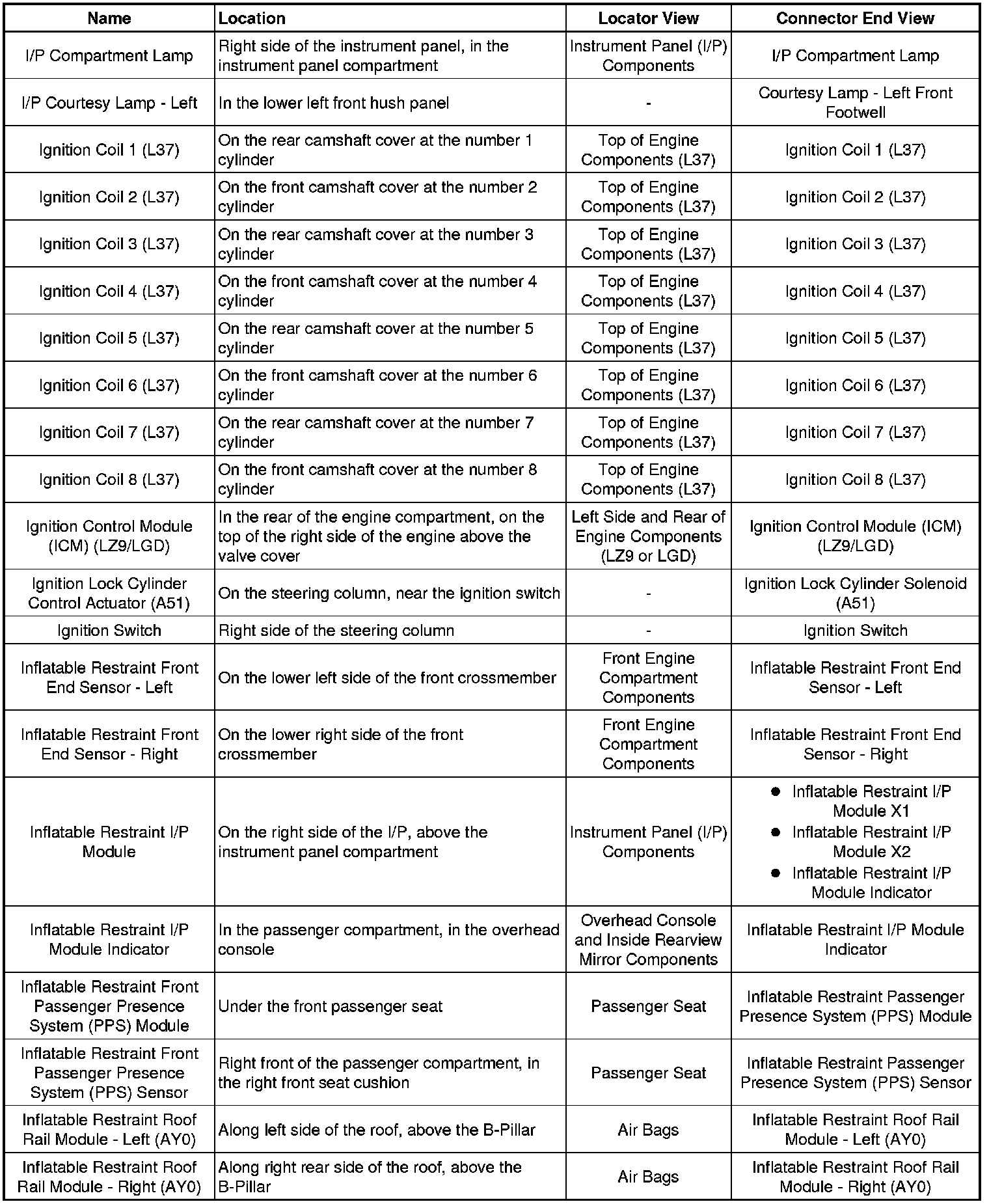

I/P Co - In:





In - Ma:

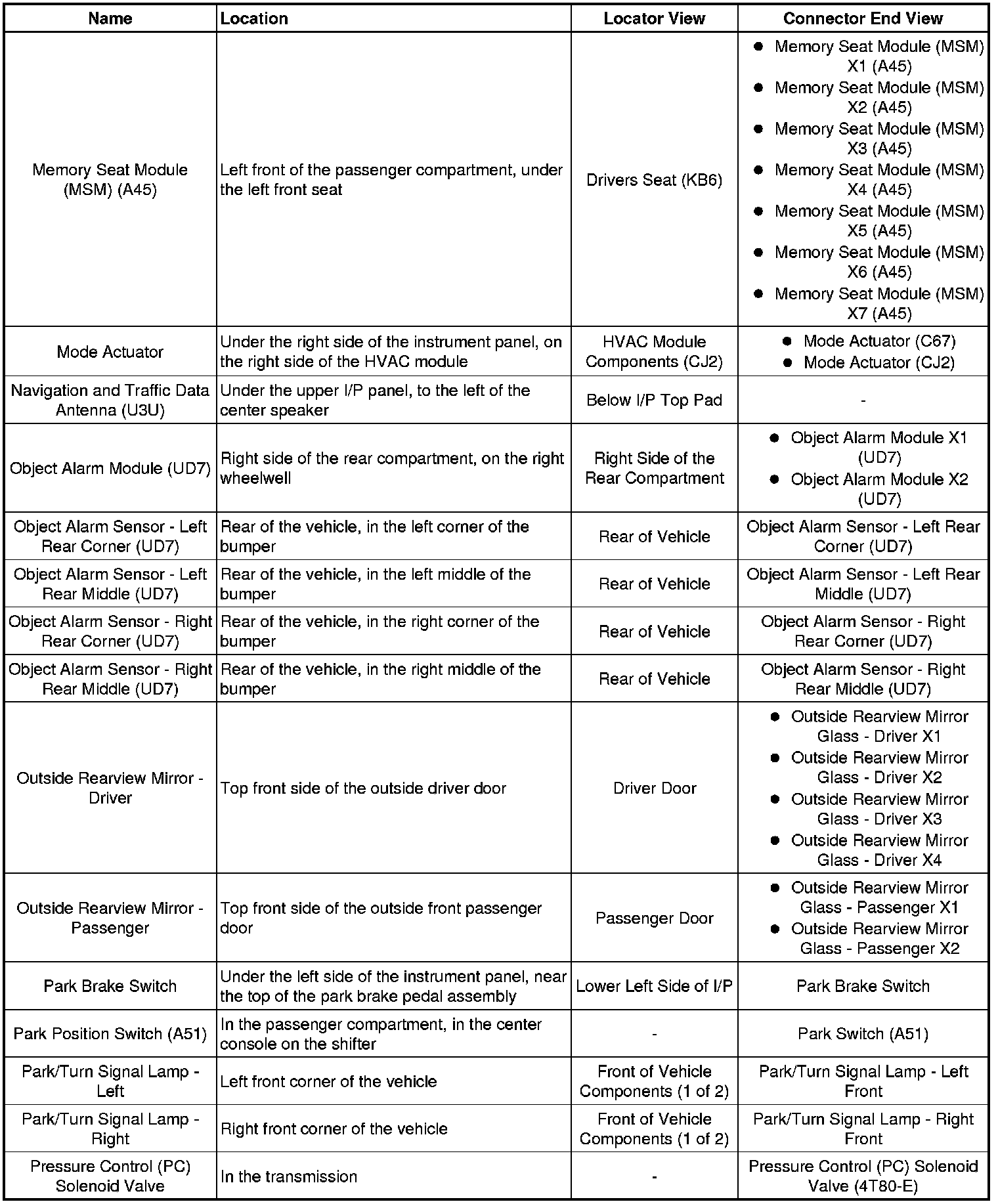

Me - Pr:

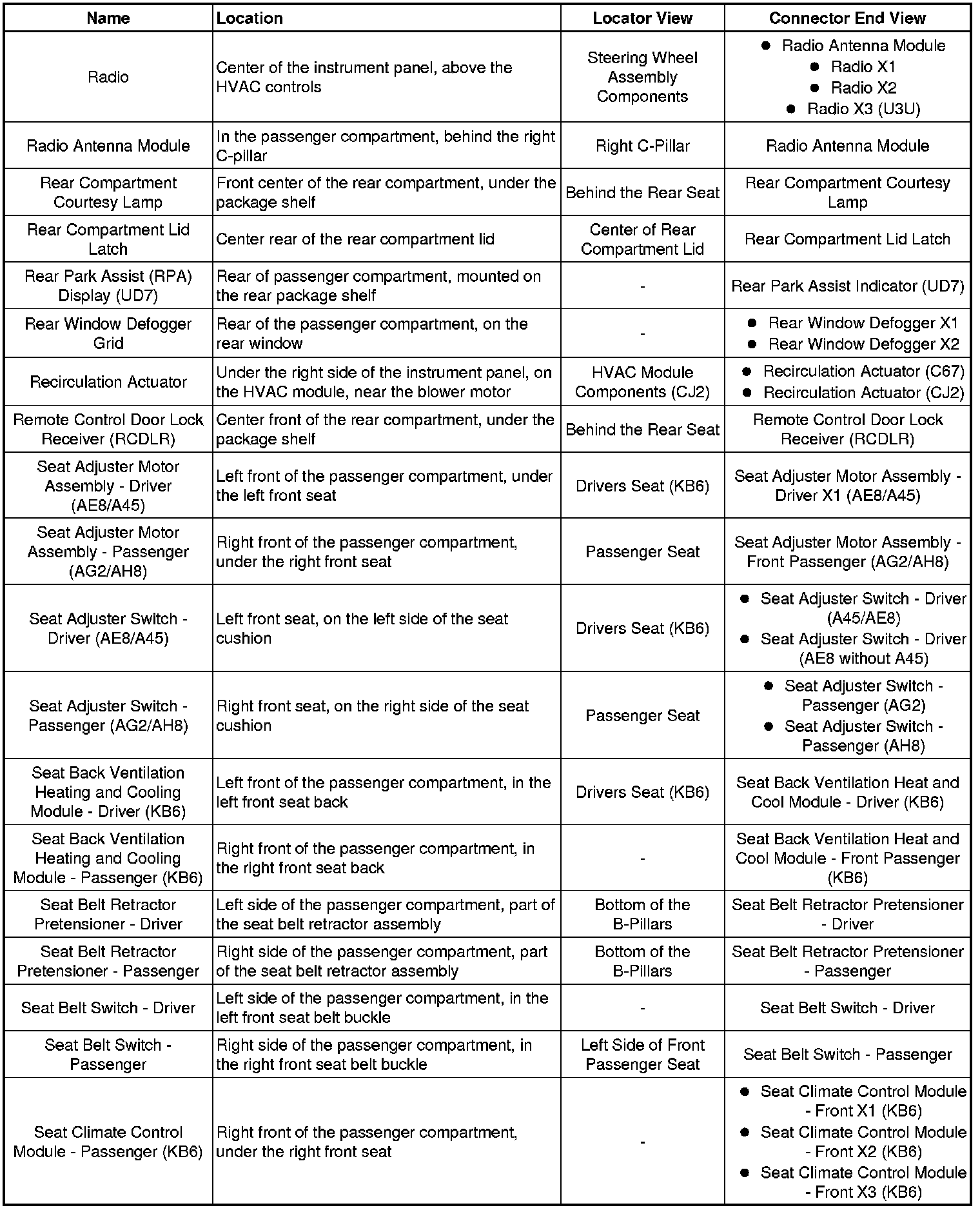

Ra - Se:

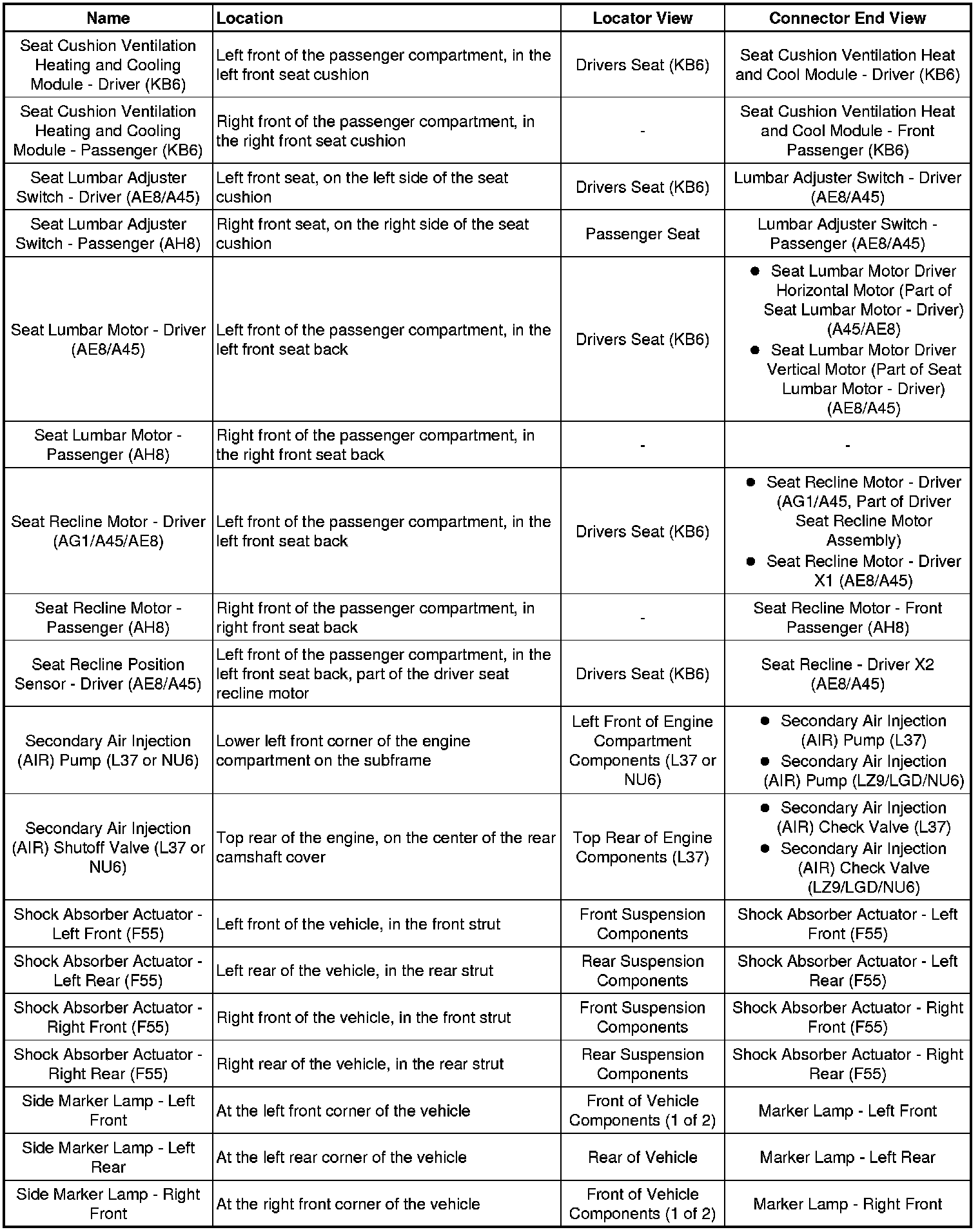

Se - Si:

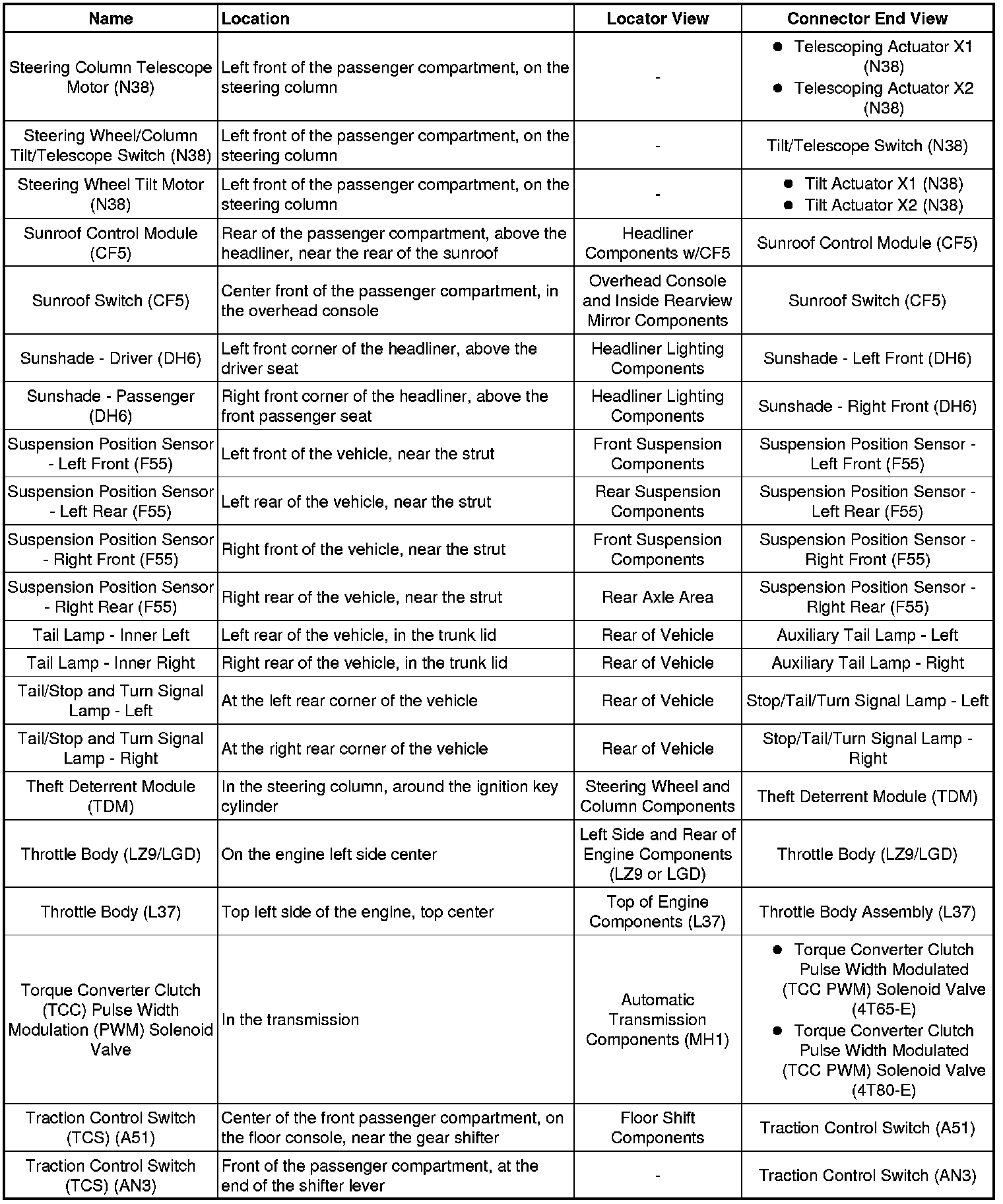

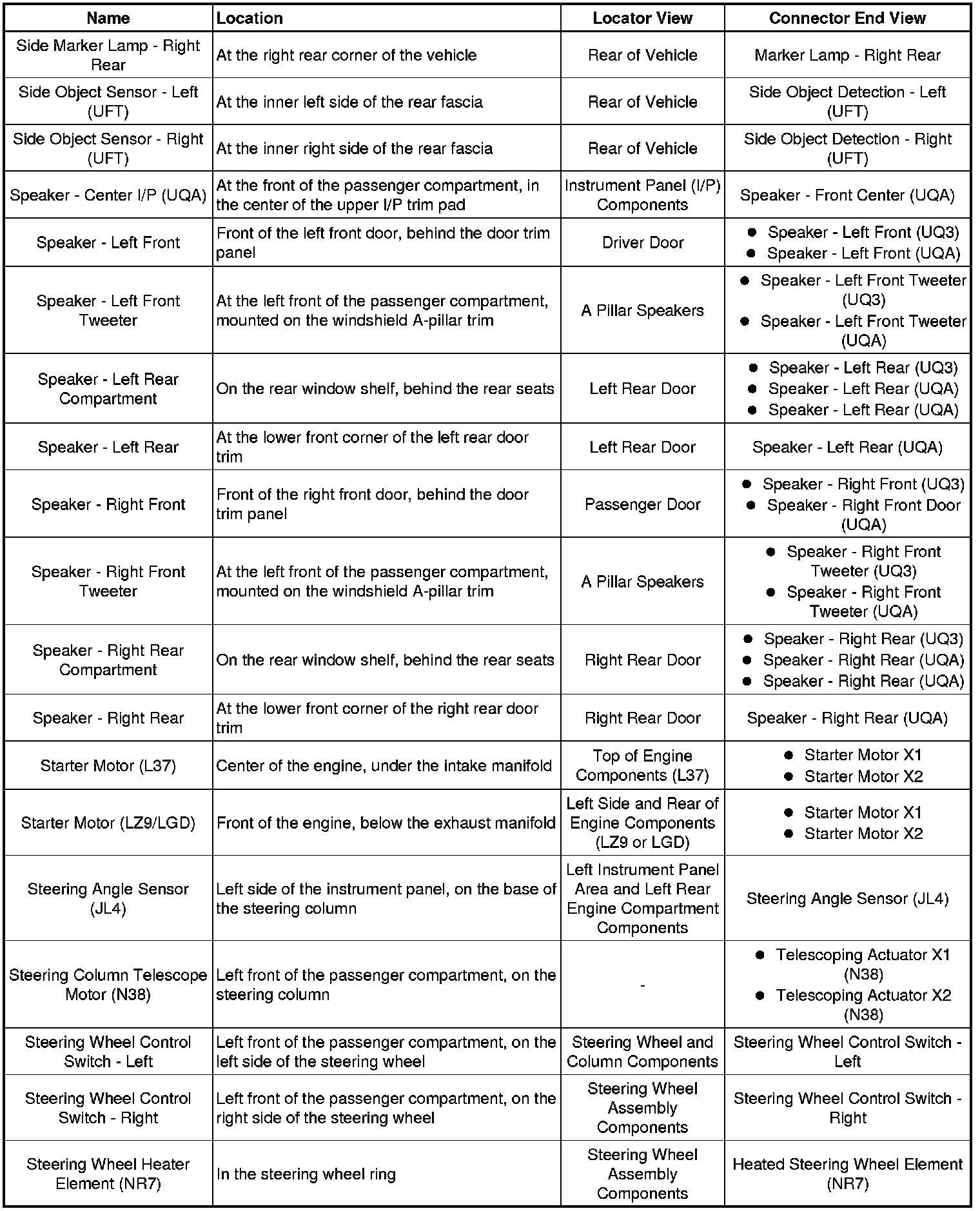

Si - St:





St - Tr:

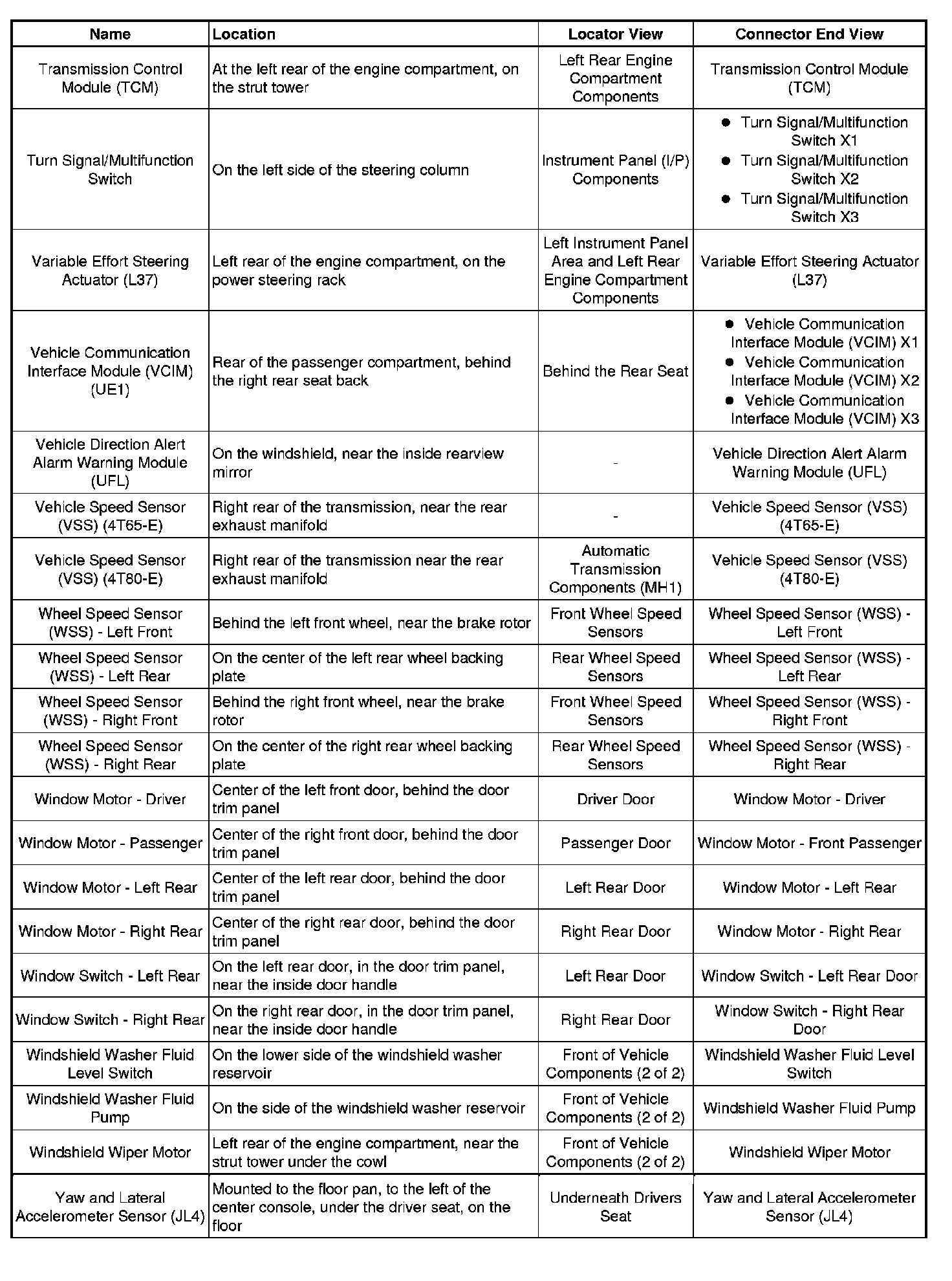

Tr - Ya:
