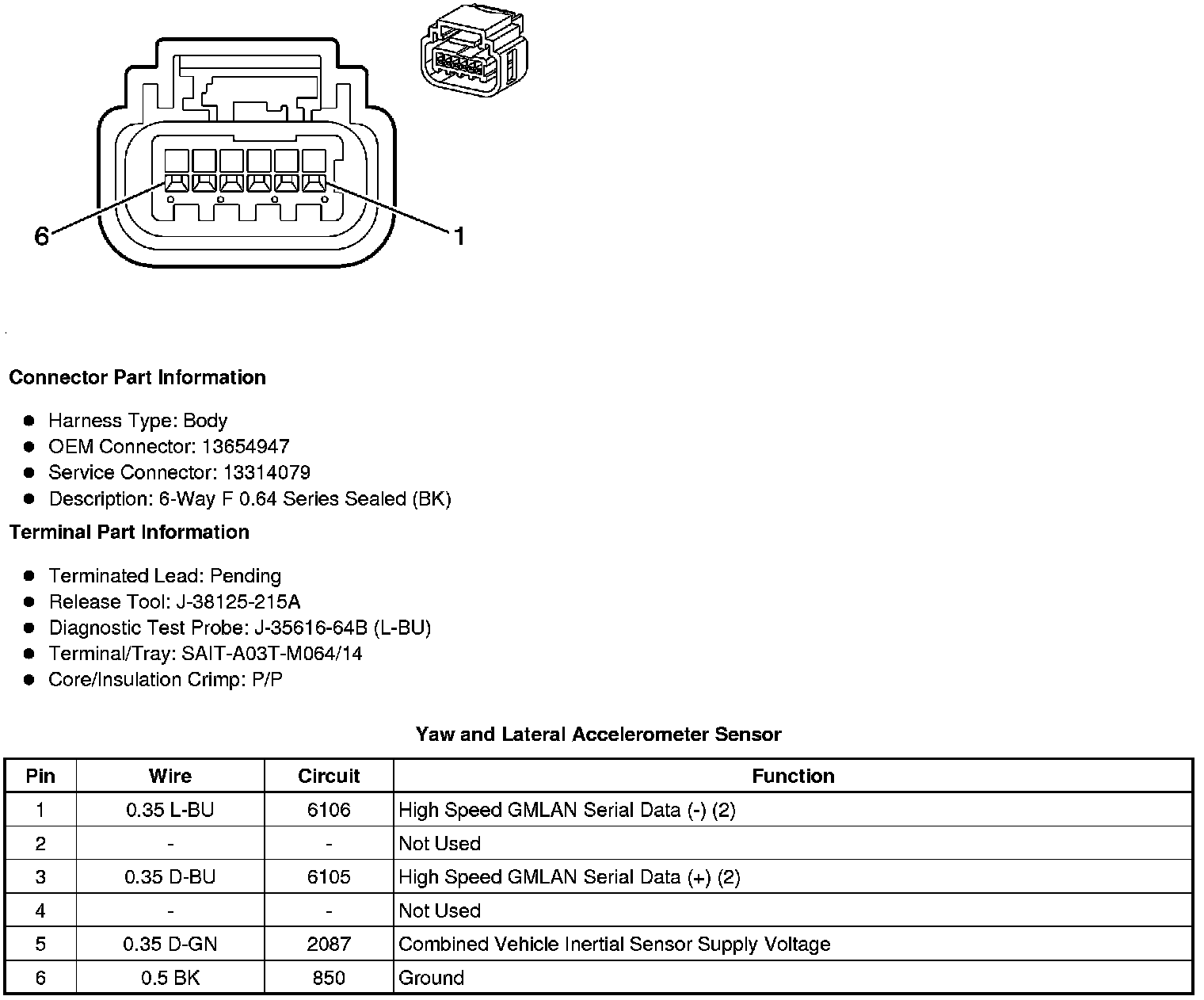

Yaw Rate Sensor




Component Connector End Views

B119 Multi-Axis Acceleration Sensor








Component Connector End Views

B161LF Vertical Suspension Acceleration Sensor - Left Front (F45)

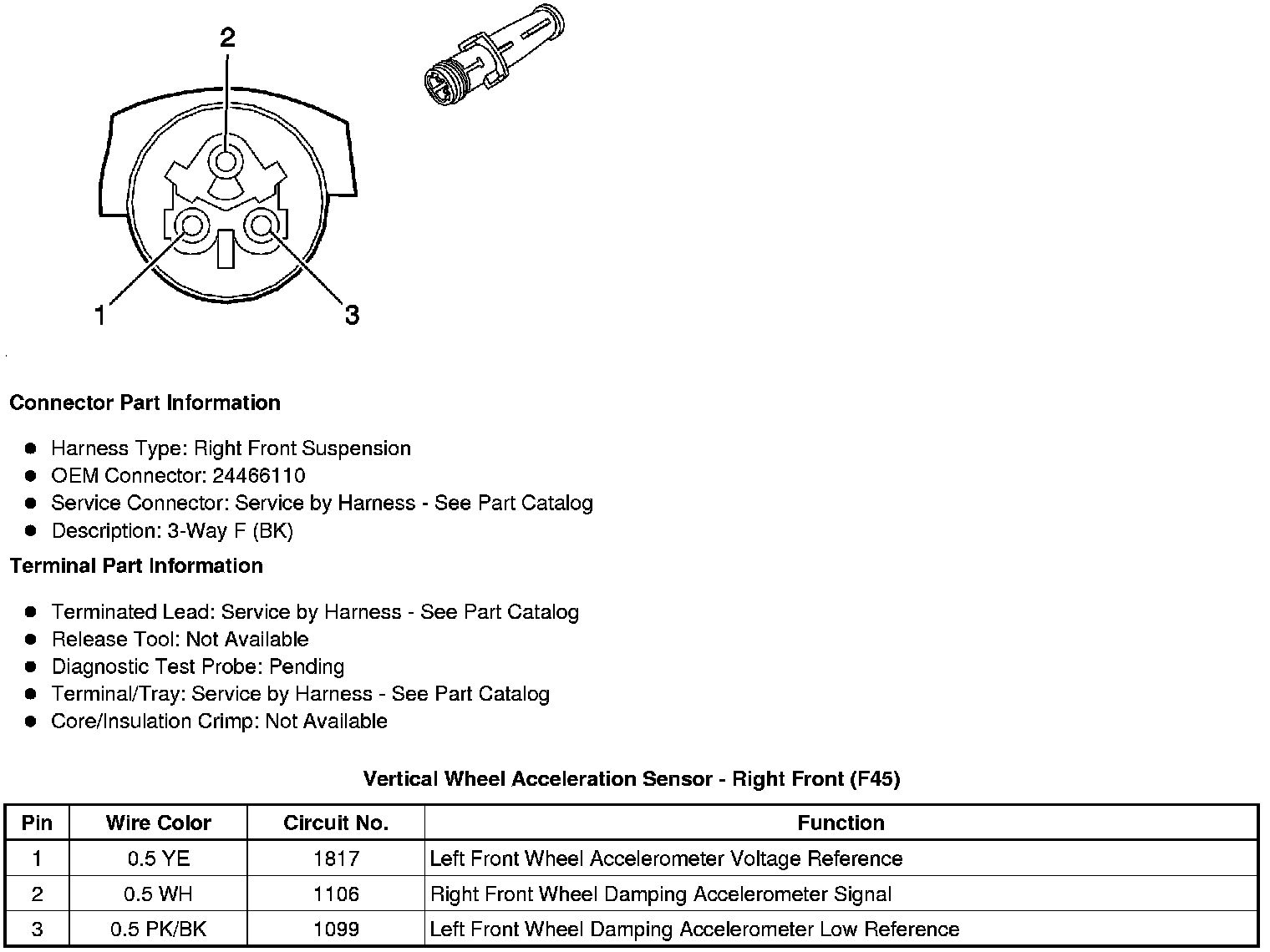

B161RF Vertical Suspension Acceleration Sensor - Right Front (F45)
