Parking Assist Control Module




Component Connector End Views

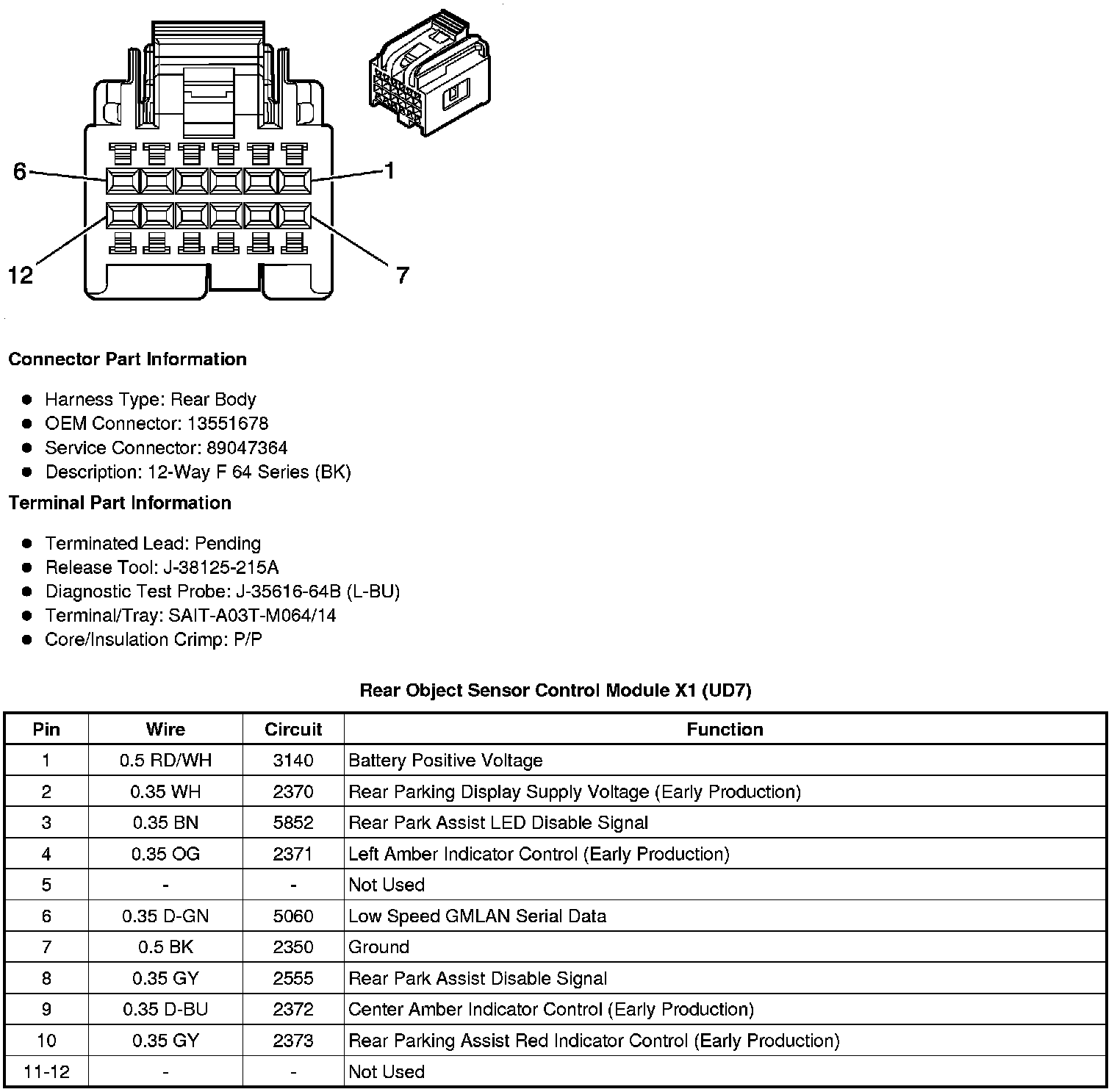

Rear Object Sensor Control Module X1 (UD7)

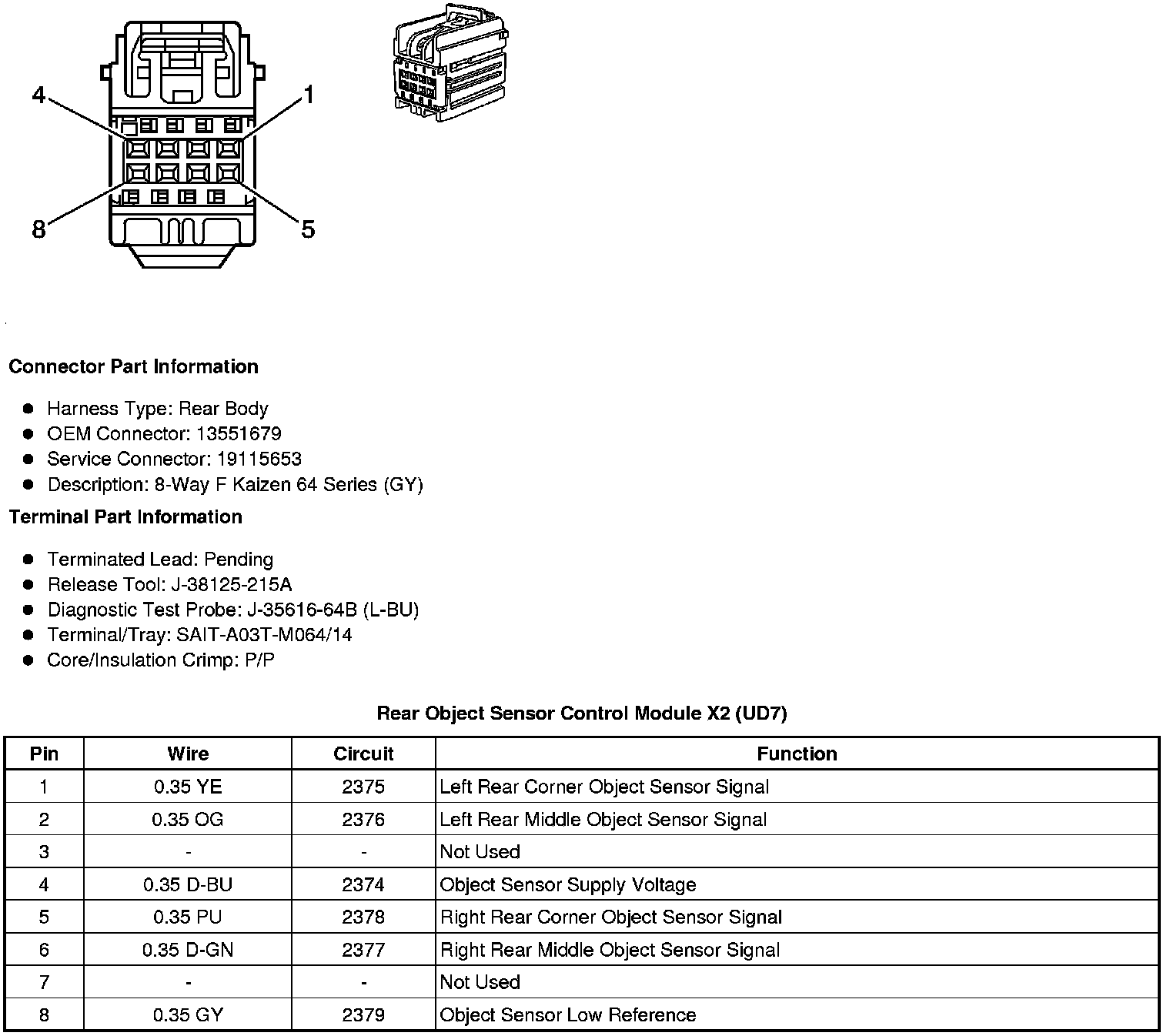

Rear Object Sensor Control Module X2 (UD7)
