Heads Up Display Unit




Component Connector End Views

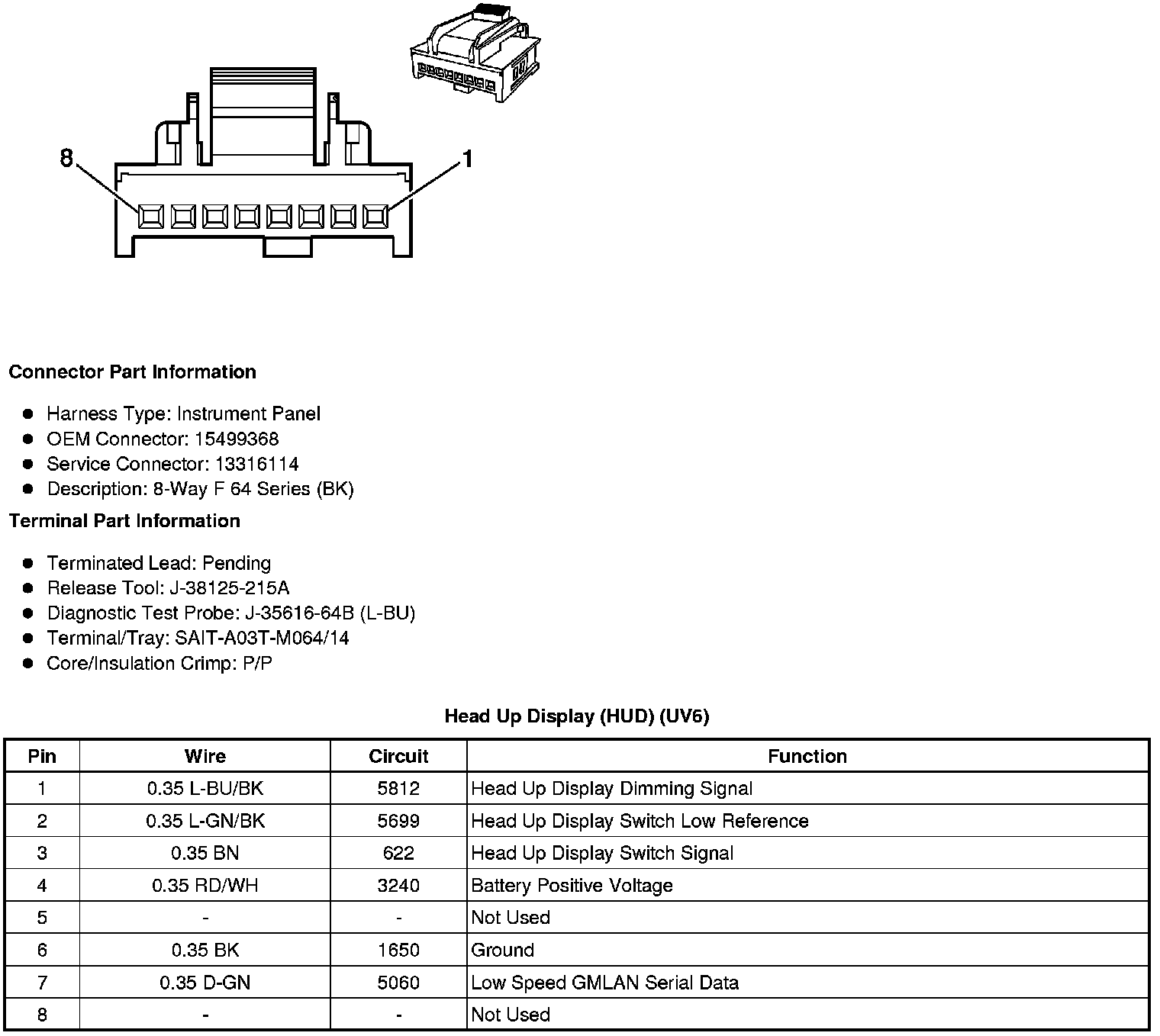

Head Up Display (HUD) (UV6)

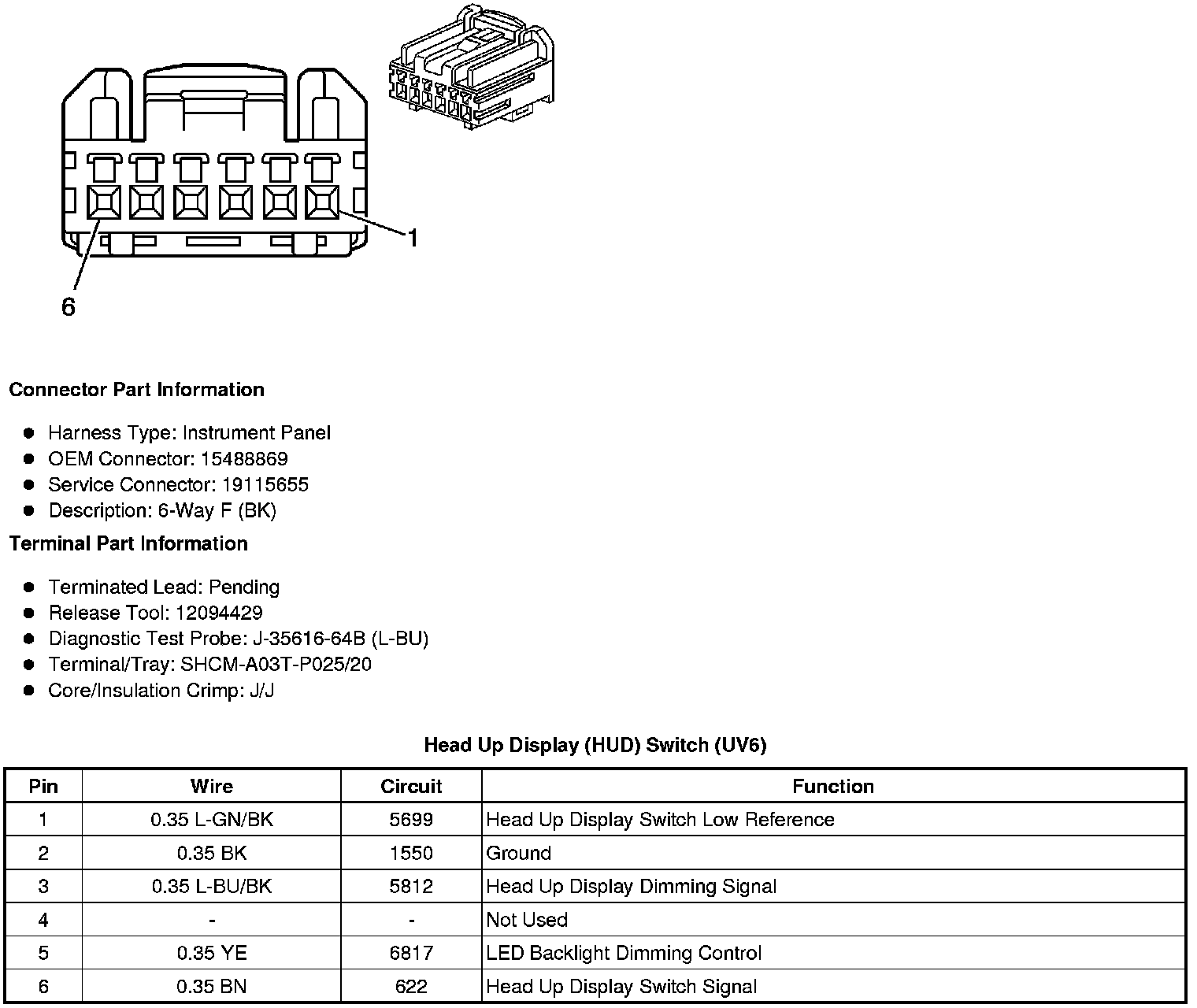

Head Up Display (HUD) Switch (UV6)
