Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

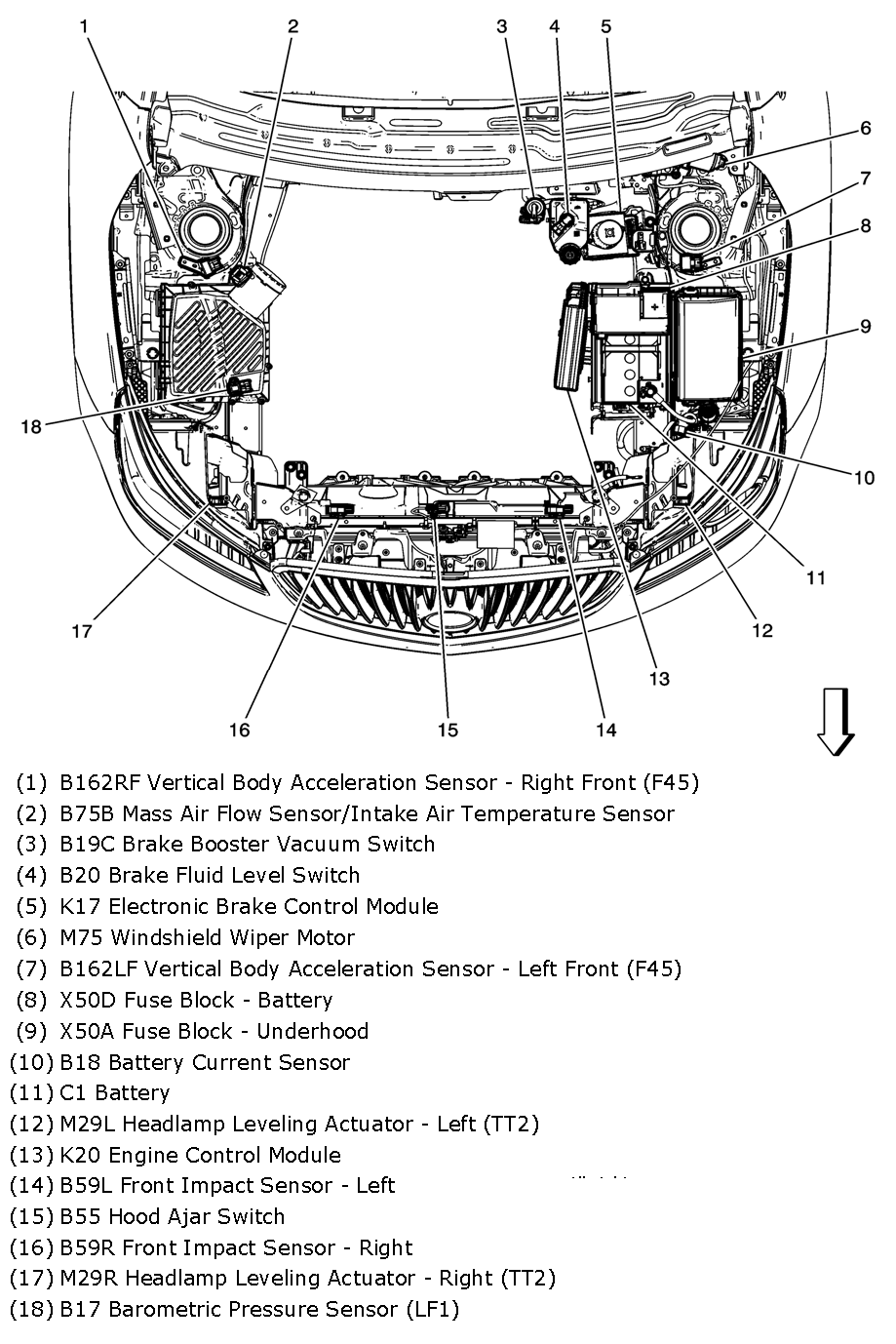

| Fuse Block - Battery |
Top of battery. See Figure. |

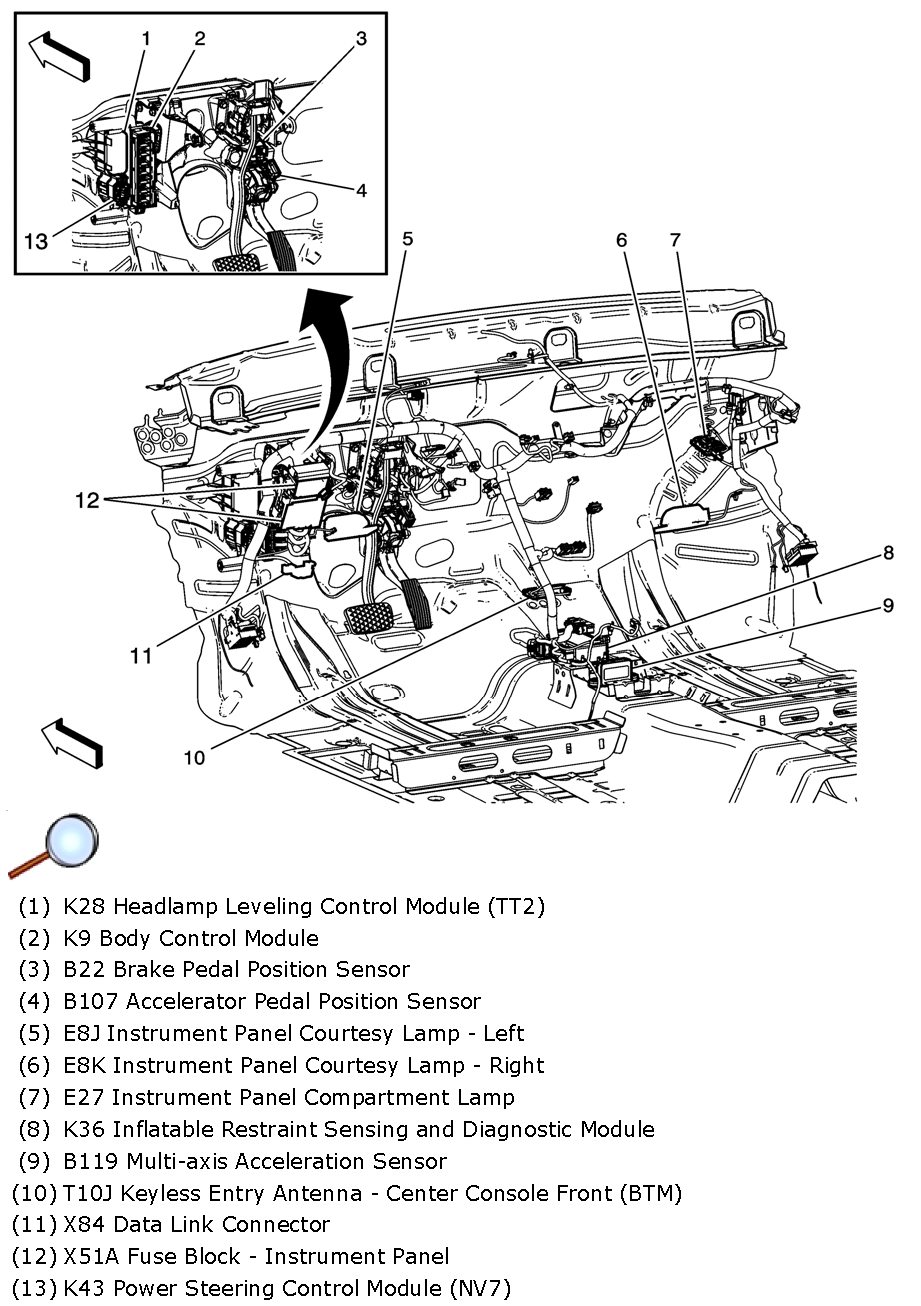

| Fuse Block - Instrument Panel |
Lower left side of dash. See Figure. |

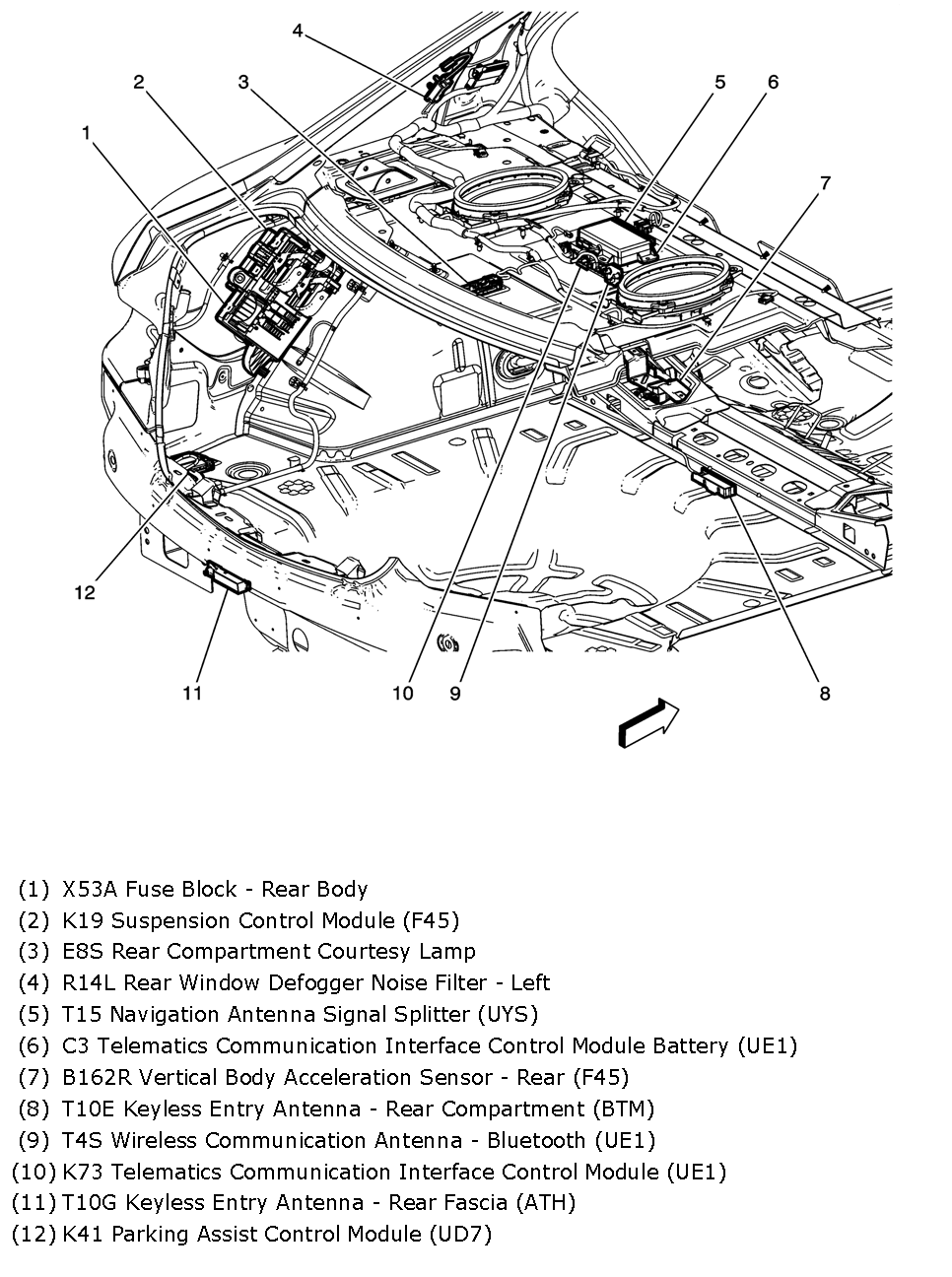

| Fuse Block - Rear Body |
On left rear wheelhouse. See Figure. |
| Fuse Block - Underhood |
Left side of battery. See Figure. |
