Power Steering Pump Flow Control Valve Replacement - On Vehicle

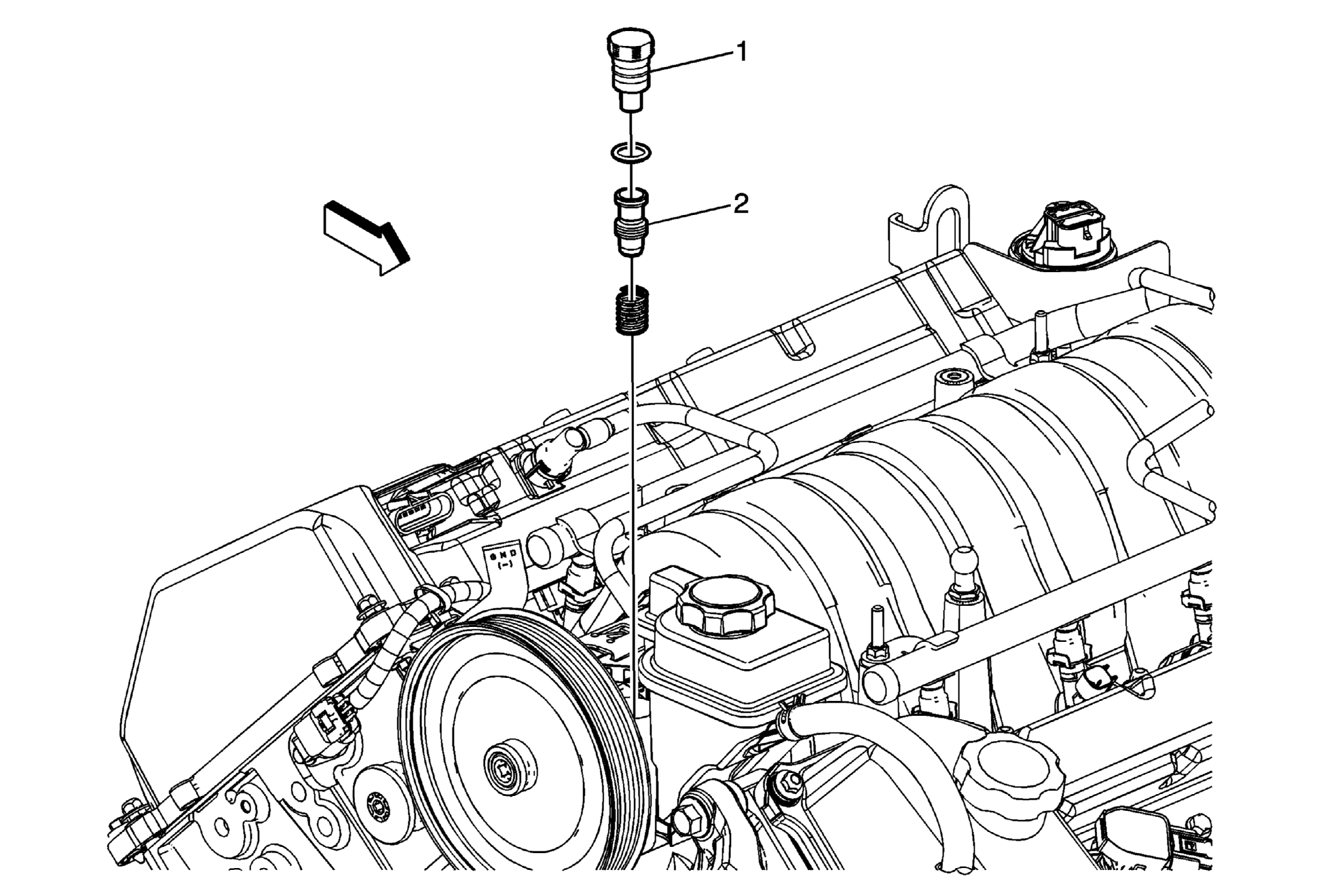

Fig 1: Identifying Power Steering Pump Flow Control Valve
GM2122903Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Remove the power steering pressure hose from the power steering pump. Refer to Power Steering Pressure Pipe/Hose Replacement (LZ9/LGD)  or Power Steering Pressure Pipe/Hose Replacement (L37) .
1 Power Steering Pump Fitting
CAUTION: Refer to Fastener Caution .

Procedure:
Replace the power steering pump fitting O-Ring if needed.

Tighten:  75 N.m (55 lb ft)
2 Power Steering Pump Flow Control Valve
Procedure:
Transfer the power steering pump flow control valve spring if needed.
