Battery Negative Cable Replacement

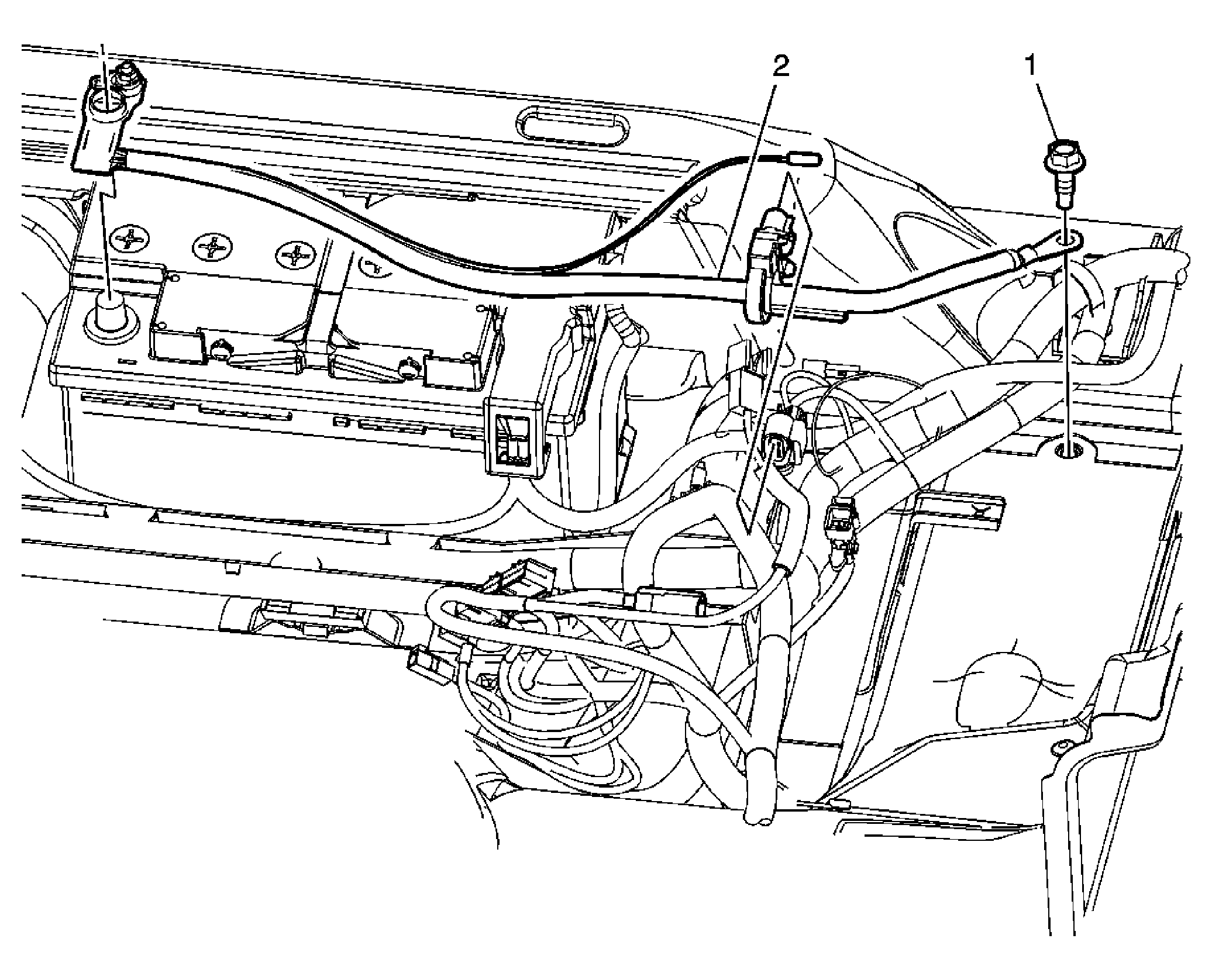

Fig 1: View Of Battery Negative Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
1	Negative Battery Cable Fastener Tighten: 36 N.m (27 lb ft)
2	Negative Battery Cable Procedure: Disconnect the current sensor harness connector
