Ignition Lock Solenoid: Diagrams

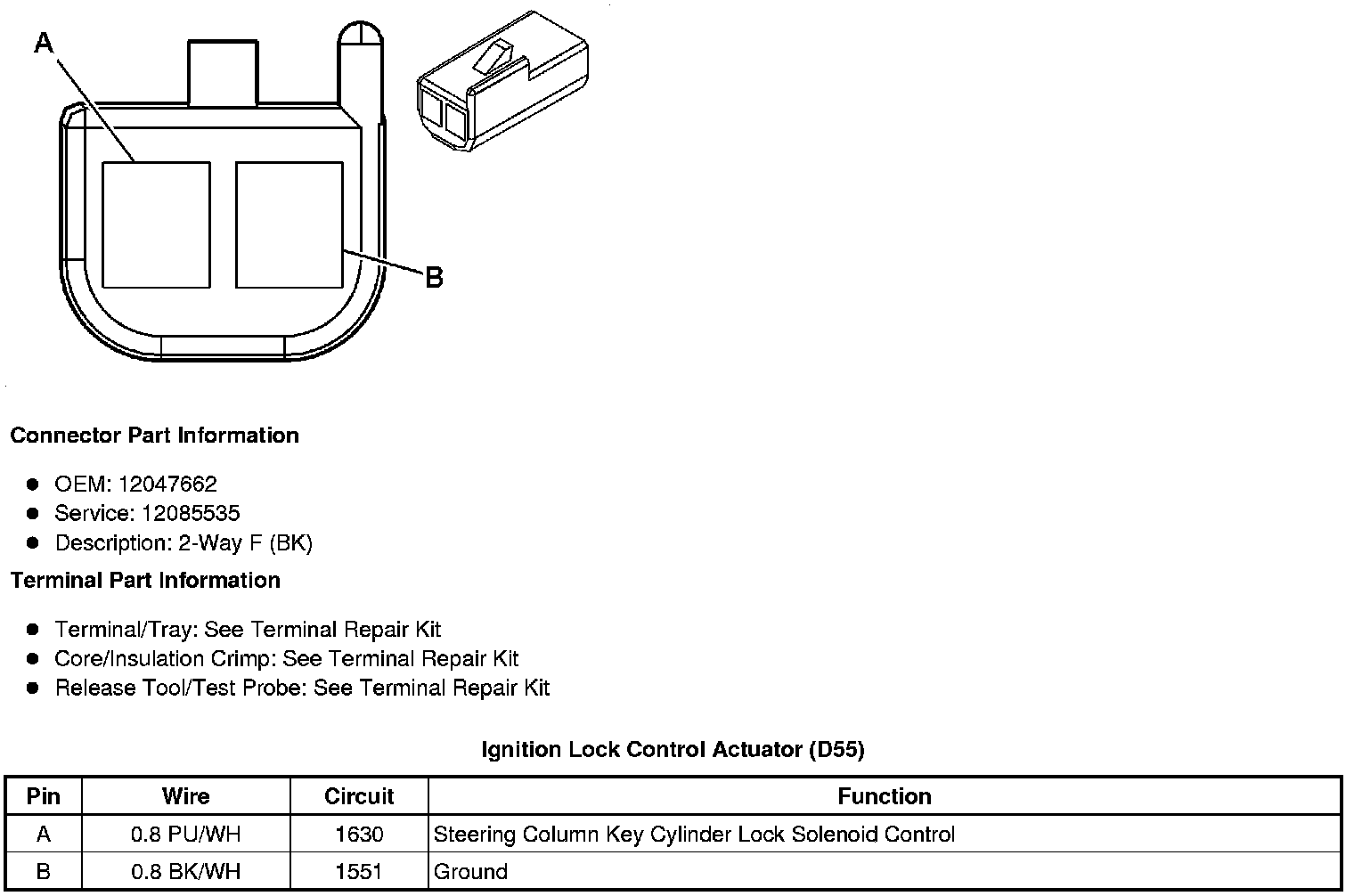

Component Connector End Views

Ignition Lock Control Actuator (D55)
