Map Light




Component Connector End Views

Courtesy/Reading Lamps - Left Rear (DH6)

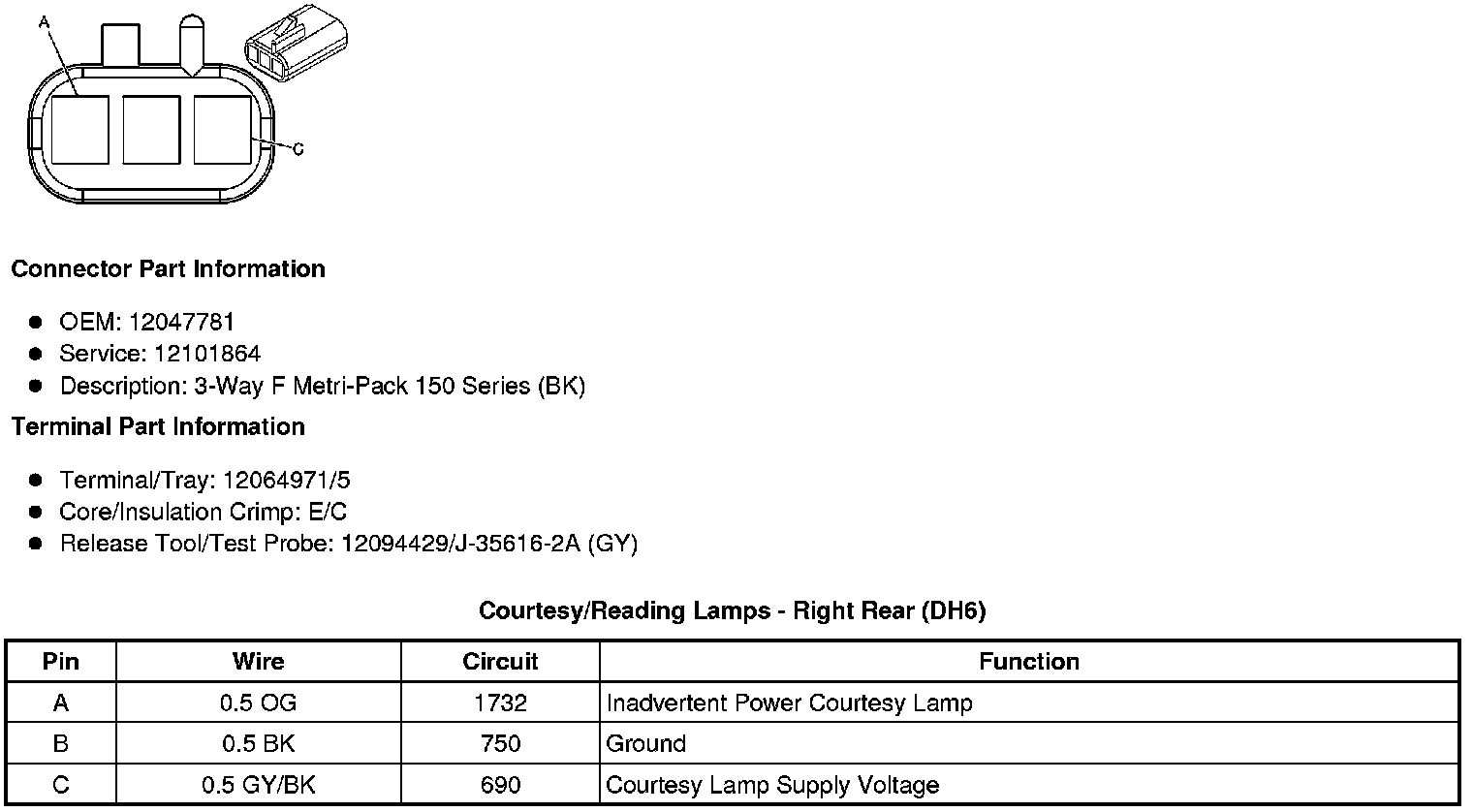

Courtesy/Reading Lamps - Right Rear (DH6)

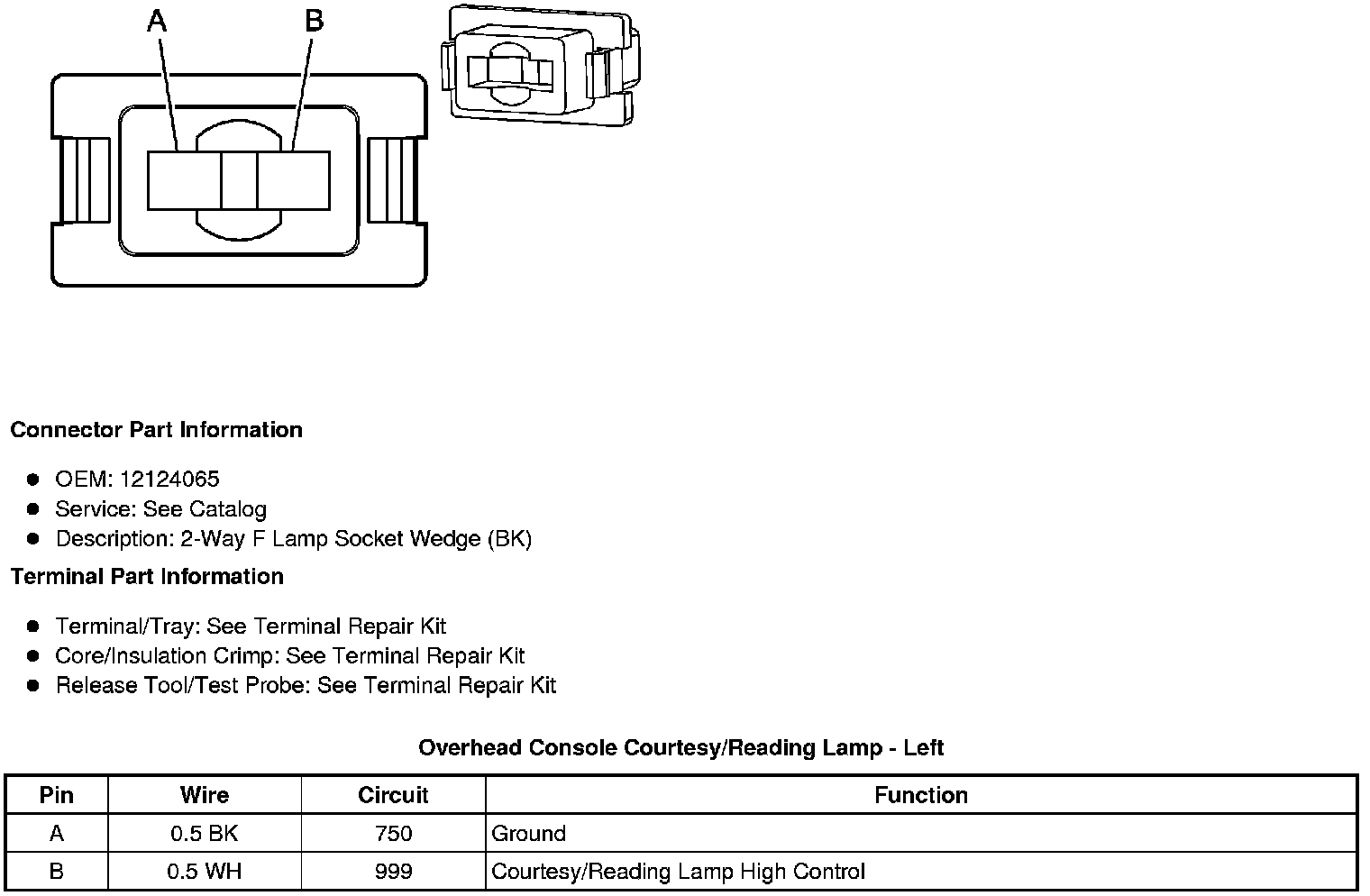

Overhead Console Courtesy/Reading Lamp - Left






Overhead Console Courtesy/Reading Lamp - Right
