Engine Control Module: Diagrams



Component Connector End Views

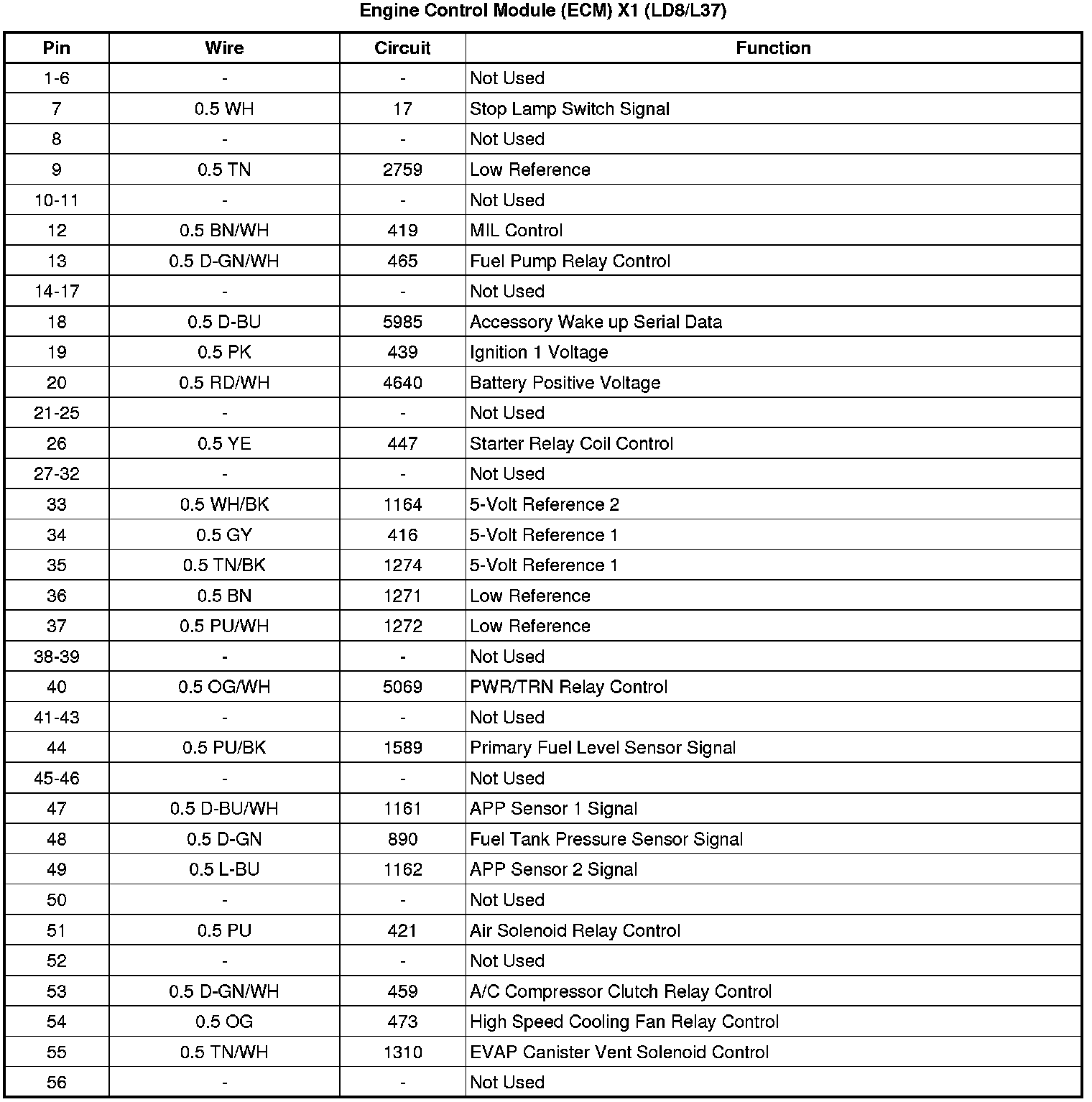

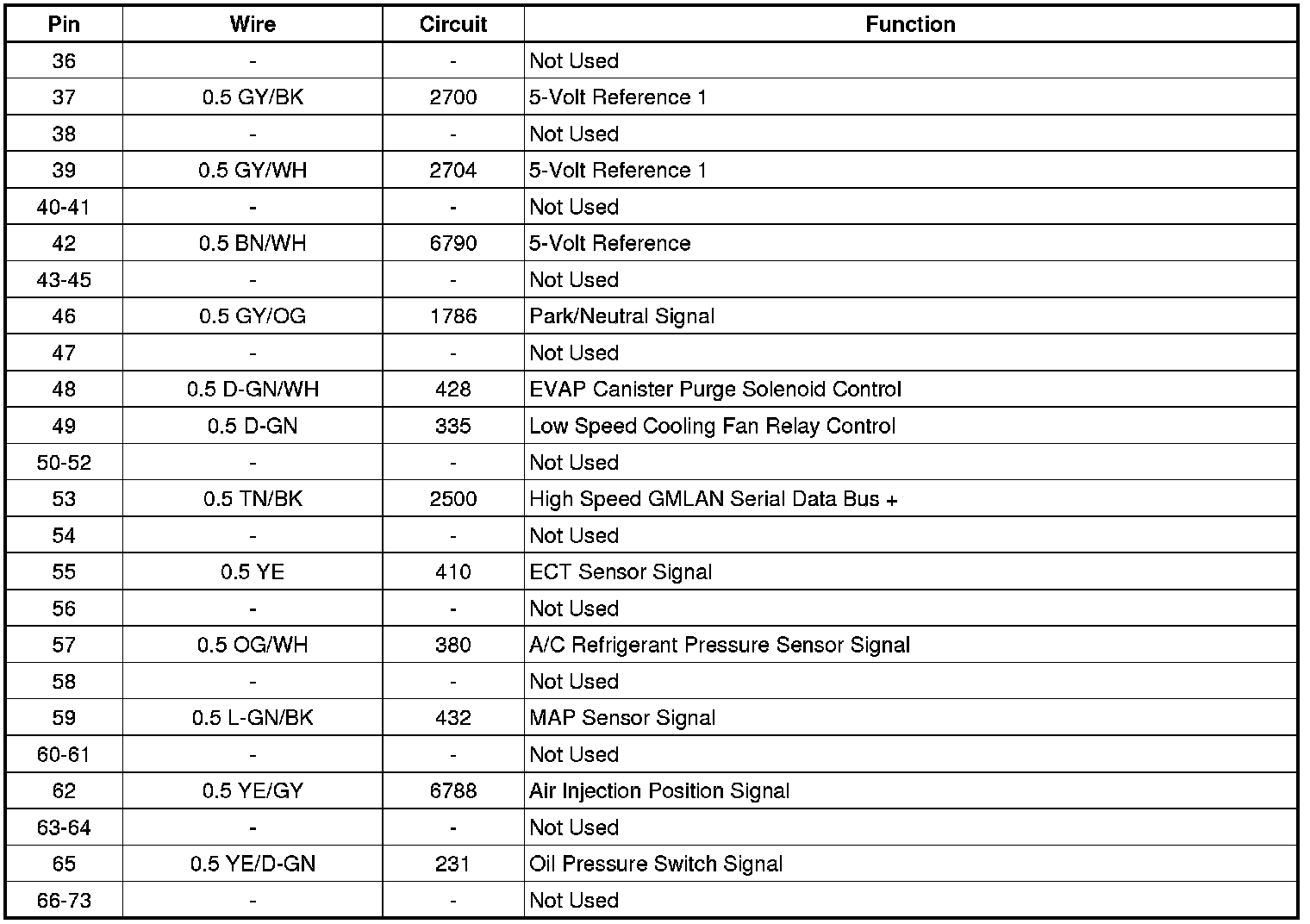

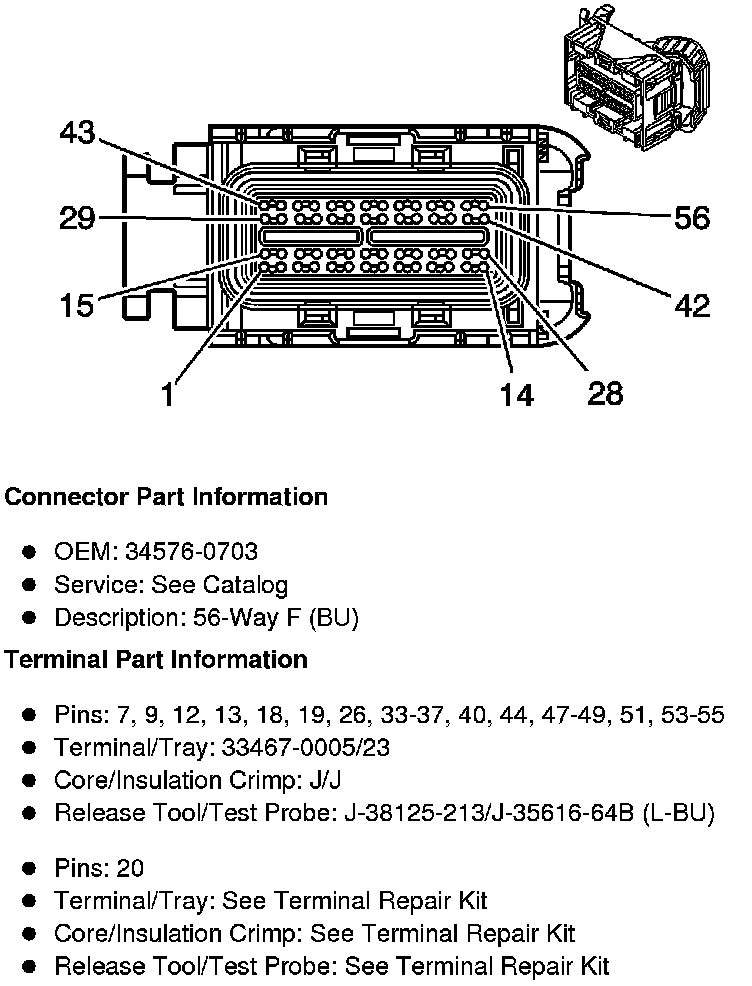

Engine Control Module (ECM) X1 (LD8/L37/4.6L)

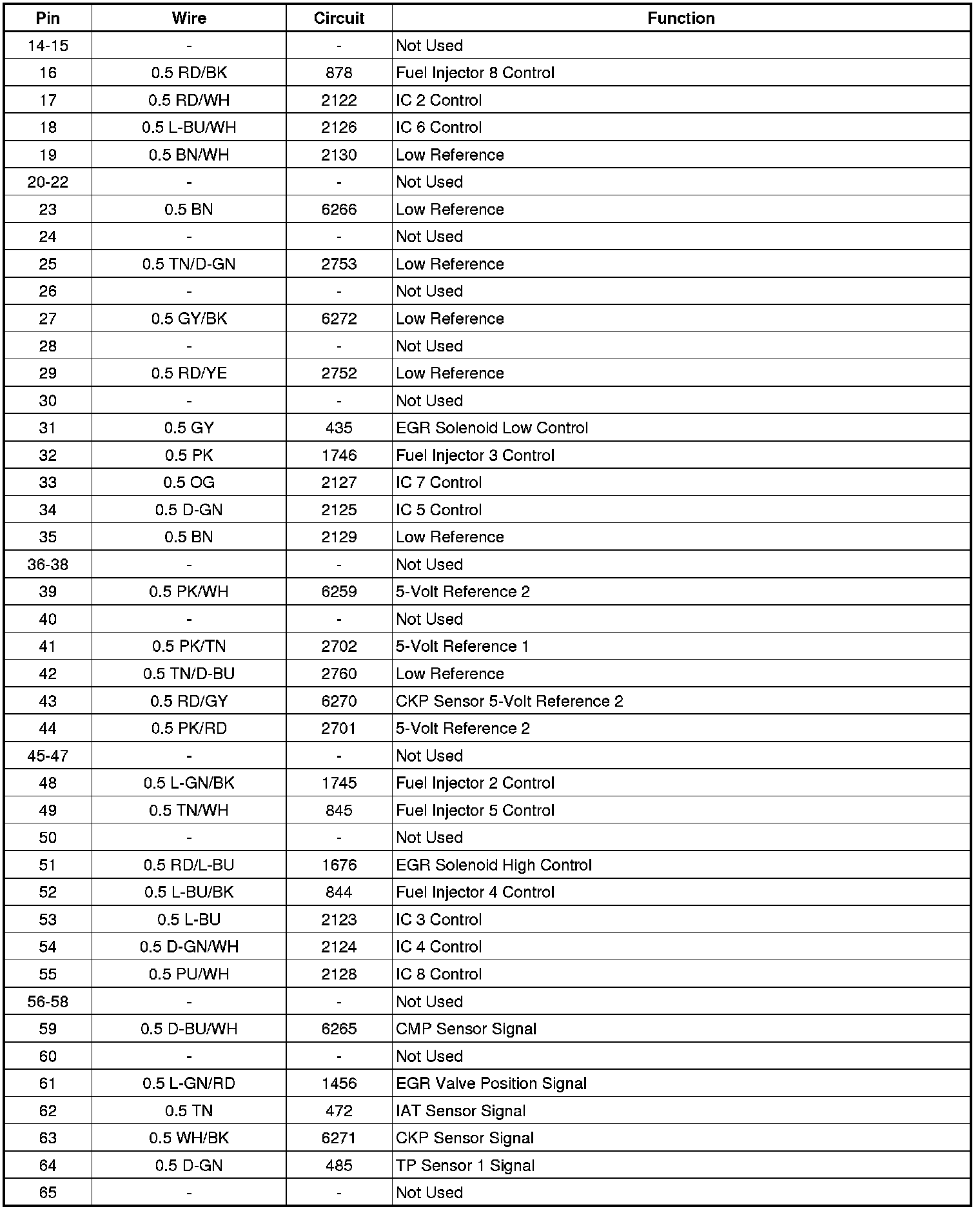

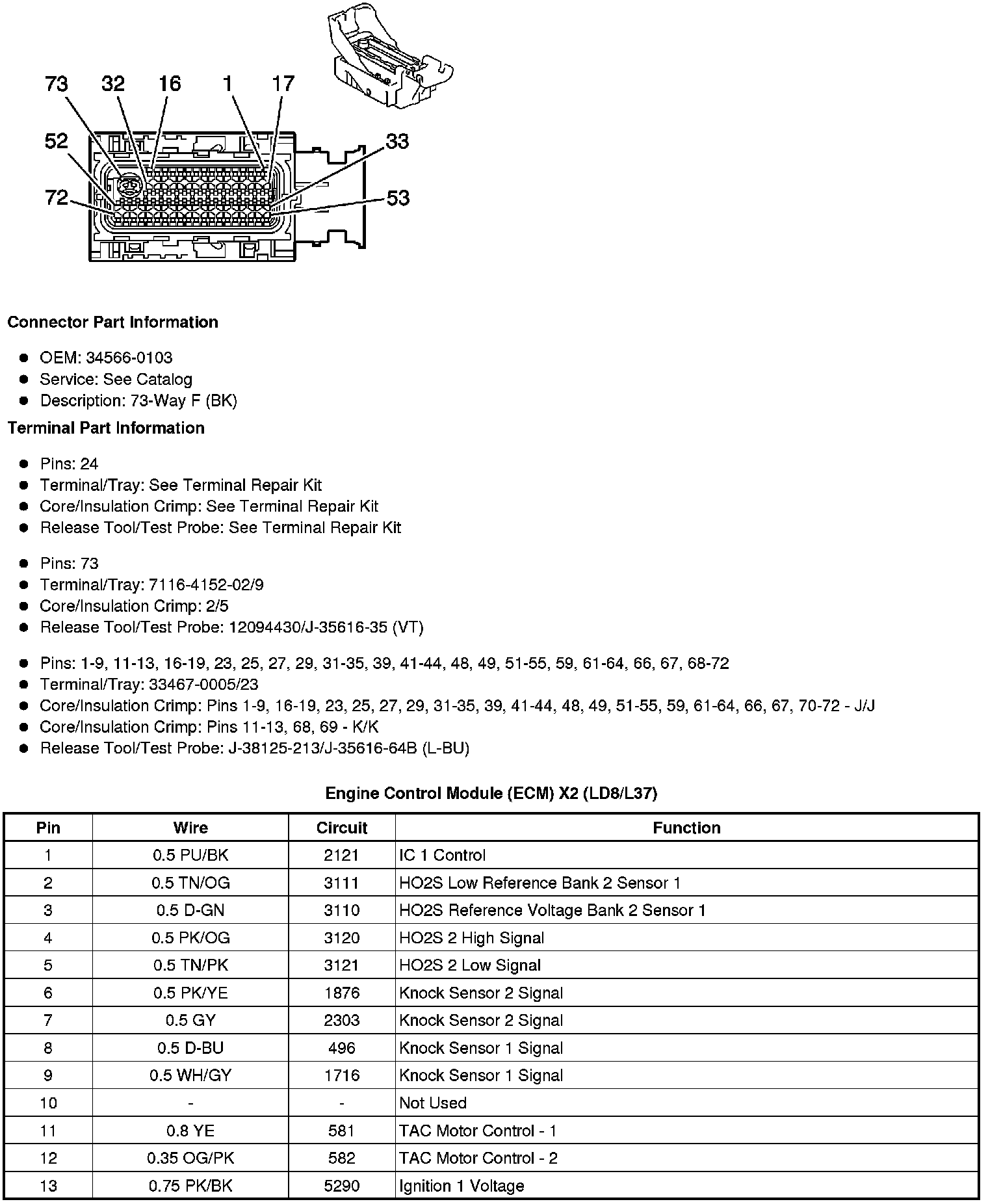

Engine Control Module (ECM) X2 (LD8/L37/4.6L)

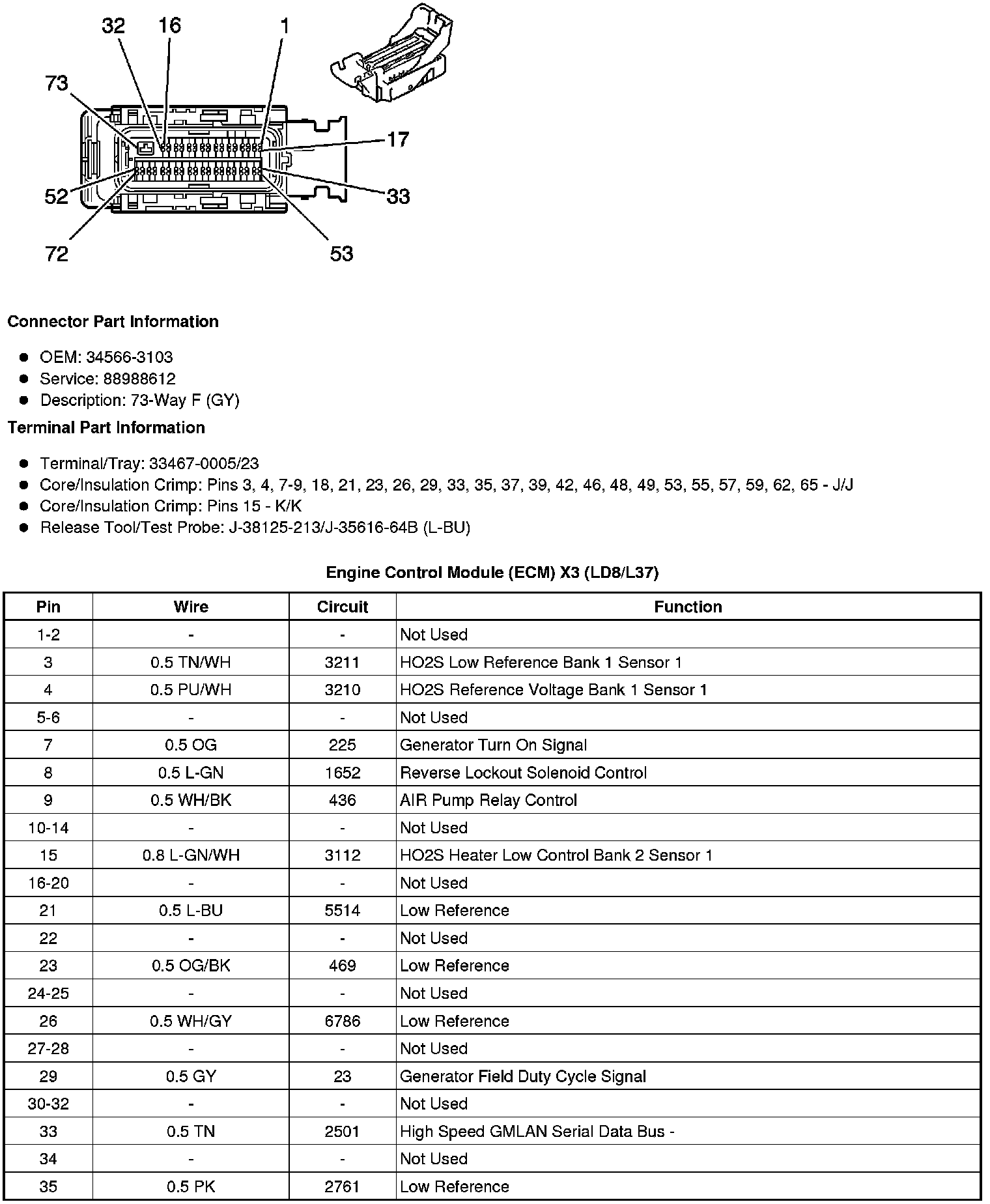

Engine Control Module (ECM) X3 (LD8/L37/4.6L)
