Air Flow Meter/Sensor: Diagrams
Component Connector End Views

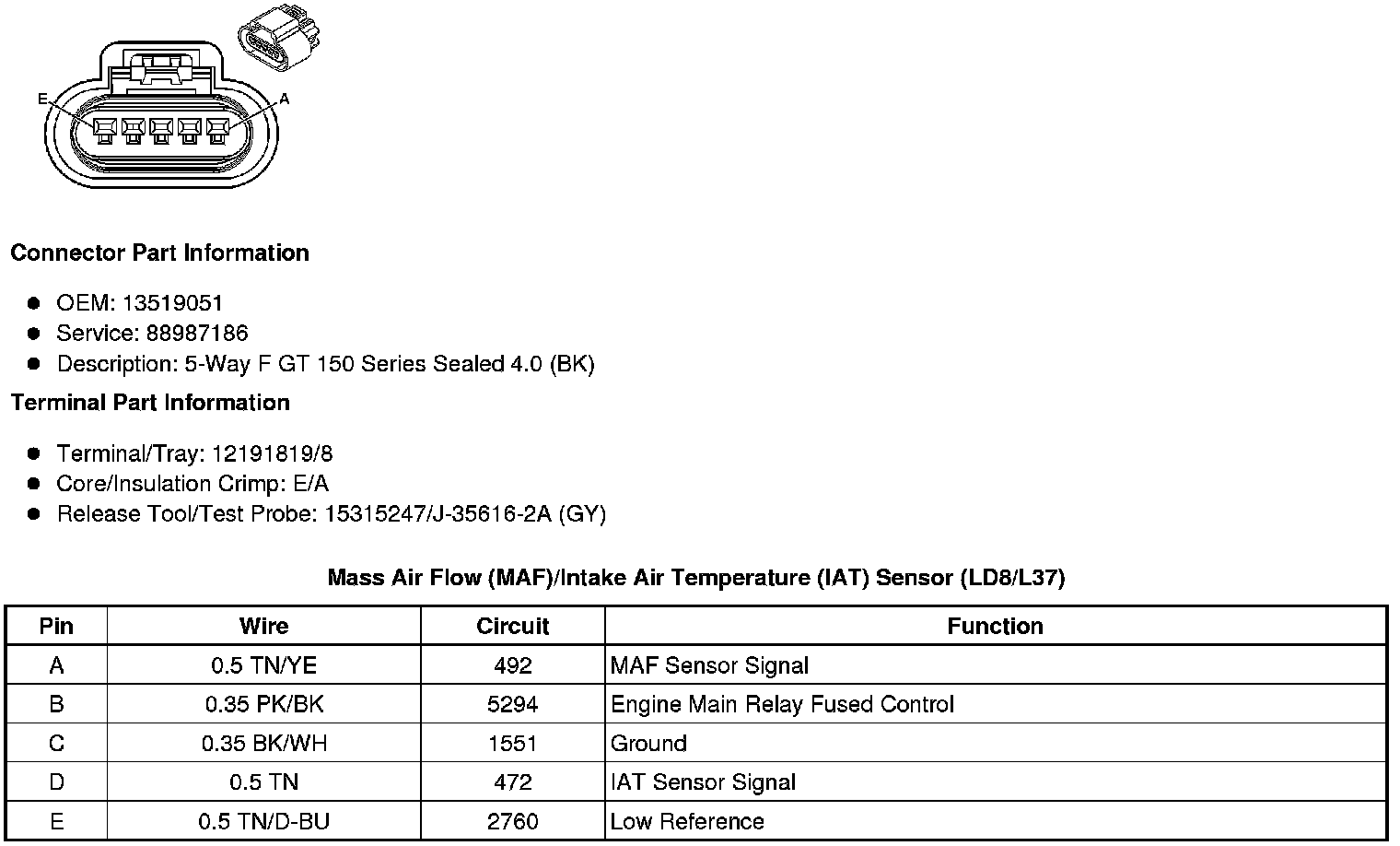

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LD8/L37/4.6L/4.6L)
